Adhesive Backed Engraving Sheet for Equipment IDs
Color Structure:
Smooth matte muted mustard-yellow face / Continuous deep-black core and backSheet Structure:
Two-ply front-engraving plastic with a micro-thin yellow cap; release liner is not a structural plyBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed black information with narrow yellow groove walls and a black core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and reviewed custom sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, reviewed cut blanks, optional pressure-sensitive adhesive backing with release liner, drilling for unbacked orders and OEM color matching. Adhesive brand and performance require order-specific review

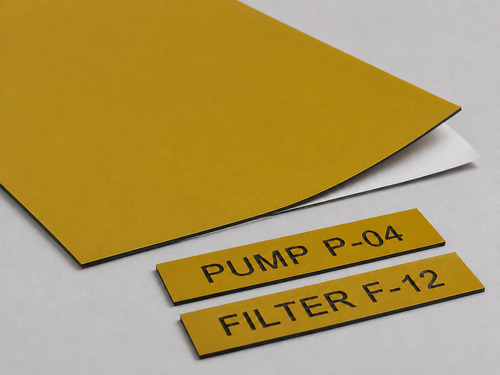

Adhesive Backed Engraving Sheet for Equipment IDs LYS-7039 has a smooth matte muted mustard-yellow face over one continuous deep-black core and black back. Shallow front engraving removes only the micro-thin yellow cap, creating slightly recessed black equipment information with narrow yellow groove walls. An optional pressure-sensitive adhesive backing and removable release liner support flat mounting to suitable prepared equipment surfaces. Typical identification includes pump, filter, motor, cabinet and service-point references. Acrylic-base stock is configured separately for CO2 laser work, while ABS-base stock is configured for CNC and rotary production. LYS-7039 is raw identification material rather than a finished label, installation or compliance service. Yellow and black are physical color attributes only and do not automatically establish a safety-warning meaning.
Model:LYS-7039
Send Inquiry
Product Description
LYSHIRE ADHESIVE EQUIPMENT ID STOCK | LYS-7039
Adhesive Backed Engraving Sheet for Equipment IDs
LYS-7039 combines a smooth matte muted mustard-yellow face with one continuous deep-black core and an optional pressure-sensitive adhesive backing. Professional fabricators can engrave and cut fixed pump, filter, motor, cabinet and service-point identifiers, then mount them flat to suitable prepared equipment surfaces.
Supply OptionOptional Adhesive Backing
Engraved ResultSlight Recess / Black Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Supply Positioning
Fixed Equipment Identification Material
Adhesive Supply Option
Full sheets or reviewed cut blanks can be supplied with optional pressure-sensitive adhesive and a removable release liner for suitable fixed equipment surfaces.
Visible Two-Ply Construction
A hairline mustard-yellow cap is removed to expose the continuous deep-black core. Black edge and engraving details distinguish the result from UV printing or a metal plate.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Release Liner Is Not a Third Structural Layer
The engravable sheet remains a two-ply material: one micro-thin yellow cap over one continuous black core. Any white release liner protects the optional adhesive during handling and is removed before mounting.
Technical Data
LYS-7039 Product Parameters
| Color Structure | Smooth matte muted mustard-yellow face / Continuous deep-black core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic with a micro-thin yellow cap; release liner is not a structural ply |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed black information with narrow yellow groove walls and a black core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and reviewed custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, reviewed cut blanks, optional pressure-sensitive adhesive with release liner, drilling for unbacked orders and OEM color matching. Adhesive performance requires order-specific review. |
Processing
Realistic Large-Machine Equipment ID Production

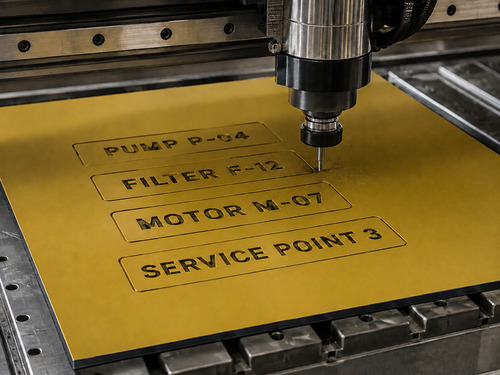

The processing image shows thin sheet stock as the main subject on a realistic large industrial CNC table. Practical pump, filter, motor and service-point wording demonstrates an actual terminal identification workflow.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving, routing and drilling
- Test shallow engraving depth to preserve the continuous black core
- Confirm adhesive compatibility before machining backed stock
Adhesive Selection Depends on the Mounting Surface
Cleanliness, surface energy, texture, coating, curvature, temperature and service conditions affect mounting. The buyer must confirm surface preparation and adhesive specification; no universal peel, outdoor, chemical or temperature performance is implied.
Application Boundary

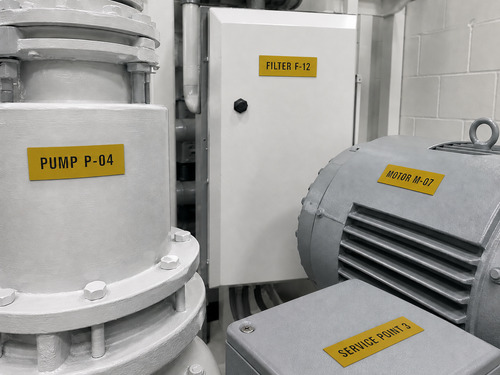

Flat-Mounted Fixed Equipment IDs
Typical identification outputs include:
- Pump and filter reference labels
- Motor and cabinet identifiers
- Service-point and maintenance references
- Fixed unit and component labels
- Mixed custom-cut equipment ID blanks
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies LYS-7039 adhesive-backed engraving sheet to equipment-label fabricators, engraving shops, identification-product manufacturers and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness, dimensions, adhesive and packing requirements. Qualified B2B buyers can request samples to verify shade, surface, engraving contrast and mounting compatibility before bulk purchasing.
For an accurate quotation, provide sheet size, quantity, thickness, processing method, adhesive requirement, mounting-surface details, packing preference and destination market.
Buyer Questions
Frequently Asked Questions
How is LYS-7039 different from LYS-8807?
LYS-7039 is positioned as optional adhesive-backed material for fixed equipment IDs. LYS-8807 retains the industrial safety-warning route. Yellow and black are physical attributes here and do not automatically establish a warning function.
Is a specific adhesive supplied?
Adhesive backing is optional and must be selected against the mounting surface and service conditions. A brand or universal performance claim is not assigned unless confirmed in the order specification.
Can LYS-7039 be laser and rotary processed?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
What surface preparation is required?
The mounting face should be clean, dry and compatible with the selected adhesive. The buyer must validate cleaning method, surface texture, coating, curvature and operating conditions before production installation.
AI-Generated Image for Application Reference. Final shade, thickness, sheet dimensions, engraved depth, adhesive specification, surface preparation and mounting configuration must be confirmed by physical sample and order specification.
