Adhesive Backed Engraving Sheet
Color Structure:
Green Face / White CoreAdhesive Type:
3M 468MPMaterial Options:
PMMA / Acrylic or ABSProcessing Compatibility:
PMMA / Acrylic: CO2 Laser Engraving & Laser Cutting; ABS: CNC / Rotary EngravingThickness:
0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0 mmStandard Size:
600 × 1200 mmCustom Size:
AvailableSurface Finish:
MatteApplications:
Industrial Labels / Equipment Identification / Nameplates / Signage

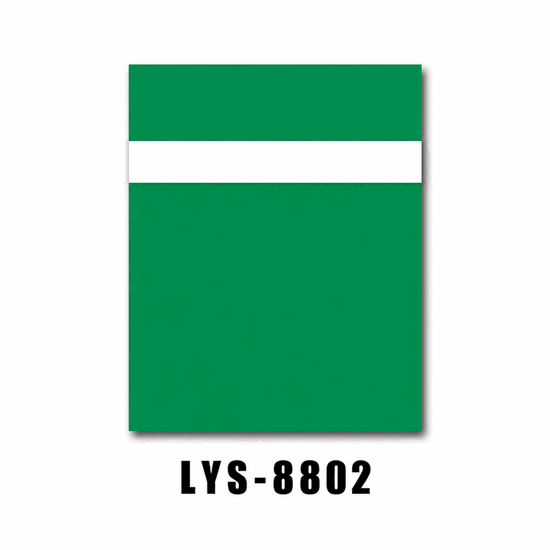

LYSHIRE Adhesive Backed Engraving Sheet LYS-8802 is a two-ply engraving material with a green face and white core, available with 3M 468MP adhesive backing for convenient installation on suitable flat surfaces. It is designed for industrial labels, equipment identification, control panels, nameplates and signage applications, with material and processing configurations selected according to project requirements.
Model:LYS-8802
Send Inquiry
Product Description
LYSHIRE ADHESIVE BACKED ENGRAVING SHEET | LYS-8802
Adhesive Backed Engraving Sheet
LYS-8802 is a two-ply engraving sheet with a green face and white core, available with optional 3M 468MP adhesive backing for efficient installation on suitable flat surfaces. It is designed for industrial labels, equipment identification, control panels, nameplates and professional signage applications.
Color Structure Green Face / White Core
Adhesive 3M 468MP Optional
Supply Format Full Sheet / Cut Parts
Adhesive Backing
Optional 3M 468MP for Professional Installation

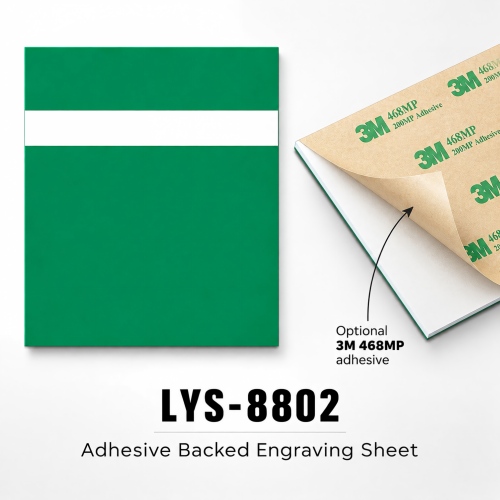

LYS-8802 can be supplied with 3M 468MP adhesive backing laminated to the rear surface of the engraving sheet. During installation, the release liner is peeled away while the adhesive layer remains on the back of the sheet, allowing the finished label or nameplate to be applied directly to a suitable clean and smooth mounting surface.
Adhesive-backed configurations are suitable for projects where mechanical fasteners are not required or where clean, efficient installation is preferred for industrial identification, equipment panels, control cabinets, nameplates and signage.
Material & Processing Options
PMMA/Acrylic or ABS Configurations
PMMA / Acrylic Version
PMMA/acrylic configurations are suitable for CO2 laser engraving and laser cutting. CNC cutting and drilling can also be used where required.
ABS Version
ABS configurations are intended for CNC and rotary engraving, routing and drilling where mechanical machining is preferred.
Adhesive-Backed Supply
Both material systems can be supplied according to project requirements, with optional 3M 468MP adhesive backing, custom sheet sizes and cut-part specifications.
Technical Data
LYS-8802 Product Parameters
| Model | LYS-8802 |
|---|---|
| Color Structure | Green Face / White Core |
| Adhesive Type | 3M 468MP Optional |
| Material Options | PMMA / Acrylic or ABS |
| Processing Compatibility | PMMA / Acrylic: CO2 Laser Engraving & Laser Cutting; ABS: CNC / Rotary Engraving |
| Available Thicknesses | 0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0 mm; custom 2.0 / 2.5 mm available |
| Standard Size | 600 × 1200 mm |
| Other Sizes | 610 × 1220 mm / 600 × 600 mm / 610 × 610 mm / 305 × 610 mm / 300 × 600 mm / Custom Sizes |
| Surface Finish | Matte |
| Applications | Industrial Labels / Equipment Identification / Control Panels / Nameplates / Signage |
Application
Equipment Nameplates and Identification Labels

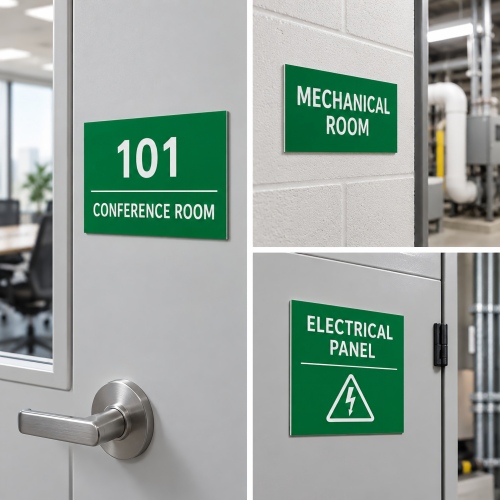

Adhesive-backed engraving sheets can be fabricated into equipment labels, machine identification plates and maintenance markers. The engraved white core provides strong contrast against the green face for clear industrial identification.
The optional 3M 468MP backing allows finished labels to be mounted directly onto suitable equipment housings, panels and other smooth surfaces.
Industrial Identification
Machine, Pump and Facility Identification

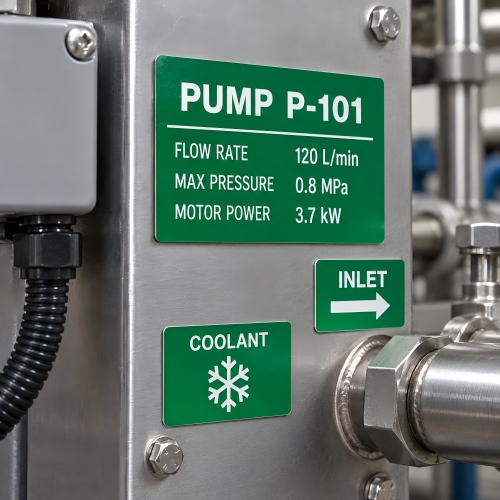

LYS-8802 can be fabricated into pump labels, machine identification, equipment tags, directional markers and facility information signs. Custom text, symbols, arrows and equipment references can be engraved according to project requirements.
Adhesive-backed supply is particularly useful for repeat identification labels where efficient installation and consistent positioning are required.
Control Panels
Control Cabinet and Panel Labels

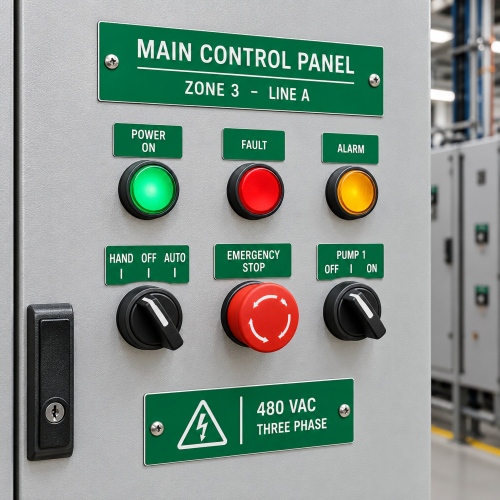

The green and white engraving contrast is suitable for control-panel legends, cabinet labels, operator identification and related electrical or mechanical equipment marking.
Depending on the selected material version, labels can be produced by laser or mechanical engraving and supplied with 3M 468MP adhesive backing for direct installation on suitable panel surfaces.
Adhesive Installation Notes
- Apply the finished label to a clean, dry and suitable flat surface.
- Remove dust, oil, moisture and other surface contamination before installation.
- Confirm the mounting substrate and service environment before bulk production.
- Adhesive performance depends on substrate type, surface condition, temperature and application pressure.
- Final material and adhesive performance should be evaluated for demanding applications where necessary.
B2B Supply
Custom Adhesive-Backed Engraving Sheet Supply
LYSHIRE supplies adhesive-backed engraving materials to engraving-material distributors, industrial-label producers, sign manufacturers, equipment builders and OEM project buyers. Color combinations, material type, thickness, sheet size, cut-part requirements and 3M 468MP adhesive backing can be configured according to project requirements.
Standard MOQ is 500 sheets with mixed colors available. Qualified B2B buyers can request samples for material, engraving and adhesive evaluation before bulk purchasing.
Buyer Questions
Frequently Asked Questions
What adhesive backing is available for LYS-8802?
LYS-8802 can be supplied with optional 3M 468MP adhesive backing. During installation, the release liner is removed while the adhesive layer remains laminated to the rear surface of the engraving sheet.
Can LYS-8802 be supplied as PMMA/acrylic or ABS?
Yes. PMMA/acrylic and ABS versions can be produced according to the required processing method and project specification.
Which processing methods are suitable?
PMMA/acrylic versions are suitable for CO2 laser engraving and laser cutting, with CNC cutting and drilling also supported. ABS versions are intended for CNC and rotary engraving, routing and drilling.
Can other colors also be supplied with adhesive backing?
Yes. Adhesive backing is not limited to LYS-8802. Other LYSHIRE color combinations can also be supplied with 3M 468MP adhesive backing according to order requirements.
Can custom sizes and cut parts be supplied?
Yes. Standard sheets, custom sizes and cut-to-size parts can be discussed according to the required material, thickness, quantity and processing method.
