Adhesive Backed Nameplate Material
Color Structure:
White Face / Black CoreAdhesive Type:
3M 468MPMaterial Options:
PMMA / Acrylic or ABSProcessing Compatibility:
PMMA / Acrylic: CO2 Laser Engraving & Laser Cutting; ABS: CNC / Rotary EngravingThickness:
0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0 mmStandard Size:
600 × 1200 mmCustom Size:
AvailableSurface Finish:
MatteApplications:
Equipment Nameplates / Machine Labels / Control Cabinets / Asset Identification
LYSHIRE Adhesive Backed Nameplate Material LYS-8817 features a white face and black core with optional 3M 468MP adhesive backing for efficient installation on suitable flat surfaces. It is designed for equipment nameplates, machine identification, control cabinets, asset labels and industrial signage, with PMMA/acrylic or ABS configurations available according to the required processing method.

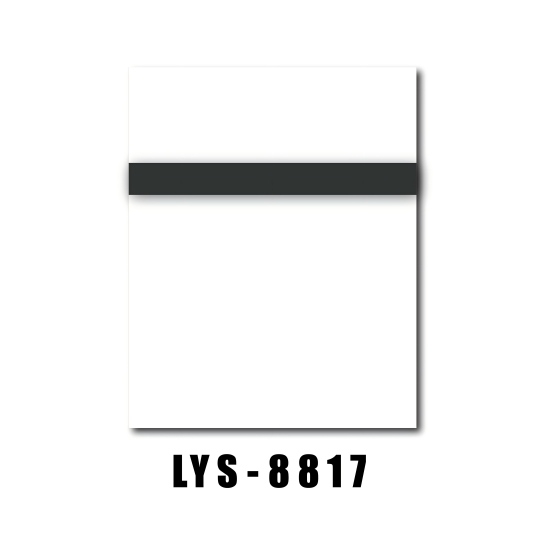

Model:LYS-8817
Send Inquiry
Product Description
LYSHIRE ADHESIVE BACKED NAMEPLATE MATERIAL | LYS-8817
Adhesive Backed Nameplate Material
LYS-8817 is a two-ply engraving sheet with a white face and black core, available with optional 3M 468MP adhesive backing for efficient installation on suitable flat surfaces. The high-contrast structure is designed for equipment nameplates, machine identification, control cabinets, asset labels and industrial signage.
Color Structure White Face / Black Core
Adhesive 3M 468MP Optional
Primary Use Nameplates / Equipment ID

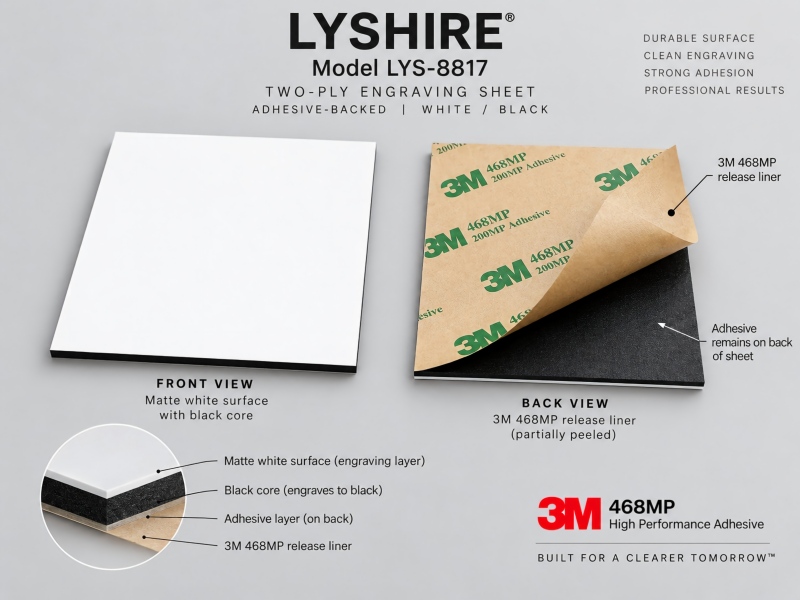

Adhesive Backing
Optional 3M 468MP for Nameplate Installation
LYS-8817 can be supplied with 3M 468MP adhesive backing laminated to the rear surface of the engraving sheet. During installation, the release liner is removed while the adhesive layer remains on the black rear surface, allowing the finished nameplate or identification label to be applied directly to a suitable clean and smooth mounting surface.
Adhesive-backed supply is useful for equipment housings, machine panels, cabinets and other applications where a clean installation without visible mechanical fasteners is preferred.
Material & Processing Options
PMMA/Acrylic or ABS Configurations
PMMA / Acrylic Version
PMMA/acrylic configurations are suitable for CO2 laser engraving and laser cutting. CNC cutting and drilling can also be used where required.
ABS Version
ABS configurations are intended for CNC and rotary engraving, routing and drilling where mechanical machining is preferred.
Adhesive-Backed Supply
Both material systems can be supplied according to project requirements with optional 3M 468MP adhesive backing, custom sizes and cut-part specifications.
Technical Data
LYS-8817 Product Parameters
| Model | LYS-8817 |
|---|---|
| Color Structure | White Face / Black Core |
| Adhesive Type | 3M 468MP Optional |
| Material Options | PMMA / Acrylic or ABS |
| Processing Compatibility | PMMA / Acrylic: CO2 Laser Engraving & Laser Cutting; ABS: CNC / Rotary Engraving |
| Available Thicknesses | 0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0 mm; custom 2.0 / 2.5 mm available |
| Standard Size | 600 × 1200 mm |
| Other Sizes | 610 × 1220 mm / 600 × 600 mm / 610 × 610 mm / 305 × 610 mm / 300 × 600 mm / Custom Sizes |
| Surface Finish | Matte |
| Applications | Equipment Nameplates / Machine Labels / Control Cabinets / Asset Identification / Signage |

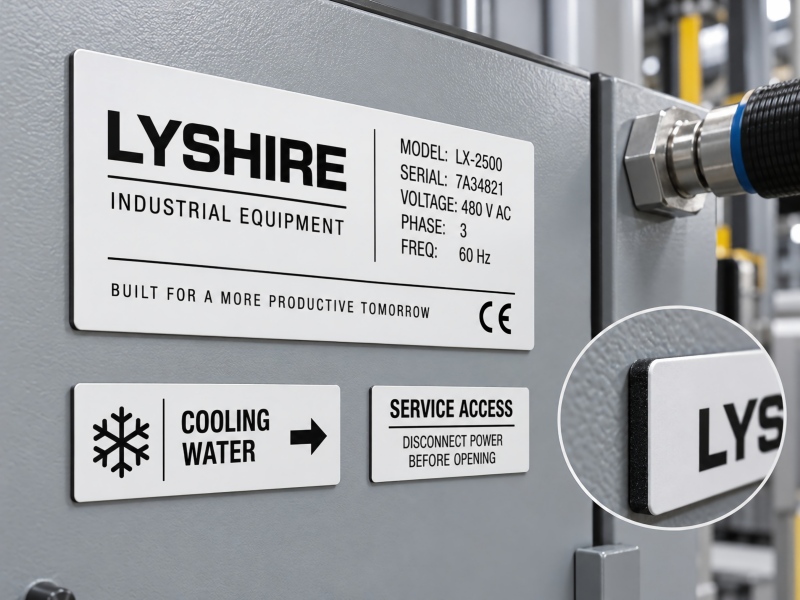

Equipment Nameplates
Machine and Equipment Identification
The white face and black engraved core provide clear contrast for equipment nameplates, machine identification plates and technical labels. LYS-8817 can be fabricated with model references, serial information, operating data and custom industrial identification content.
The optional 3M 468MP backing allows finished nameplates to be installed directly on suitable equipment surfaces where mechanical fasteners are not required.

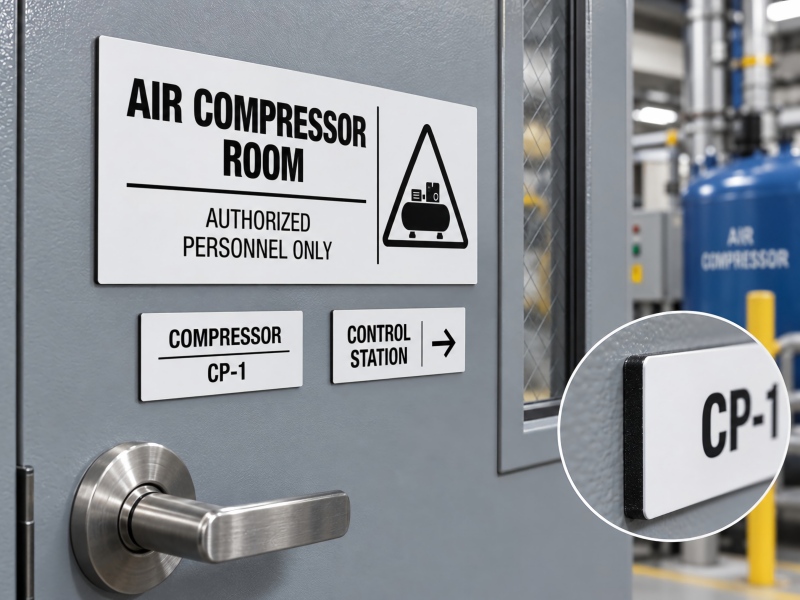

Industrial Identification
Equipment Labels and Service Identification
LYS-8817 is suitable for equipment labels, service markers, process identification and facility information. Custom text, arrows, symbols and equipment references can be engraved according to project requirements.
Adhesive-backed supply is useful for repeat industrial labels where efficient installation and consistent positioning are required.

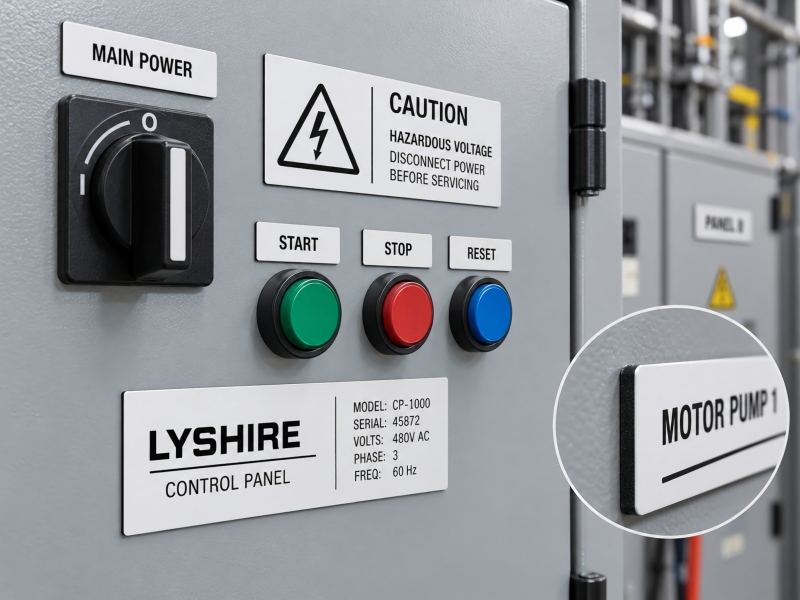

Cabinets & Assets
Control Cabinet and Asset Identification
The white and black engraving structure is suitable for cabinet labels, operator identification, asset tags and equipment-reference plates where clean high-contrast information is required.
Depending on the selected material version, labels can be produced by laser or mechanical engraving and supplied with optional 3M 468MP adhesive backing for direct mounting on suitable surfaces.
Adhesive Installation Notes
- Apply the finished nameplate or label to a clean, dry and suitable flat surface.
- Remove dust, oil, moisture and other surface contamination before installation.
- Confirm the mounting substrate and service environment before bulk production.
- Adhesive performance depends on substrate type, surface condition, temperature and application pressure.
- Final material and adhesive performance should be evaluated for demanding applications where necessary.
B2B Supply
Adhesive-Backed Nameplate Material Supply
LYSHIRE supplies adhesive-backed nameplate materials to industrial-label producers, equipment builders, machine manufacturers, engraving-material distributors, sign fabricators and OEM project buyers. Material type, thickness, sheet size, cut-part requirements and 3M 468MP adhesive backing can be configured according to project requirements.
Standard MOQ is 500 sheets with mixed colors available. Qualified B2B buyers can request samples for material, engraving and adhesive evaluation before bulk purchasing.
Buyer Questions
Frequently Asked Questions
What adhesive backing is available for LYS-8817?
LYS-8817 can be supplied with optional 3M 468MP adhesive backing. During installation, the release liner is removed while the adhesive layer remains laminated to the black rear surface of the engraving sheet.
Can LYS-8817 be supplied as PMMA/acrylic or ABS?
Yes. PMMA/acrylic and ABS versions can be produced according to the required processing method and project specification.
Which processing methods are suitable?
PMMA/acrylic versions are suitable for CO2 laser engraving and laser cutting, with CNC cutting and drilling also supported. ABS versions are intended for CNC and rotary engraving, routing and drilling.
Can LYS-8817 be supplied as cut nameplate blanks?
Yes. Standard sheets, custom sizes and cut-to-size nameplate blanks can be discussed according to required dimensions, thickness, quantity and processing method.
Can other LYSHIRE colors also be supplied with 3M 468MP?
Yes. Adhesive backing can be supplied with other LYSHIRE color combinations according to order requirements.
B2B ENGRAVING MATERIAL SUPPLY
Need Nameplate Material for Your Project?
Send us your required color, material, thickness, sheet size, quantity, processing method and application. LYSHIRE can recommend the appropriate engraving sheet configuration and prepare samples or a quotation for evaluation.
Send Inquiry Hot Tags: adhesive backed nameplate material, self adhesive engraving plastic, 3M 468MP nameplate material, white black engraving sheet, industrial nameplate material, adhesive backed equipment label, engraving laminate with adhesive
