Asset Tag Engraving Material
Color Structure:
Smooth matte muted-berry face / Continuous white core and backSheet Structure:
Two-ply front-engraving stock with a micro-thin colored capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Shallow recessed white asset numbers, equipment IDs, location references, text and simple codesAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review

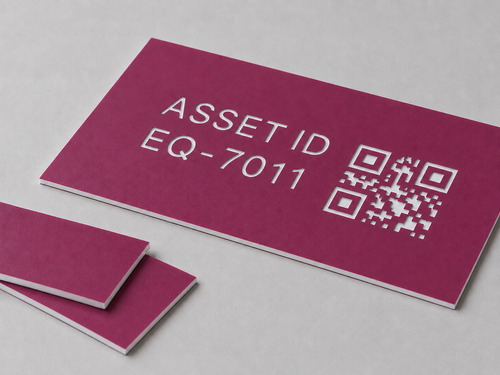

Asset Tag Engraving Material LYS-7011 has a smooth matte muted-berry face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white asset numbers, inventory locations, equipment references, text and simple tracking codes without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. The page serves industrial-identification producers, equipment manufacturers, engraving shops and material distributors purchasing raw stock for asset tags, inventory plates and equipment-tracking programs. The product does not by itself provide database linkage, calibration status, tracking software or regulatory compliance.
Model:LYS-7011
Send Inquiry
Product Description
LYSHIRE ASSET IDENTIFICATION MATERIAL | LYS-7011
Asset Tag Engraving Material
Asset Tag Engraving Material LYS-7011 is a two-ply fabrication sheet with a smooth matte muted-berry face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals recessed white asset numbers, inventory locations, equipment references and tracking codes without printed ink or paint fill. It is supplied as raw sheets and cut blanks for professional asset-identification production.
Material FormatTwo-Ply Sheet Stock
Engraved ResultPermanent White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Asset Tags and Equipment Tracking Plates
Readable Permanent Identification
The white core produces clear recessed asset numbers, rack references, equipment IDs and simple machine-readable layouts without adding vinyl lettering or surface ink.
Full Sheets or Repeat Blanks
Distributors and fabricators can order standard sheets, repeat rectangular blanks, drilled profiles or custom-cut parts for scheduled identification programs.
Separate Processing Bases
Specify an acrylic base for CO2 laser production or an ABS base for CNC and rotary fabrication. These are separate order configurations rather than one universal substrate.
Material Supply, Not a Finished Asset-Management System
LYS-7011 provides process-ready material for buyers producing asset tags, inventory-location plates, calibration-station identifiers and equipment tracking labels. LYSHIRE supplies sheets and optional blanks; numbering logic, database linkage, code verification, mounting and site-specific identification rules remain the responsibility of the fabricator and end user.
Technical Data
LYS-7011 Product Parameters
| Color Structure | Smooth matte muted-berry face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving stock with a micro-thin colored cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Shallow recessed white asset numbers, equipment IDs, location references, text and simple codes |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Supply and Options | Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review |
Processing
Choose the Base for the Identification Workflow

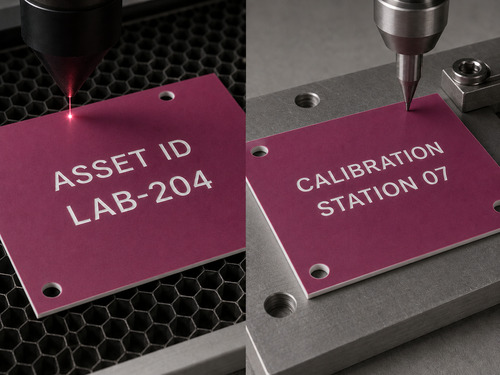

LYS-7011 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The face/core appearance can be coordinated across both routes, but the correct base must be selected before production.
- Use the acrylic configuration for CO2 laser asset tags and vector-cut blanks
- Use the ABS configuration for CNC or rotary engraving, drilling and mechanical profiling
- Test power, speed, cutter geometry, code size and engraving depth before batch production
- Verify every QR, barcode or database-linked identifier after fabrication
Application Images Are Fabrication References
Asset wording, numbering format, code content, hole position, adhesive selection and installation method must be confirmed for the buyer's own workflow. The material does not by itself provide tracking software, database integration, calibration status or regulatory compliance.

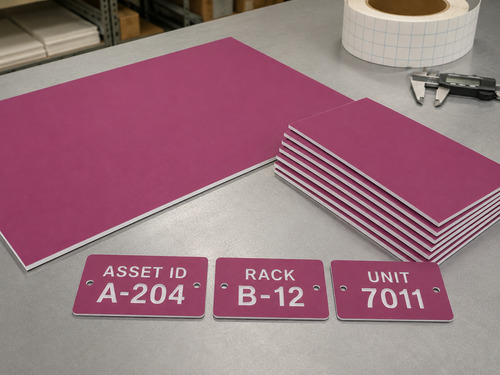

B2B Supply Formats
Full Sheets, Cut Blanks and Repeat Identification Programs
LYS-7011 supports engraving shops, industrial-identification suppliers, equipment manufacturers and distributors purchasing raw material for repeat production. Available supply formats can include:
- Standard 600 × 1200 mm sheets for workshop and distributor inventory
- 305 × 610 mm, 610 × 1220 mm and project-specific cut sizes
- Rectangular, rounded-corner, drilled and custom-profile tag blanks
- Optional adhesive backing for approved installation conditions
- Physical sample approval and repeat OEM color programs
Wholesale Material Supply
Engraving Material for Professional Asset-Tag Fabricators
LYSHIRE supplies LYS-7011 to industrial-identification producers, equipment manufacturers, engraving shops and material distributors. Qualified B2B buyers can request samples to confirm the matte face, white reveal, sheet thickness and selected acrylic or ABS processing route before bulk purchasing.
For an accurate quotation, provide sheet size, thickness, quantity, processing method, tag dimensions, hole or adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7011?
Shallow engraving removes the micro-thin matte colored face and reveals the continuous white core as recessed asset numbers, location references, equipment IDs, text and simple codes.
Is LYS-7011 supplied as finished and serialized asset tags?
No. This page covers raw sheet stock and optional cut blanks. Variable numbering, database assignment, code generation, verification and installation remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Can adhesive backing and drilled blanks be supplied?
They can be reviewed as order options. State the tag dimensions, mounting surface, operating environment, hole pattern and adhesive requirement before quotation.
Application images are AI-assisted visual references created to explain material structure, processing routes and possible fabrication uses. Final shade, thickness, dimensions, engraved detail and mounting configuration must be confirmed by physical sample and order specification.
