Brushed Black Gold Architectural Sign Substrate
Color Structure:
Near-black vertical brushed metallic-effect face / Continuous warm-gold core and backSheet Structure:
Two-ply front-engraving plastic with a micro-thin brushed capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Fine, dense, straight vertical hairline brushing; final shade, brush density and sheen subject to physical sampleEngraved Result:
Slightly recessed warm-gold information with narrow dark groove walls and gold groove bottomsAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration reviewSheet Size:
600 x 1200 mm standard; 305 x 610 mm, 610 x 1220 mm and reviewed custom sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, reviewed custom-cut corporate sign blanks, drilling, optional pressure-sensitive adhesive backing and OEM finish/color development subject to order review

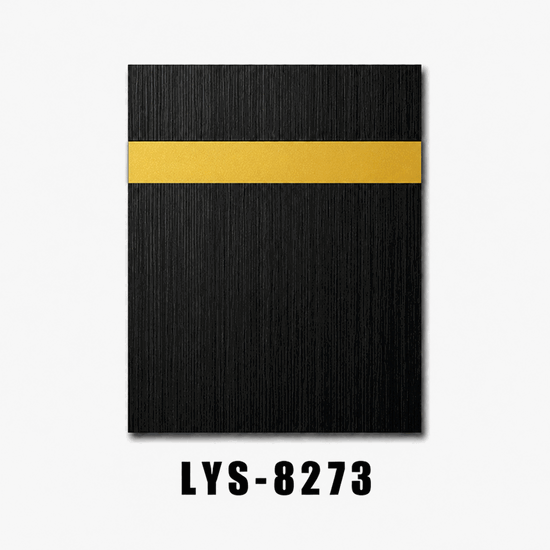

Brushed Black Gold Architectural Sign Substrate LYS-8273 combines a near-black metallic-look face with fine vertical hairline brushing and one continuous warm-gold core and back. Shallow front engraving removes only the micro-thin black cap and produces slightly recessed gold lettering, logos and line graphics. The restrained black-gold contrast is suited to professional fabricators producing corporate reception identity panels, executive-office plaques, boardroom identifiers and coordinated interior branding components. Acrylic-base stock is configured separately for CO2 laser work, while ABS-base stock is configured for CNC and rotary production. The brushed metallic finish describes appearance only; LYS-8273 is engraving plastic, not aluminum, brass or another solid metal.
Model:LYS-8273
Send Inquiry
Product Description
LYSHIRE ARCHITECTURAL SIGN SUBSTRATE | LYS-8273
Brushed Black Gold Architectural Sign Substrate

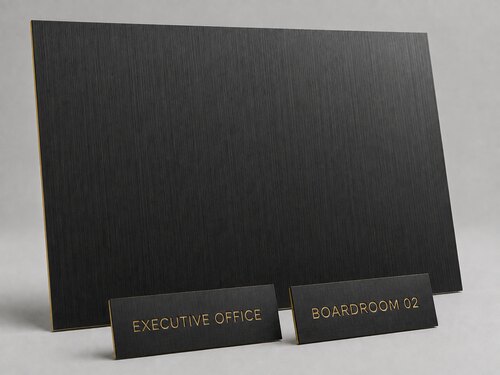

LYS-8273 combines a fine vertical brushed-black metallic visual surface with one continuous warm-gold core. Shallow front engraving creates slightly recessed gold information for coordinated corporate reception, executive-office and boardroom identity components.
Visual FinishFine Vertical Brushed Black
Engraved ResultSlight Recess / Gold Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Supply Positioning
Black-Gold Sign Stock for Corporate Interior Fabricators
Controlled Hairline Direction
Fine, dense vertical brushing provides a coordinated metallic visual effect across reception panels, executive-office plaques and boardroom identifiers.
Visible Two-Ply Construction
A micro-thin black cap is removed to expose one continuous warm-gold core. Thin gold edges and shallow grooves identify the material as engraving plastic rather than printed or solid metal.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Metallic Appearance, Engraving-Plastic Construction
“Brushed metallic effect” describes the surface appearance. LYS-8273 is a two-ply plastic sheet supplied as full stock or reviewed blanks; it is not aluminum, brass, stainless steel or a structural metal panel.
Technical Data
LYS-8273 Product Parameters
| Color Structure | Near-black vertical brushed metallic-effect face / Continuous warm-gold core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic with a micro-thin brushed cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Fine, dense, straight vertical hairline brushing; sample approval recommended |
| Engraved Result | Slightly recessed warm-gold information with narrow dark groove walls |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and reviewed custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, reviewed custom-cut sign blanks, drilling, optional pressure-sensitive adhesive backing and OEM finish/color development |
Processing
Large-Format Corporate Sign Production

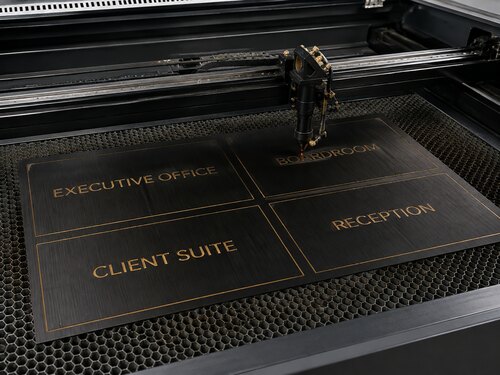

The processing image uses one realistic large CO2 laser, a matching head and honeycomb worktable. Meaningful plaque layouts remain the main subject.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving, routing and drilling
- Test shallow depth to expose gold without excessive groove walls
- Keep vertical brushing aligned across coordinated plaque sets
Brush Direction and Gold Tone Require Sample Approval
Metallic visual effects respond to lighting and viewing angle. Buyers should approve physical samples for black shade, gold tone, brush density, surface sheen, engraving contrast, panel size and mounting method before bulk production.
Application Boundary

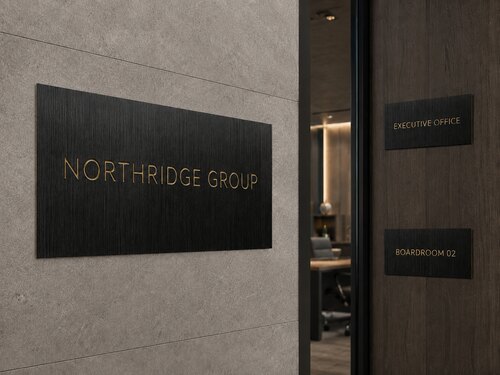

Corporate Interior Identity Components
Typical fabricated outputs include:
- Corporate reception identity panels
- Executive-office title plaques
- Boardroom identification signs
- Client-suite branding panels
- Reviewed custom corporate-interior blanks
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies LYS-8273 to architectural sign fabricators, engraving shops, corporate-identity producers, interior branding contractors and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness, dimensions, finish and packing requirements. Qualified B2B buyers can request samples to verify brush direction, black shade, gold tone and engraving contrast before bulk purchasing.
For an accurate quotation, provide sheet size, quantity, thickness, processing method, cutting or adhesive requirements, packing preference and destination market.
Buyer Questions
Frequently Asked Questions
Is LYS-8273 a solid metal sheet?
No. It is a two-ply engraving plastic with a brushed metallic visual surface and a continuous warm-gold core.
What appears after engraving?
Shallow processing removes the micro-thin brushed-black cap and exposes the gold core as slightly recessed lettering or graphics.
Can the brushed direction be controlled across a sign set?
Yes. Nesting and cutting layouts should keep the hairline brushing aligned consistently across coordinated panels.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC or rotary orders.
AI-Generated Image for Application Reference. Final black shade, gold tone, brush density, surface sheen, thickness, dimensions, engraving depth and mounting method must be confirmed by physical sample and order specification.
