Carbon Fiber Effect Textured Engraving Plastic
Color Structure:
Black and dark-gray carbon-fiber visual pattern / Continuous white core and white backSheet Structure:
Two-ply front-engraving plastic with a micro-thin patterned capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Regular diagonal twill-style carbon-fiber visual effect; final pattern scale, shade and sheen subject to physical sampleEngraved Result:
Slightly recessed white information with narrow dark groove walls and a white core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and reviewed custom sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, reviewed custom-cut display inserts, drilling, optional pressure-sensitive adhesive backing and OEM pattern/finish development subject to order review

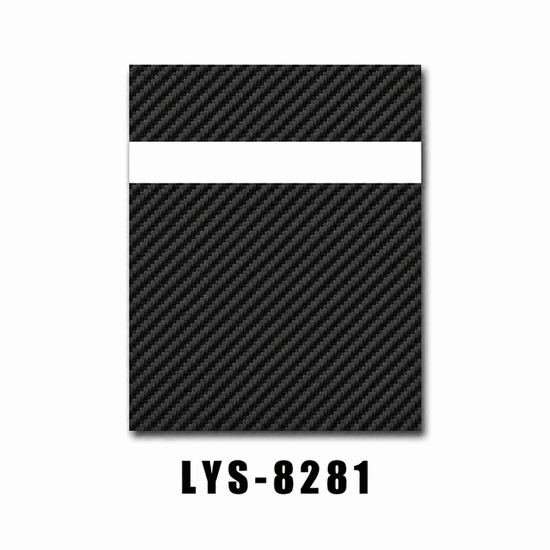

Carbon Fiber Effect Textured Engraving Plastic LYS-8281 combines a regular black and dark-gray diagonal twill visual pattern with one continuous white core and white back. Shallow front engraving removes only the micro-thin patterned cap and creates slightly recessed white lettering, model references and line graphics. The premium technical appearance is suited to professional fabricators producing product-presentation panels, branded display inserts, model-series identifiers and reviewed custom display components. Acrylic-base stock is configured separately for CO2 laser work, while ABS-base stock is configured for CNC and rotary production. The carbon-fiber pattern is a surface effect on two-ply engraving plastic; LYS-8281 is not a structural carbon-fiber composite or load-bearing component.
Model:LYS-8281
Send Inquiry
Product Description
LYSHIRE TEXTURED ENGRAVING PLASTIC | LYS-8281
Carbon Fiber Effect Textured Engraving Plastic
LYS-8281 is a two-ply engraving plastic with a regular black and dark-gray carbon-fiber visual pattern over one continuous white core. Professional fabricators can convert the material into premium product-presentation panels, branding inserts, model-series identifiers and reviewed custom display components.
Visual FinishRegular Carbon-Fiber Effect
Engraved ResultSlight Recess / White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Supply Positioning
Patterned Technical Finish for Product-Display Fabricators
Controlled Visual Pattern
Regular diagonal black and dark-gray bands create a technical carbon-fiber appearance suitable for coordinated display and branding components.
Visible Two-Ply Construction

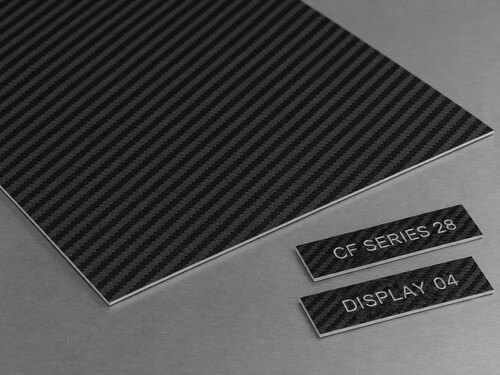

A hairline patterned cap is removed to expose one continuous white core. Thin white edges and shallow white grooves identify the material as engraving plastic rather than printed metal or a structural composite.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Carbon-Fiber Appearance, Engraving-Plastic Construction
“Carbon fiber effect” describes the visual pattern of the surface cap. LYS-8281 is a two-ply plastic sheet supplied as full stock or reviewed blanks; it is not reinforced carbon fiber, a structural composite or a load-bearing automotive component.
Technical Data
LYS-8281 Product Parameters
| Color Structure | Black and dark-gray carbon-fiber visual pattern / Continuous white core and white back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic with a micro-thin patterned cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Regular diagonal twill-style carbon-fiber visual effect; final pattern scale, shade and sheen subject to physical sample |
| Engraved Result | Slightly recessed white information with narrow dark groove walls and a white core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and reviewed custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, reviewed custom-cut display inserts, drilling, optional pressure-sensitive adhesive backing and OEM pattern/finish development |
Processing
Large-Format Display Insert Production

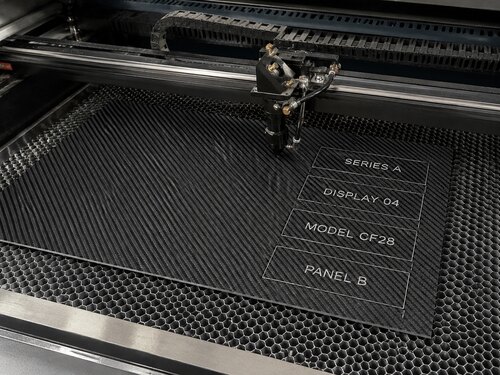

The processing image uses one realistic large CO2 laser with a matching laser head and honeycomb worktable. The patterned sheet and meaningful display-panel layouts remain the main subject rather than the equipment.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving, routing and drilling
- Test shallow engraving depth to retain narrow dark groove walls
- Keep the visual weave aligned across coordinated panel sets
Pattern Scale and Surface Sheen Require Sample Approval
Carbon-fiber visual effects respond to pattern scale, viewing angle and lighting. Buyers should approve physical samples for black and gray balance, pattern regularity, surface sheen, white contrast, insert size and mounting method before bulk production.
Application Boundary

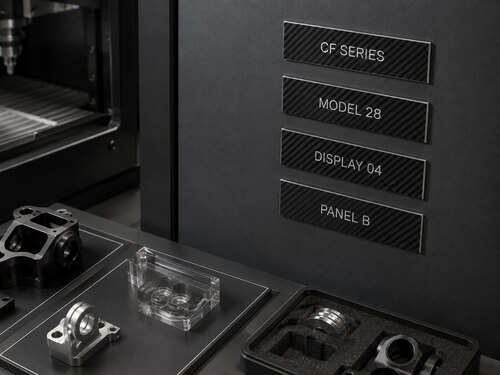

Premium Product Displays and Branding Inserts
Typical raw-material outputs include:
- Product-series presentation panels
- Premium branding and model identifiers
- Showroom display-zone inserts
- Custom specification-group panels
- Reviewed cut-to-size display blanks
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies LYS-8281 carbon-fiber-effect textured engraving plastic to engraving shops, product-display fabricators, branding-component producers, custom-panel manufacturers and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness, dimensions, pattern, finish and packing requirements. Qualified B2B buyers can request samples to verify pattern scale, black and gray balance, surface sheen and white engraving contrast before bulk purchasing.
For an accurate quotation, provide sheet size, quantity, thickness, processing method, optional cutting or adhesive requirement, packing preference and destination market.
Buyer Questions
Frequently Asked Questions
Is LYS-8281 made from real carbon fiber?
No. It is a two-ply engraving plastic with a carbon-fiber visual-effect pattern and a continuous white core.
What appears after engraving?
Shallow processing removes the micro-thin patterned cap and exposes the continuous white core, creating slightly recessed white information.
Can the carbon-fiber pattern vary between orders?
Pattern scale, black and gray balance, viewing-angle sheen and engraving contrast should be approved by physical sample before bulk production.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
AI-Generated Image for Application Reference. Final pattern scale, black and gray balance, surface sheen, thickness, sheet dimensions, engraving depth and mounting configuration must be confirmed by physical sample and order specification.
