Clear Black Acrylic Reverse Engraving Sheet
Construction:
Clear acrylic body with ultra-thin black rear coatingSurface:
Smooth clear front; deep black appearance through the acrylicMaterial:
AcrylicProcessing:
CO2 laser reverse engraving; CNC subject to tooling and project reviewEngraving method:
Mirror artwork; engrave coated rear sideTypical thickness:
1.3 / 1.5 mm, subject to order confirmationStandard sheet size:
600 × 1200 mm; custom cutting subject to reviewSupply:
Full sheets, reviewed cut blanks, B2B samples and bulk orders

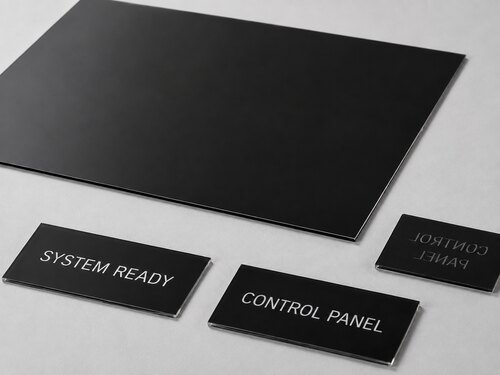

Clear Black Acrylic Reverse Engraving Sheet (LYS-7132) features a clear acrylic front with a thin black coating applied to the reverse side. Engraving is performed from the back, leaving the front surface smooth and protected. It is suitable for control panels, identification plates, directories and architectural signage.

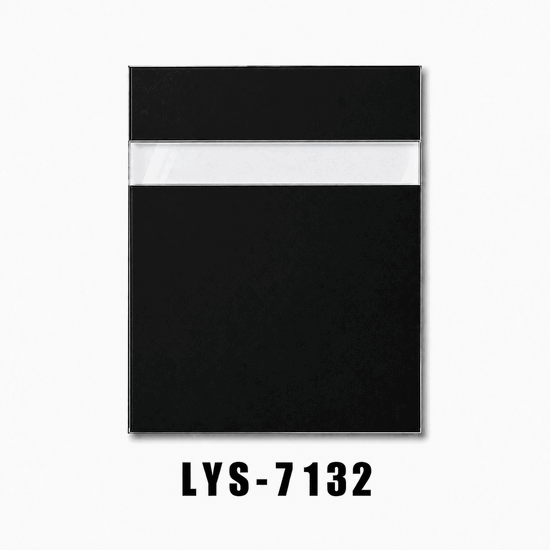

Model:LYS-7132
Send Inquiry
Product Description
CLEAR FACE · BLACK REAR COATING
Clear Black Acrylic Reverse Engraving Sheet
LYS-7132 is engraved in mirror image from the coated back. The ultra-thin black rear layer is removed while the full clear acrylic face remains flat, giving fabricators a clean protected-front result for equipment interface panels and control legends.
Clear Acrylic Body
The full face remains transparent and smooth
The full face remains transparent and smooth
Black Rear Coating
A hairline layer—not a thick black core
A hairline layer—not a thick black core
Mirror Engraving
Process artwork from the coated back
Process artwork from the coated back
Optional Backfill
Reviewed color fill after engraving
Reviewed color fill after engraving
How Reverse Engraving Works
Prepare the artwork as a mirror image and engrave the black coating from the rear. The laser removes only the coating in the marked areas, exposing clear acrylic. From the front, the information reads normally through a continuous, unengraved acrylic surface. Engraved areas can remain transparent or receive a separately reviewed backfill.

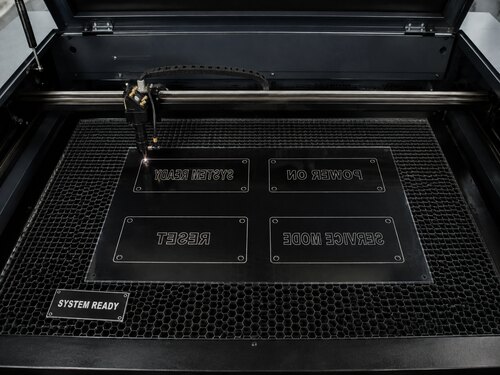

CO2 Laser Fabrication
LYS-7132 is configured around CO2 laser reverse engraving. The sheet is placed coated-side up, artwork is mirrored, and parameters are adjusted to clear the rear coating without unnecessarily cutting into the acrylic body. Test the selected thickness, optics, speed, power and backfill system before volume production.
Typical Applications

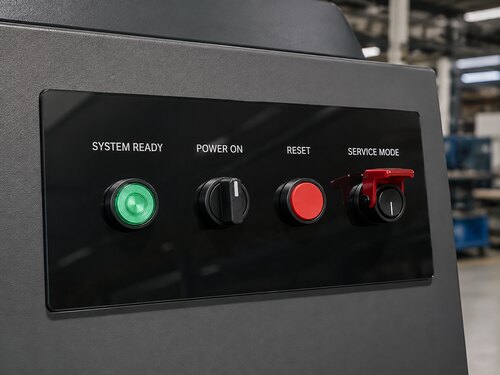

- Equipment operator interface panels
- Machine control legends
- Protected-front information plaques
- Reviewed backfilled display components
B2B Sheet Supply
LYSHIRE supplies full sheets, reviewed cut blanks and samples. Send the required sheet size, thickness, artwork, engraving method, fill color and order quantity for configuration review and quotation.
Structure note
Black is an ultra-thin coating on the back of clear acrylic. White legends shown in application imagery represent optional rear fill; they are not an inherent white core. Final performance and appearance must be confirmed with a physical sample.
Request a Reverse Engraving Sample
Share your panel dimensions, artwork, backfill requirement and projected quantity.
AI-generated product application imagery is used for visual reference. Actual color, transparency, gloss, dimensions, engraving and backfill results may vary by material configuration, processing parameters and display conditions. Confirm with a physical sample before production.
