Which side of LYS-7133 is engraved?

Mirror-image artwork is engraved from the red-coated rear side, while the clear front remains smooth.

Does LYS-7133 have a white acrylic core?

No. It has a clear acrylic body and an ultra-thin red rear coating. Engraving removes the coating to create transparent openings.

Can LYSHIRE supply samples and cut blanks?

Yes. Full sheets, reviewed cut blanks and B2B samples are available subject to configuration review.

Clear Red Reverse Engraving Plastic for Retail

Construction:
Clear acrylic body with ultra-thin red rear coating
Surface:
Smooth clear front; red appearance through the acrylic
Material:
Acrylic
Processing:
CO2 laser reverse engraving; CNC subject to tooling and project review
Engraving method:
Mirror artwork; engrave coated rear side
Typical thickness:
1.3 / 1.5 mm, subject to order confirmation
Standard sheet size:
600 × 1200 mm; custom cutting subject to review
Supply:
Full sheets, reviewed cut blanks, B2B samples and bulk orders

Clear Red Reverse Engraving Plastic for Retail (LYS-7133) features a clear acrylic front with a thin red coating on the reverse side. Back engraving keeps the front smooth and protected while creating clean graphics for retail displays, promotional signs, directories and identification panels.

Model:LYS-7133

Send Inquiry

Product Description

CLEAR FACE · RED REAR COATING

Clear Red Reverse Engraving Plastic for Retail

LYS-7133 is mirror engraved from its red-coated back. Removing only the ultra-thin rear coating creates transparent information while the full clear acrylic face remains smooth—an effective structure for retail fixture identifiers and product collection labels.

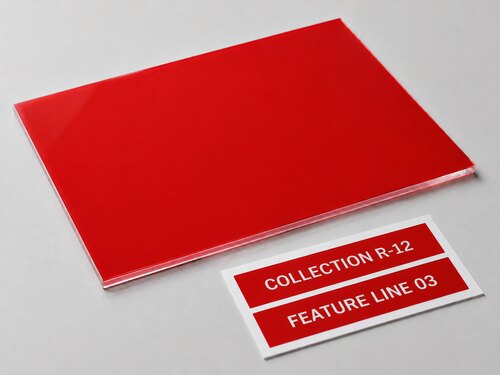

LYS-7133 clear red reverse engraving plastic showing a transparent acrylic body and ultra-thin red rear coating

Clear Acrylic Body
The continuous front stays transparent and smooth

Red Rear Coating
A hairline backing layer—not a colored core

Mirror Engraving
Process artwork from the coated rear side

Retail Integration
Background shows through transparent openings

How the Red-Backed Structure Works

Viewed through the transparent acrylic body, the rear coating gives the sheet an even red appearance. Fabricators prepare mirror artwork and remove the coating from the back. The resulting transparent openings read correctly from the front, and the selected holder or background can provide the visible contrast without interrupting the smooth face.

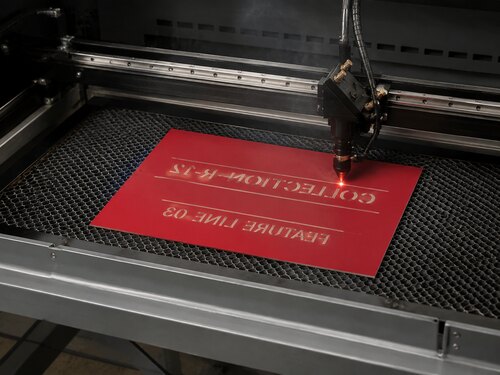

Large CO2 laser mirror engraving the red rear coating of clear acrylic reverse engraving material

CO2 Laser Rear-Side Processing

Place the sheet red-coated side up and engrave mirrored artwork from the rear. Parameters should remove the coating cleanly without unnecessarily cutting into the acrylic body. Confirm the selected thickness, optics, speed, power, fixture background and artwork on a physical sample before volume production.

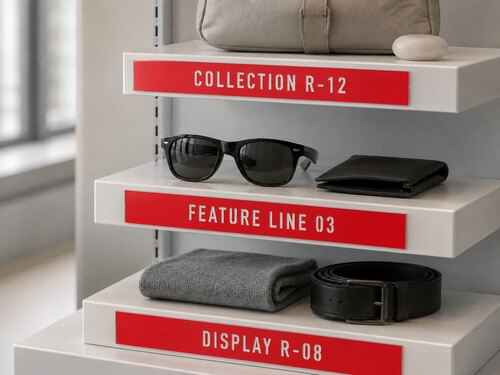

Smooth-front clear red reverse engraved plastic identifiers installed in professional retail fixtures

Retail Applications

Product retail fixture identifiers
Brand collection strips
Merchandise display labels
Reviewed point-of-sale presentation components

B2B Sheet Supply

LYSHIRE supplies full sheets, reviewed cut blanks and samples. Send the required size, thickness, mirrored artwork, fixture background and projected quantity for configuration review and quotation.

Structure note

Red is an ultra-thin coating on the back of clear acrylic, not a thick colored core. White information shown in application imagery comes from the light fixture background visible through transparent rear-engraved openings. Final appearance must be confirmed with a physical sample.

Request a Reverse Engraving Sample

Share your fixture dimensions, mirrored artwork, fixture background and projected quantity.

AI-generated product application imagery is used for visual reference. Actual color, transparency, gloss, dimensions and engraving results may vary by material configuration, processing parameters, fixture background and display conditions. Confirm with a physical sample before production.
