Controlled Area Identification Engraving Laminate
Color Structure:
Smooth matte medium-blue face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin blue capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed white information with visible shallow groove walls and white core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Controlled Area Identification Engraving Laminate LYS-7018 has a smooth matte medium-blue face over one continuous white core. Shallow front engraving removes the micro-thin blue cap and creates a slight recessed white result with visible groove depth for controlled-area references, airlock IDs, material-transfer points and production-zone information. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. This page serves industrial-sign fabricators, controlled-production contractors, equipment suppliers, engraving shops and distributors purchasing raw material for production-area identification. It does not claim cleanroom compatibility, sterile performance, antimicrobial properties, chemical resistance, low outgassing or GMP compliance.
Model:LYS-7018
Send Inquiry
Product Description
LYSHIRE CONTROLLED AREA IDENTIFICATION MATERIAL | LYS-7018
Controlled Area Identification Engraving Laminate

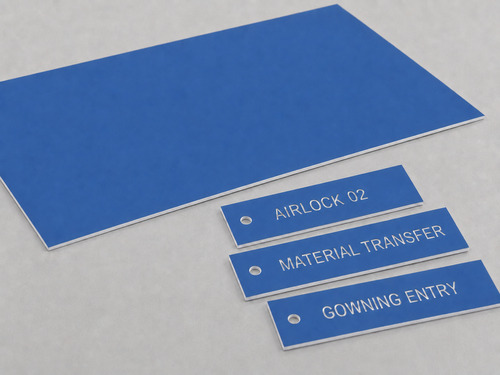

LYS-7018 is a two-ply fabrication laminate with a smooth matte medium-blue face over one continuous white core. Shallow front engraving removes the micro-thin blue cap and forms slightly recessed white information with visible groove depth. It is supplied as raw sheets and optional repeat blanks for professional controlled-production-area identification.
Material FormatTwo-Ply Laminate Stock
Engraved ResultSlight Recess / White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Controlled Production-Area Identification
True Shallow Engraving
The white information is exposed from the continuous core. Narrow groove walls and a shallow white bottom distinguish the result from printing while avoiding an excessively deep routed appearance.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated rectangular blanks, drilled profiles or project-specific cut parts for approved identification programs.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Identification Material, Not a Cleanroom Certification
LYS-7018 provides process-ready material for controlled-area signs. It is not presented as cleanroom-compatible, sterile, low-shedding, low-outgassing, antimicrobial, disinfectant-resistant or GMP-compliant unless separately tested for a specific project.
Technical Data
LYS-7018 Product Parameters
| Color Structure | Smooth matte medium-blue face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin blue cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed white information with shallow groove walls and a white core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |

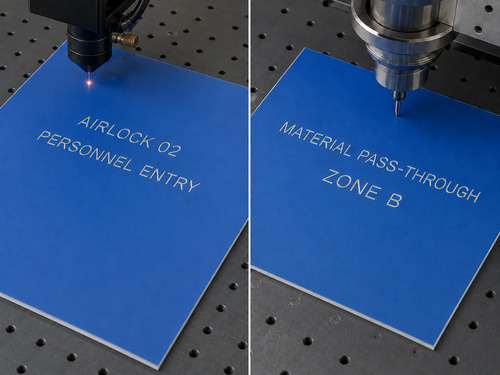

Processing
Select the Base for the Fabrication Method
The blue-and-white appearance can be coordinated across two separately supplied bases. Test the engraving depth so the blue surface is fully removed while the recess remains shallow and legible.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm wording, mounting and cleaning exposure for the destination project

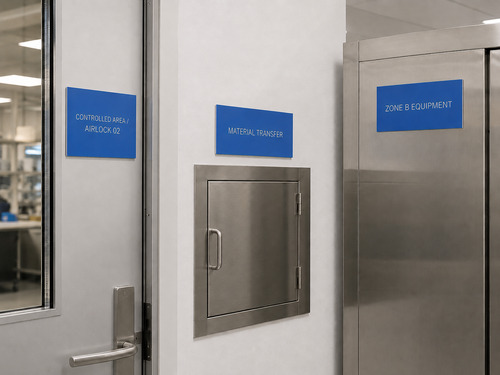

Application Images Are Fabrication References
Airlock, material-transfer, gowning-entry and zone wording demonstrate possible identification uses only. Facility terminology, location, mounting, cleaning method and compliance requirements must be confirmed by the buyer and end user.
Application Boundary
Airlocks, Material Transfer and Production Zones
Typical raw-material uses include:
- Controlled-area and airlock identifiers
- Material pass-through and transfer-point signs
- Gowning-entry and personnel-route references
- Production-zone and equipment identifiers
- Repeat blanks produced to an approved sign schedule
Wholesale Material Supply
Engraving Laminate for Controlled-Area Sign Fabricators
LYSHIRE supplies LYS-7018 to industrial-identification producers, production-area contractors, engraving shops, equipment suppliers and material distributors. Qualified buyers can request samples to confirm shade, white reveal, thickness and selected processing base.
For quotation, provide sheet size, thickness, quantity, processing method, blank dimensions, hole or adhesive requirement, cleaning exposure, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7018?
Shallow engraving removes the micro-thin matte-blue face and exposes the continuous white core. The correct visual result has slight recess depth, a narrow groove wall and a white bottom rather than a printed or raised appearance.
Is LYS-7018 certified for cleanrooms?
No such claim is made on this page. Cleanroom compatibility, particle shedding, outgassing, sterilization, cleaning resistance and GMP requirements require project-specific material and test review.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface, cleaning exposure and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
