Electrical Label Engraving Stock
Color Structure:
Smooth matte deep-navy face / Continuous white core and backSheet Structure:
Two-ply front-engraving stock with a micro-thin colored capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare deep navyEngraved Result:
Shallow recessed white legends, numbers, arrows, symbols and line graphicsAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, custom profiles, optional adhesive backing and OEM color matching subject to review
Electrical Label Engraving Stock LYS-7010 has a smooth matte deep-navy face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white legends, circuit references, arrows, symbols and line graphics without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. The page serves electrical-label fabricators, panel builders, equipment manufacturers, industrial-identification producers and material distributors purchasing process-ready stock. Electrical application does not automatically establish flame, insulation, conductivity, outdoor or destination-market performance.
Model:LYS-7010
Send Inquiry
Product Description
LYSHIRE INDUSTRIAL IDENTIFICATION MATERIAL | LYS-7010
Electrical Label Engraving Stock

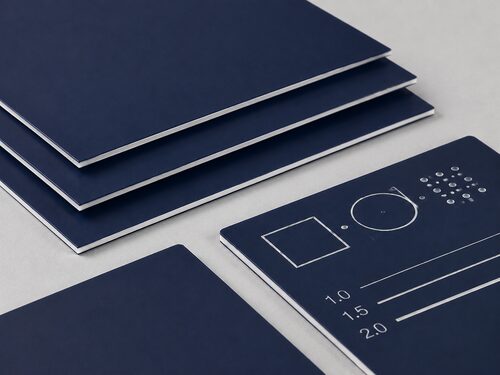

Electrical Label Engraving Stock LYS-7010 is a two-ply fabrication material with a smooth matte deep-navy face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white legends, circuit references, arrows, symbols and line graphics without printed ink, vinyl lettering or paint fill. It is supplied as raw sheet stock and cut blanks for professional label, legend-plate and equipment-identification production.
Material FormatTwo-Ply Sheet Stock
Color StructureDeep Navy / White Core
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Stock Material for Electrical and Equipment Labels
High-Contrast White Reveal
The dark low-glare face supports clear white legends, arrows, equipment references and line graphics. The contrast comes from the laminated structure rather than a printed surface.
Process-Ready Sheet Supply
Buyers can order standard sheets, cut-to-size blanks or repeat OEM programs. The page is directed to label fabricators, panel builders, equipment manufacturers and material distributors.
Separate Base Configurations
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary fabrication. They are separate order configurations, not one universal sheet.
Material-Led Page, Not a Finished Label Service
LYS-7010 covers process-ready engraving stock for buyers manufacturing electrical-panel legends, circuit references, control-cabinet labels, equipment tags and maintenance identification. LYSHIRE supplies the sheet material and optional cut blanks; final wording, layout, mounting, certification and installation remain the responsibility of the fabricator and end user.
Technical Data
LYS-7010 Product Parameters
| Color Structure | Smooth matte deep-navy face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving stock with a micro-thin colored cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare deep navy |
| Engraved Result | Shallow recessed white legends, numbers, arrows, symbols and line graphics |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Supply and Options | Full sheets, cut-to-size blanks, custom profiles, optional adhesive backing and OEM color matching subject to review |

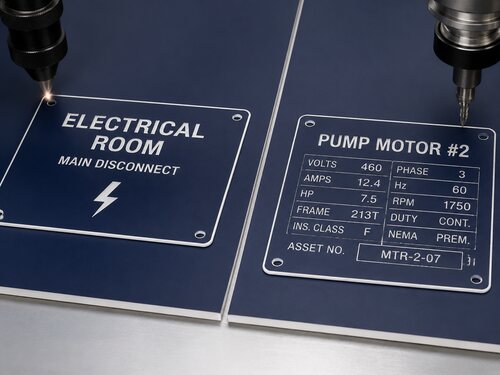

Processing
Choose the Base for the Fabrication Method
LYS-7010 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The face/core appearance can be coordinated across both routes, but the correct base must be selected before production.
- Use the acrylic configuration for CO2 laser engraving and vector cutting
- Use the ABS configuration for CNC or rotary engraving and mechanical fabrication
- Test power, speed, cutter geometry, character size and engraving depth before batch production
Electrical Application Does Not Mean Electrical Certification
The product positioning describes a fabrication use, not an automatic material rating. Standard LYS-7010 must not be assumed to be flame-retardant, electrically insulating, non-conductive, chemically resistant, UV rated or compliant with a specific electrical code. State the required environment, test standard and destination-market rule before the grade is selected.

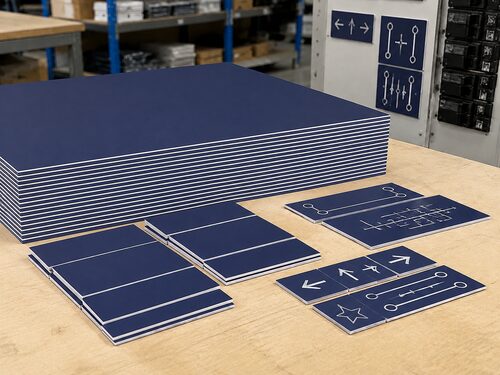

B2B Supply Formats
Full Sheets, Cut Blanks and Repeat Programs
LYS-7010 supports fabricators and distributors that need repeatable raw material rather than a single finished label design. Supply formats can include:
- Standard 600 × 1200 mm sheets for workshop and distributor stock
- 305 × 610 mm, 610 × 1220 mm and project-specific cut sizes
- Rectangular, rounded-corner, drilled and custom-profile blanks
- Optional adhesive backing for approved installation conditions
- Physical sample approval and repeat OEM color programs
Wholesale Material Supply
Engraving Stock for Professional Label Fabricators
LYSHIRE supplies LYS-7010 to electrical-label fabricators, equipment manufacturers, panel builders, industrial-identification producers and engraving-material distributors. Qualified B2B buyers can request samples to confirm the deep-navy tone, matte face, white reveal and selected acrylic or ABS processing route before bulk purchasing.
For an accurate quotation, provide sheet size, thickness, quantity, processing method, label application, adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7010?
Shallow engraving removes the micro-thin matte navy face and reveals the continuous white core as recessed legends, numbers, arrows, symbols and line graphics.
Is LYS-7010 supplied as finished electrical labels?
No. This page covers process-ready sheet stock and optional cut blanks for professional fabricators. Final design, wording, installation and compliance remain project-specific.
Can it be ordered for both laser and rotary processing?
Yes, as separate configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the product name mean the standard sheet is flame-retardant or electrically insulating?
No. Electrical-label use does not establish fire, insulation, conductivity or regulatory performance. Required standards must be stated and verified for the selected grade.
Can buyers request custom sizes, adhesive backing or OEM color matching?
Yes. Full sheets, cut-to-size blanks, custom profiles, optional adhesive backing and repeat OEM color approval can be reviewed according to specification, quantity and packing requirements.
Application images are AI-generated visual references. Actual material color, thickness, finish, engraving result and fabrication setup must be confirmed by physical samples and order specifications.
