Engravable Plastic Sheet for Machine Status Plates
Color Structure:
Smooth matte medium-green face / Continuous red core and backSheet Structure:
Two-ply front-engraving plastic sheet with a micro-thin green capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed red information with visible shallow green groove walls and a red core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Engravable Plastic Sheet for Machine Status Plates LYS-7025 has a smooth matte medium-green face over one continuous red core and red back. Shallow front engraving removes the micro-thin green cap and creates slightly recessed red letters, numbers and line graphics with visible narrow green groove walls. The material is intended for professional fabricators producing machine-status plates, production-line identifiers, changeover references and equipment operating-point labels. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Green and red are physical color attributes only; the raw material does not by itself define a safe operating state or create a compliant warning, emergency or machine-safety sign.
Model:LYS-7025
Send Inquiry
Product Description
LYSHIRE MACHINE IDENTIFICATION MATERIAL | LYS-7025
Engravable Plastic Sheet for Machine Status Plates

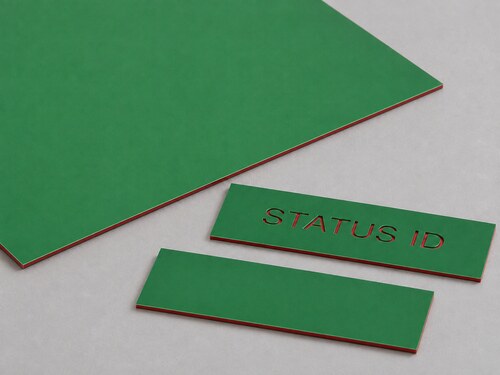

LYS-7025 is a two-ply engravable plastic sheet with a smooth matte medium-green face over one continuous red core. Shallow front engraving removes the micro-thin green cap and forms slightly recessed red information with visible groove depth. It is supplied as raw sheets and optional repeat blanks for professional machine-status plate fabrication.
Material FormatTwo-Ply Engravable Sheet
Engraved ResultSlight Recess / Red Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Green Red Sheet Stock for Machine-Plate Fabricators
True Shallow Engraving
Red information is exposed from the continuous core. Narrow green groove walls and a shallow red bottom distinguish the result from printing while avoiding an excessively deep routed appearance.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated status-plate blanks, drilled profiles or project-specific cut parts for approved machine-identification schedules.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Identification Material, Not a Completed Machine-Safety System
LYS-7025 provides process-ready material for machine-status, production-line and changeover identification plates. Final wording, color meaning, viewing distance, mounting and regulatory review remain the responsibility of the fabricator and end user.
Technical Data
LYS-7025 Product Parameters
| Color Structure | Smooth matte medium-green face / Continuous red core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic sheet with a micro-thin green cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed red information with shallow green groove walls and a red core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |
Processing

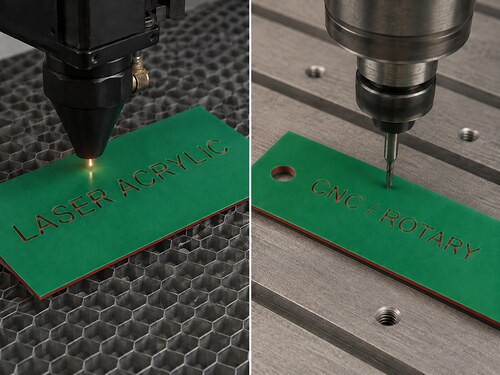

Select the Base for the Fabrication Method
The green-and-red appearance can be coordinated across two separately supplied bases. Test the engraving depth so the green surface is fully removed while the recess remains shallow and legible.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm plate wording, mounting surface, cleaning exposure and operating environment

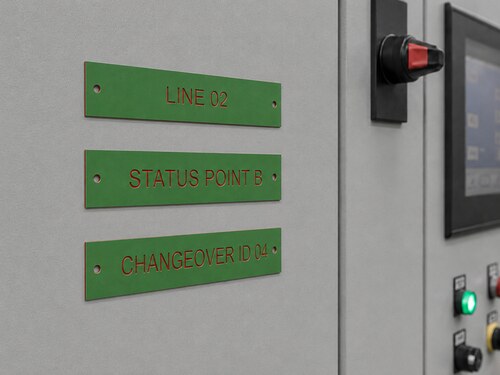

Application Images Are Fabrication References
Machine-status and changeover wording demonstrates possible identification uses only. Green and red do not automatically define a safe, running, stopped or hazardous machine state. Final content and compliance review must be confirmed by the buyer and end user.
Application Boundary
Machine Status, Production Lines and Changeover References
Typical raw-material uses include:
- Machine and production-line identification plates
- Status-point and operating-position references
- Changeover and setup identification labels
- Equipment location and process-point plates
- Repeat blanks produced to an approved machine-label schedule
Wholesale Material Supply
Engravable Plastic Sheet for Machine-Plate Fabricators
LYSHIRE supplies LYS-7025 to industrial-identification producers, machine builders, panel and equipment label fabricators, engraving shops and material distributors. Qualified buyers can request samples to confirm shade, red reveal, thickness and selected processing base.
For quotation, provide sheet size, thickness, quantity, processing method, blank dimensions, hole or adhesive requirement, cleaning exposure, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7025?
Shallow engraving removes the micro-thin matte-green face and exposes the continuous red core. The correct visual result has slight recess depth, a narrow green groove wall and a red bottom rather than a printed or raised appearance.
Does the green-and-red color combination define a machine state?
No. It is a raw two-color material. The project owner must define wording, symbols, color meaning, placement and compliance requirements for each installation.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface, cleaning exposure and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
