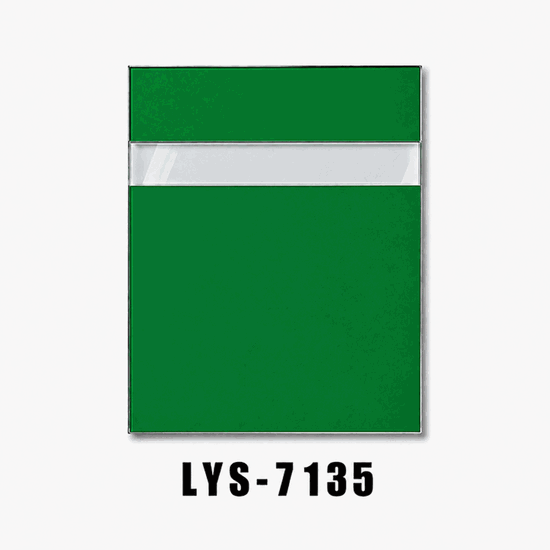

Green Back Engraving Acrylic for Facility Maps
Construction:
Clear acrylic body with ultra-thin green rear coatingSurface:
Smooth clear front; green appearance through the acrylicMaterial:
AcrylicProcessing:
CO2 laser reverse engraving; CNC subject to tooling and project reviewEngraving method:
Mirror artwork; engrave coated rear sideTypical thickness:
1.3 / 1.5 mm, subject to order confirmationStandard sheet size:
600 × 1200 mm; custom cutting subject to reviewSupply:
Full sheets, reviewed cut blanks, B2B samples and bulk orders

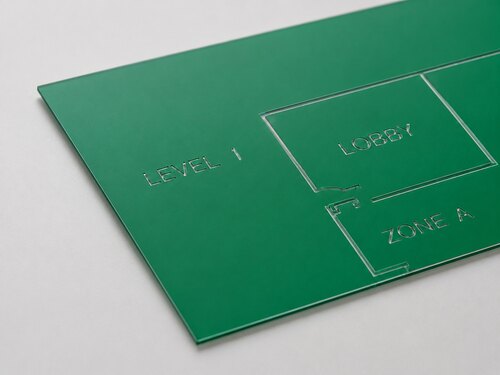

Green Back Engraving Acrylic for Facility Maps (LYS-7135) is developed for facility-map and floor-index fabrication. Its transparent acrylic body carries an ultra-thin emerald-green coating on the rear. Fabricators mirror the artwork and engrave from the coated back, removing only the green coating while the front remains smooth and uninterrupted.
Model:LYS-7135
Send Inquiry
Product Description
CLEAR FACE · RED REAR COATING
Green Back Engraving Acrylic for Facility Maps
Green Back Engraving Acrylic for Facility Maps (LYS-7135) is mirror engraved from its green-coated back. Removing only the ultra-thin rear coating creates transparent map lines, floor indexes and location information while the clear acrylic front remains smooth.
Clear Acrylic Body
The continuous front stays transparent and smooth
The continuous front stays transparent and smooth
Green Rear Coating
A hairline backing layer—not a colored core
A hairline backing layer—not a colored core
Mirror Engraving
Process artwork from the coated rear side
Process artwork from the coated rear side
Map Integration
Light mounting backing shows through transparent openings
Light mounting backing shows through transparent openings
How the Green-Backed Structure Works
Viewed through the transparent acrylic body, the rear coating gives the sheet an even green appearance. Fabricators prepare mirror artwork and remove the coating from the back. The resulting transparent openings read correctly from the front, and the selected holder or background can provide the visible contrast without interrupting the smooth face.

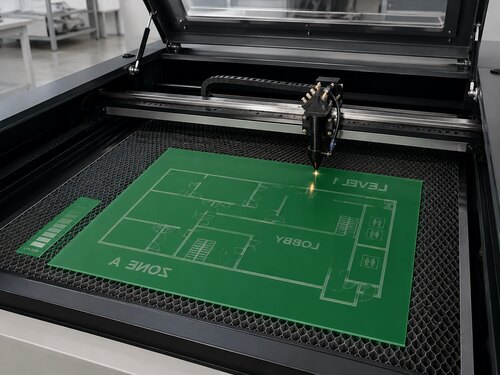

CO2 Laser Rear-Side Processing
Place the sheet green-coated side up and engrave mirrored artwork from the rear. Parameters should remove the coating cleanly without unnecessarily cutting into the acrylic body. Confirm the selected thickness, optics, speed, power, mounting backing and artwork on a physical sample before volume production.

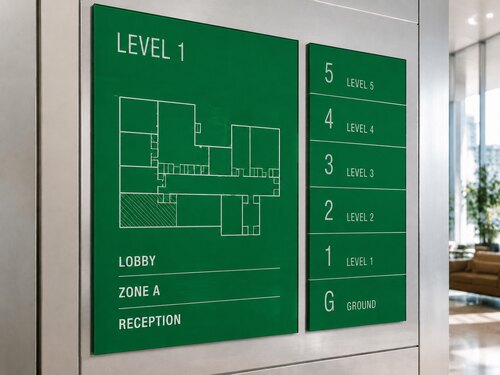

Facility Map Applications
- Building facility maps
- Lobby location diagrams
- Floor index inserts
- Reviewed directory and orientation panels
B2B Sheet Supply
LYSHIRE supplies full sheets, reviewed cut blanks and samples. Send the required size, thickness, mirrored artwork, mounting-backing color and projected quantity for configuration review and quotation.
Structure note
Green is an ultra-thin coating on the back of clear acrylic, not a thick colored core. Light information shown in application imagery comes from the mounting backing visible through transparent rear-engraved openings. Final appearance must be confirmed with a physical sample.
Request a Back Engraving Acrylic Sample
Share your facility-map dimensions, mirrored artwork, backing color and projected quantity.
Send Product InquiryAI-generated product application imagery is used for visual reference. Actual color, transparency, gloss, dimensions and engraving results may vary by material configuration, processing parameters, fixture background and display conditions. Confirm with a physical sample before production.
