Industrial Synoptic Engraving Laminate
Color Structure:
Smooth matte navy-blue face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin colored face layerBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte, low-reflection deep navy blueEngraved Result:
Shallow recessed white text, arrows, symbols and line diagramsAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderApplications and Options:
Process-flow diagrams, machine synoptic plates, equipment schematics and operating-reference panels; adhesive backing or project-specific performance grades available subject to review
Industrial Synoptic Engraving Laminate LYS-7006 has a smooth matte navy-blue face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white words, arrows, equipment symbols and line diagrams without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Typical B2B uses include water-treatment flow diagrams, packaging-line operating references, HVAC schematics, machine-sequence plates and repeat OEM technical panels. The application visuals do not automatically establish electrical, fire or destination-market compliance.
Model:LYS-7006
Send Inquiry
Product Description
LYSHIRE INDUSTRIAL SYNOPTIC SERIES | LYS-7006
Industrial Synoptic Engraving Laminate

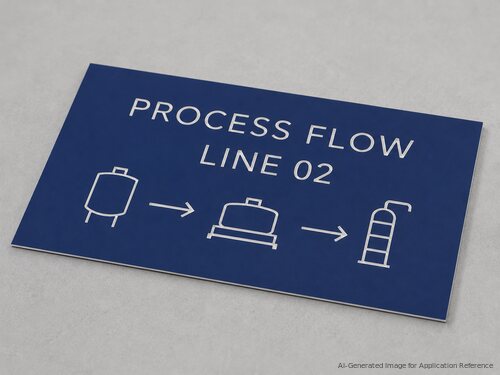

Industrial Synoptic Engraving Laminate LYS-7006 combines a smooth matte navy-blue face with one continuous white core in a two-ply front-engraving material. A shallow pass removes the micro-thin blue cap and exposes permanent recessed white words, flow lines, equipment symbols and reference codes. The contrast comes from the sheet structure rather than printed ink, applied vinyl, raised lettering or secondary paint fill.
Color StructureNavy Blue / White Core
Engraved ResultRecessed White Reveal
Order RoutingLaser Acrylic / CNC ABS
Two-Ply Diagram Material
Clear Process Information on a Calm Low-Glare Surface
Matte Navy-Blue Face
The face is a solid deep navy blue with a smooth low-reflection appearance. It is not light blue, gloss, mirror, metallic, brushed, pearlescent or visibly textured.
White Diagram Details Are Engraved In
Correct shallow engraving removes the micro-thin blue cap and reveals the continuous white core. Flow paths, labels and symbols remain recessed rather than applied to the surface.
Repeatable Technical Layouts
The two-ply contrast supports equipment symbols, directional arrows, process references and concise operating information when character size and engraving depth are matched to the job.
A Material Route for Industrial Synoptic Information
LYS-7006 is positioned for engraved process-flow and equipment-schematic reference plates. It is separate from LYSHIRE generic matte-blue, blue-white mandatory-instruction, outdoor-grade blue-white, fine-texture blue and rotary-grade deep-blue pages. The navy color and application visuals do not by themselves establish fire, electrical-insulation or destination-market compliance.
Technical Data
LYS-7006 Product Parameters
| Color Structure | Smooth matte navy-blue face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin colored face layer |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte, low-reflection deep navy blue |
| Engraved Result | Shallow recessed white text, arrows, symbols and line diagrams |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Applications and Options | Process-flow diagrams, machine synoptic plates, equipment schematics and operating-reference panels; adhesive backing or project-specific performance grades available subject to review |
Processing

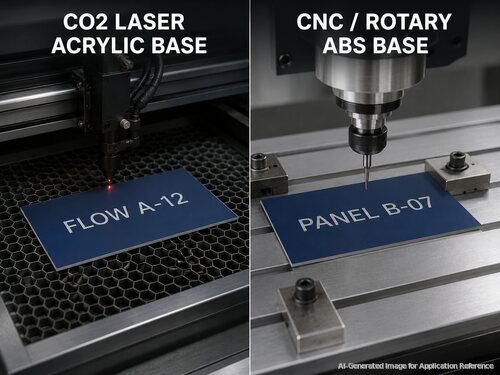

Separate Laser and CNC / Rotary Configurations
LYS-7006 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The navy-blue-and-white appearance remains coordinated, but the two process routes are separate order configurations rather than one universal sheet.
- Specify acrylic base for CO2 laser engraving and vector cutting
- Specify ABS base for CNC or rotary engraving and mechanical fabrication
- Test power, speed, tool geometry, diagram line width and engraving depth before batch production
Confirm the Base Material before Production
Do not assume the ABS version is the preferred CO2-laser sheet or that the acrylic version automatically replaces a mechanical-engraving order. Send the machine type, processing method, minimum line width, thickness, sheet size and finished application so the correct configuration can be quoted and sampled.
B2B Applications

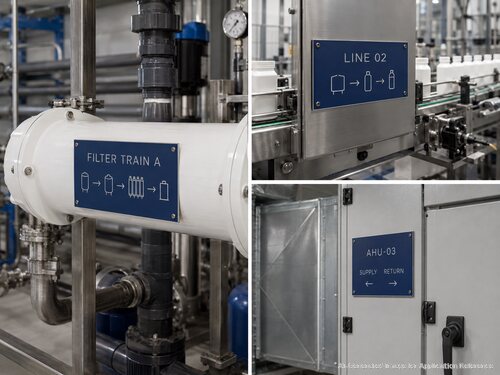

Process-Flow and Equipment-Schematic Reference Plates
The matte navy-blue face and recessed white information suit fabricators producing coordinated technical-reference plates for industrial equipment. Typical uses include:
- Water-treatment and filtration process-flow reference plates
- Packaging, filling and assembly-line operating diagrams
- HVAC and building-services equipment schematics
- Machine sequence, valve path and material-flow reference panels
- OEM technical plates with repeat symbols and equipment codes
Application Reference, Not Automatic Electrical Certification
The application image demonstrates possible use of the engraving laminate. The fabricator and end user remain responsible for confirming the plate wording, diagram accuracy, mounting method, cleaning exposure, temperature, UV conditions, required material performance and any applicable machinery, facility or electrical rules. State these conditions before the material grade is selected.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies industrial synoptic engraving laminate to engraving-material distributors, industrial sign manufacturers, machine builders, panel fabricators and OEM equipment companies. Mixed products can be arranged within the standard 500-sheet MOQ, subject to material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm the matte surface, white reveal and selected processing route before bulk purchasing.
For an accurate quotation, provide the sheet size, thickness, quantity, processing method, minimum diagram line width, adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What color appears after engraving LYS-7006?
Engraving removes the micro-thin matte navy-blue face layer and reveals the continuous white core as recessed text, arrows, symbols and line diagrams.
Is the white diagram printed or paint filled?
No. The white is the core material below the colored face. Correct engraving depth exposes it directly without printed ink, vinyl lettering or secondary paint filling.
Can LYS-7006 be ordered for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Which technical applications suit this page boundary?
Typical uses include industrial process-flow diagrams, machine-sequence reference plates, HVAC schematics, filtration-flow panels and other concise equipment synoptic information.
Does the navy-blue laminate automatically meet electrical or fire-safety requirements?
No. The color and application images do not certify a finished plate. The required grade, mounting, diagram accuracy and destination-market rules must be reviewed for the actual project.
