Laser Engraving and Cutting Acrylic Laminate
Color:
Gold Face / Red CoreThickness Range:
0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Above 3.0mm Available by Custom OrderSheet Size:
600 x 1200mm; 305 x 610mm, 12 x 24 Inch, 24 x 48 Inch and Other Custom-Cut Sizes AvailableStructure:
Thin Satin Metallic Gold Face Layer over Continuous Red CoreMaterial:
Acrylic-Based Two-Layer Engraving LaminateProcessing:
CO2 Laser Engraving / Laser Cutting / Precision DrillingSupply Options:
Full Sheet / Cut-to-Size / OEM / Private Label / Optional Adhesive BackingPerformance Options:
UV-Resistant / Weather-ResistantCompliance:
RoHS / Anti-UV / Performance and Raw Material Test Reports Available
Laser Engraving and Cutting Acrylic Laminate combines a satin metallic gold face with a continuous red core. LYS-8820 is supplied as process-ready sheet material for professional laser engravers, industrial identification fabricators, sign manufacturers, distributors and OEM buyers. The thin face layer reveals clean red details when engraved, while the sheet can also be laser cut and drilled into custom components. Standard 600 x 1200mm sheets, custom-cut sizes, multiple thicknesses and optional adhesive backing are available.
Model:LYS-8820
Send Inquiry
Product Description
Laser Engraving and Cutting Acrylic Laminate
Laser Engraving and Cutting Acrylic Laminate has a satin metallic gold face over a continuous red core. Laser engraving removes the thin face layer and reveals permanent red letters, numbers and graphics without printed ink, vinyl or applied lettering.
LYS-8820 is supplied as process-ready sheet material for professional laser engravers, industrial identification fabricators, sign manufacturers, distributors and OEM buyers. Standard full sheets and custom-cut sizes are available across multiple thicknesses.
Gold Face and Engraved Red Contrast
The two-layer construction combines a professional metallic appearance with clear red engraved contrast. The continuous core supports consistent color across batch-produced identification parts.

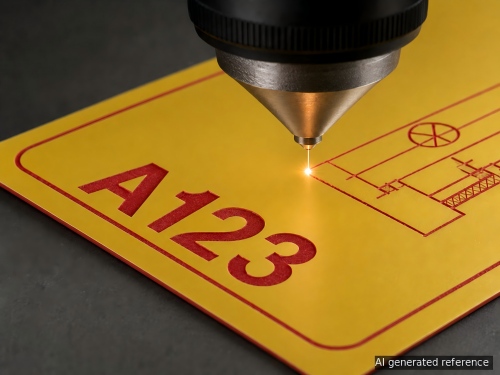

CO2 Laser Engraving
The thin surface layer supports crisp characters, serial data and technical graphics. Test power, speed and focus before batch production to establish the required engraving depth and surface finish.

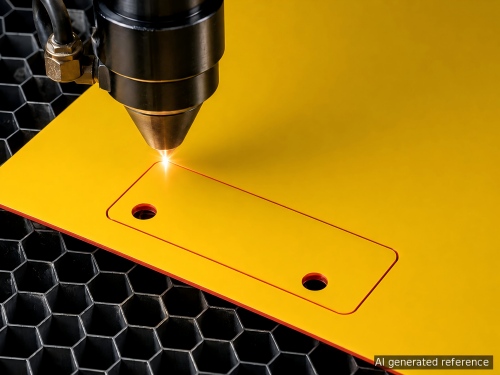

Laser Cutting and Mounting Holes
The sheet can be cut into custom profiles and prepared with mounting holes for industrial identification components. Suitable settings should be tested for the selected thickness, edge quality and part geometry.

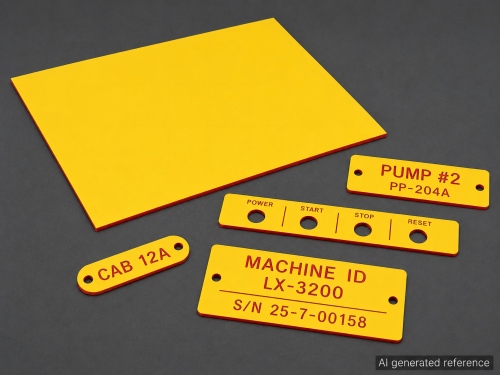

Industrial Identification Applications
The gold-red contrast is suitable for fabricating equipment ID plates, control-panel legends, cable markers, machine serial plates and other professional engraving applications. Application visuals are illustrative references; LYSHIRE supplies the process-ready sheet material.
Product Parameters
| Color | Gold Face / Red Core |
| Thickness Range | 0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Above 3.0mm Available by Custom Order |
| Sheet Size | 600 x 1200mm; 305 x 610mm, 12 x 24 Inch, 24 x 48 Inch and Other Custom-Cut Sizes Available |
| Structure | Thin Satin Metallic Gold Face Layer over Continuous Red Core |
| Material | Acrylic-Based Two-Layer Engraving Laminate |
| Surface Finish | Satin Metallic Gold |
| Processing | CO2 Laser Engraving / Laser Cutting / Precision Drilling |
| Supply Options | Full Sheet / Cut-to-Size / OEM / Private Label / Optional Adhesive Backing |
| Performance Options | UV-Resistant / Weather-Resistant |
| Compliance | RoHS / Anti-UV / Performance and Raw Material Test Reports Available |
Custom Production and B2B Supply
LYSHIRE supports custom thickness, cut-to-size service, color matching, adhesive lamination, private label, custom packaging and bulk distributor orders. Free standard samples are available for qualified material testing.
Frequently Asked Questions
Q: What color appears after engraving?
A: Engraving removes the satin metallic gold face and reveals the continuous red core.
Q: Is this a finished sign or raw material?
A: It is process-ready acrylic engraving sheet material supplied to professional fabricators, distributors and OEM manufacturers.
Q: Can the material be both engraved and cut by laser?
A: Yes. It is suitable for CO2 laser engraving and cutting. Settings should be tested for the selected thickness and required result.
Q: Can mounting holes and custom profiles be made?
A: Yes. The sheet can be laser cut and prepared with mounting holes according to the fabrication drawing.
Q: Can the sheet be supplied in custom sizes?
A: Yes. Standard 600 x 1200mm sheets can be cut to requested metric or imperial dimensions.
Q: Can adhesive backing be supplied?
A: Yes. Optional adhesive backing is available according to the application and order specification.
Q: Can I request a free sample?
A: Yes. LYSHIRE provides free standard samples and covers the standard sample courier cost for qualified B2B testing.
