Loading Dock and Receiving Bay Sign Material
Color Structure:
Smooth matte deep-charcoal face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin charcoal capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed white information with visible shallow groove walls and white core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Loading Dock and Receiving Bay Sign Material LYS-7020 has a smooth matte deep-charcoal face over one continuous white core. Shallow front engraving removes the micro-thin charcoal cap and creates a slightly recessed white result with visible groove depth for loading-dock numbers, receiving-bay references, dispatch-door identifiers and shipping-area information. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. This page serves industrial-sign fabricators, logistics-facility contractors, engraving shops and distributors purchasing raw sign material for covered loading and receiving environments. Final wording, mounting, traffic meaning and site compliance remain project-specific.
Model:LYS-7020
Send Inquiry
Product Description
LYSHIRE LOGISTICS FACILITY IDENTIFICATION MATERIAL | LYS-7020
Loading Dock Identification Engraving Laminate

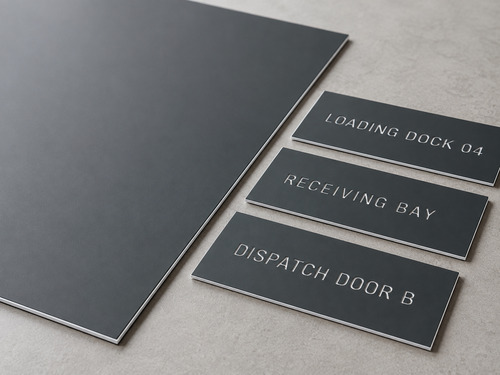

LYS-7020 is a two-ply fabrication laminate with a smooth matte deep-charcoal face over one continuous white core. Shallow front engraving removes the micro-thin charcoal cap and forms slightly recessed white information with visible groove depth. It is supplied as raw sheets and optional repeat blanks for professional loading-dock and shipping/receiving identification.
Material FormatTwo-Ply Laminate Stock
Engraved ResultSlight Recess / White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Loading, Receiving and Dispatch Identification
True Shallow Engraving
White information is exposed from the continuous core. Narrow groove walls and a shallow white bottom distinguish the result from printing while avoiding an excessively deep routed appearance.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated dock-number blanks, drilled profiles or project-specific cut parts for approved facility sign schedules.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Identification Material, Not a Completed Dock-Control System
LYS-7020 provides process-ready material for loading-dock, receiving-bay and dispatch-door signs. Final wording, numbering, traffic meaning, placement, mounting and site compliance remain the responsibility of the fabricator and end user.
Technical Data
LYS-7020 Product Parameters
| Color Structure | Smooth matte deep-charcoal face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin charcoal cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed white information with shallow groove walls and a white core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |
Processing

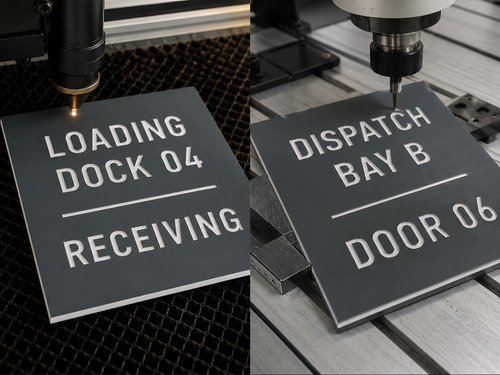

Select the Base for the Fabrication Method
The charcoal-and-white appearance can be coordinated across two separately supplied bases. Test the engraving depth so the charcoal surface is fully removed while the recess remains shallow and legible.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm wording, mounting and cleaning exposure for the destination project

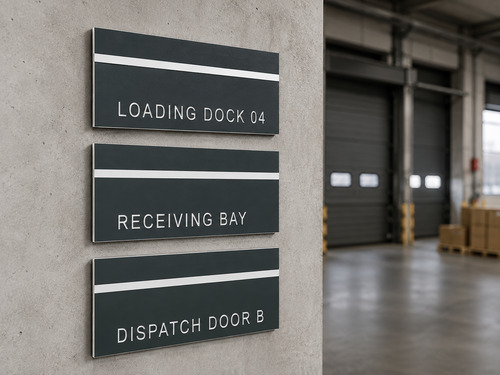

Application Images Are Fabrication References
Loading-dock, receiving-bay and dispatch-door wording demonstrates possible identification uses only. Sign content, traffic meaning, location, mounting and compliance review must be confirmed by the buyer and end user.
Application Boundary
Loading Docks, Receiving Bays and Dispatch Doors
Typical raw-material uses include:
- Loading-dock number and bay identifiers
- Receiving-area and inbound-door references
- Dispatch-door and outbound-bay identifiers
- Shipping-office and logistics-zone information plates
- Repeat blanks produced to an approved facility sign schedule
Wholesale Material Supply
Engraving Laminate for Logistics-Facility Sign Fabricators
LYSHIRE supplies LYS-7020 to industrial-identification producers, logistics-facility contractors, engraving shops and material distributors. Qualified buyers can request samples to confirm shade, white reveal, thickness and selected processing base.
For quotation, provide sheet size, thickness, quantity, processing method, blank dimensions, hole or adhesive requirement, cleaning exposure, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7020?
Shallow engraving removes the micro-thin matte-charcoal face and exposes the continuous white core. The correct visual result has slight recess depth, a narrow groove wall and a white bottom rather than a printed or raised appearance.
Is LYS-7020 a finished traffic or safety sign?
No. It is raw engraving material. Final wording, symbols, viewing distance, mounting, traffic meaning and compliance review remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface, cleaning exposure and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
