Mirror Blue Red Core Engraving Sheet
Surface / Base Color:
Mirror Blue / RedStructure:
Two-ply engraving plastic sheet with a continuous red contrast baseBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC/Rotary ordersSurface Finish:
Smooth high-reflection mirror blue; non-brushed, non-textured and non-glitterProcessing Compatibility:
CO2 Laser engraving and cutting or CNC/Rotary engraving and routing, configured according to orderTypical Thickness:
1.3 mm and 1.5 mm; other thicknesses subject to material and order confirmationSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Equipment identification plates, machine labels, control-panel legends, office and studio signs, retail displays and award plaques
Mirror Blue Red Core Engraving Sheet LYS-8873 combines a smooth high-reflection mirror-blue face with a continuous red contrast base for permanent red engraving. It is different from mirror-green/red-core LYS-8331 and brushed-blue/black-core LYS-8310, and it should not be described as solid metal, painted aluminum or ordinary transparent mirror acrylic. Developed for professional engravers, sign manufacturers, material distributors and OEM buyers, it is suitable for equipment identification, control-panel legends, modern office signs, retail displays and recognition plaques. CO2 Laser orders use an acrylic base, while CNC/Rotary orders use an ABS base according to the buyer's processing route.
Model:LYS-8873
Send Inquiry
Product Description
LYSHIRE MIRROR ENGRAVING SERIES | LYS-8873
Mirror Blue Red Core Engraving Sheet
LYSHIRE LYS-8873 is a two-ply engraving sheet with a smooth, high-reflection mirror-blue face and a continuous red contrast base. Developed for professional engravers, sign manufacturers, material distributors and OEM buyers, it creates permanent red legends and graphics without printing, vinyl lettering or paint filling.
Color StructureMirror Blue / Red
Sheet StructureTwo-Ply, Two-Color Plastic
ProcessingCO2 Laser or CNC / Rotary
Material Value
Reflective Mirror Blue with Permanent Red Engraving

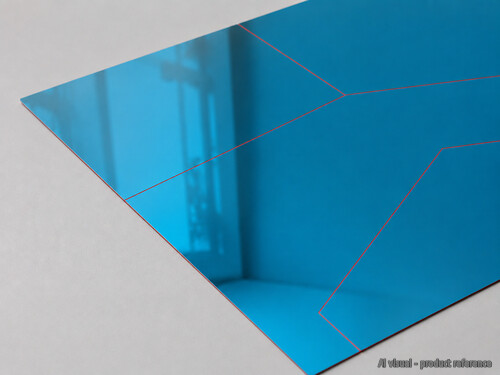

Smooth Mirror-Blue Finish
The reflective blue face creates controlled highlights for premium identification, interior signage and recognition displays while remaining a lightweight engraving plastic.
Blue-to-Red Contrast
Engraving selectively removes the micro-thin mirror-blue cap and exposes the continuous red base for permanent letters, numbers, symbols and line graphics.
Process-Specific Base Selection
CO2 laser orders use an acrylic base, while CNC and rotary orders use an ABS base, retaining the same mirror-blue-over-red visual structure.
Mirror Blue—not Brushed Blue or Solid Metal
LYS-8873 has a smooth reflective face without directional brush lines, grain, glitter or a matte texture. It is a layered engraving plastic that reveals red when engraved; it is not a solid blue metal plate, painted aluminum, printed film or ordinary transparent mirror acrylic. This distinction helps buyers select the correct material from digital images and physical samples.
Technical Data
Product Specifications
| Model | LYS-8873 |
|---|---|
| Color Structure | Mirror Blue Face / Continuous Red Base |
| Sheet Structure | Two-ply engraving plastic sheet with a contrasting red base |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth high-reflection mirror blue; non-brushed, non-textured and non-glitter |
| Standard Sheet Size | 600 × 1200 mm |
| Other Sizes | 305 × 610 mm, 610 × 1220 mm and custom-cut dimensions available by order |
| Typical Thickness | 1.3 mm and 1.5 mm; other thicknesses subject to material and order confirmation |
| Compatible Processing | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Optional Backing | Pressure-sensitive adhesive backing available |
| Supply Type | Wholesale full sheets, mixed-color orders, custom cutting and OEM supply |
Processing

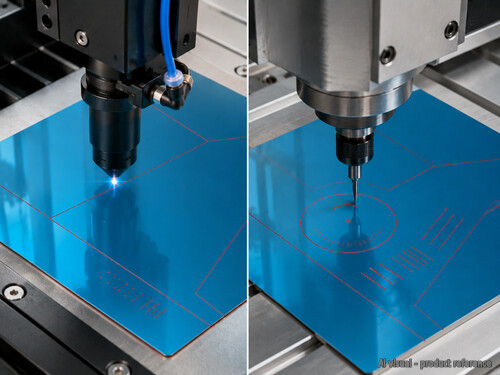

Configured for Laser or CNC / Rotary Engraving
For CO2 laser processing, LYSHIRE supplies the mirror-blue-over-red appearance with an acrylic base. For CNC or rotary engraving, the corresponding version uses an ABS base. Buyers should confirm the processing route before ordering and test power, speed, focus, cutter geometry and engraving depth on the supplied configuration before batch production.
- Permanent red-reveal lettering, numbers and technical graphics
- Laser or CNC cutting of custom plate and sign profiles
- Drilling for screws, rivets or other mounting requirements
- Optional adhesive backing for flat installation
Mirror Color and Sample Approval
Reflective blue surfaces can appear lighter, darker, more cyan or more teal according to lighting direction, surrounding reflections and screen display. Buyers requiring a specific blue tone should approve a physical sample and confirmed production batch rather than relying only on digital images.
B2B Applications

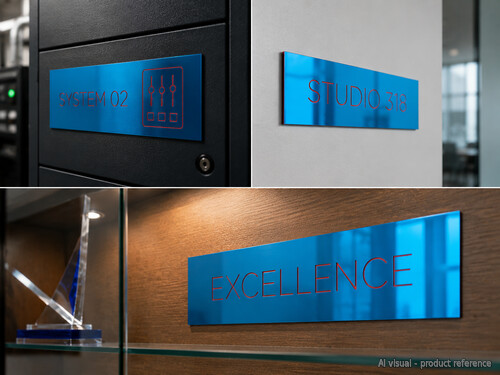

High-Impact Identification for Industrial and Interior Projects
The reflective blue surface and permanent red contrast suit fabricators and distributors serving projects that require a distinctive two-color mirror finish:
- Equipment identification plates and machine labels
- Control-panel legends and electrical cabinet identification
- Modern office, studio and meeting-room signs
- Retail displays and branded interior identification
- Award, recognition and premium presentation plaques
Wholesale Supply
Full Sheets, Mixed Colors and Custom-Cut Orders
LYSHIRE supplies mirror-finish engraving sheets to material distributors, sign manufacturers, engraving companies and OEM buyers. Mixed colors can be arranged within the standard 500-sheet MOQ, subject to selected thickness, base material and packing requirements. Qualified B2B buyers can request samples to verify the mirror-blue tone, red engraving contrast and processing compatibility before volume purchasing.
For an accurate quotation, provide the required sheet size, thickness, quantity, processing method, adhesive requirement, application and destination market.
Buyer Questions
Frequently Asked Questions
What color appears after LYS-8873 is engraved?
Engraving through the mirror-blue face exposes the continuous red base, producing permanent red letters, symbols and graphics.
Is LYS-8873 a brushed or textured blue sheet?
No. LYS-8873 has a smooth high-reflection mirror-blue face without brush lines, grain or glitter. LYS-8310 is the separate brushed-blue product with a black core.
How is LYS-8873 different from LYS-8331?
Both reveal a red base, but LYS-8873 has a mirror-blue face. LYS-8331 has a mirror-green face and should remain a separate color-and-core combination.
Can LYS-8873 be used for both laser and rotary engraving?
Yes. CO2 laser orders use an acrylic base, while CNC and rotary orders use an ABS base. The buyer's processing method should be confirmed before production.
Are adhesive backing and custom-cut sizes available?
Yes. Pressure-sensitive adhesive backing and custom-cut dimensions can be supplied according to the confirmed order specification.
