Network Cabinet Identification Engraving Laminate
Color Structure:
Smooth matte deep-violet face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin colored capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Shallow recessed white cabinet IDs, row and rack references, network-area wording and fiber-panel identifiersAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Network Cabinet Identification Engraving Laminate LYS-7015 has a smooth matte deep-violet face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white cabinet IDs, row and rack references, network-area wording and fiber-panel identifiers without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. The page serves infrastructure-identification producers, data-center contractors, system integrators, engraving shops and distributors purchasing raw material for network-cabinet and rack identification. Final wording, numbering, placement, mounting and project-standard compliance remain project-specific.
Model:LYS-7015
Send Inquiry
Product Description
LYSHIRE NETWORK CABINET IDENTIFICATION MATERIAL | LYS-7015
Network Cabinet Identification Engraving Laminate

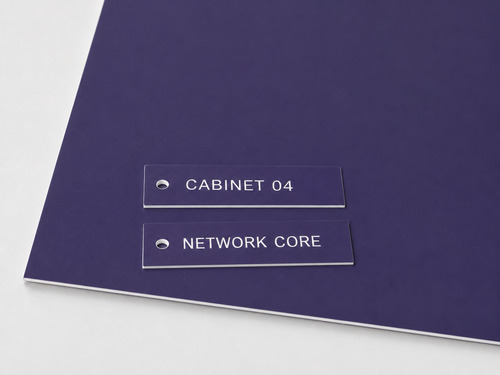

Network Cabinet Identification Engraving Laminate LYS-7015 is a two-ply fabrication material with a smooth matte deep-violet face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals recessed white cabinet IDs, row and rack references, network-area wording and fiber-panel identifiers without printed ink, vinyl lettering or paint fill. It is supplied as raw sheets and optional cut blanks for professional data-center and network-infrastructure identification production.
Material FormatTwo-Ply Laminate Stock
Engraved ResultRecessed White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Network Cabinets and Data-Center Identification
Readable Infrastructure References
The continuous white core produces clear recessed cabinet numbers, row and rack references, fiber-distribution wording and equipment-area identifiers without an added printed surface.
Full Sheets or Repeat Blanks
Fabricators and distributors can order standard sheets, repeated rectangular blanks, drilled profiles or project-specific cut parts for scheduled infrastructure-identification programs.
Separate Processing Bases
Specify an acrylic base for CO2 laser fabrication or an ABS base for CNC and rotary production. These are separate order configurations, not one universal substrate.
Raw Identification Material, Not a Network Compliance System
LYS-7015 provides process-ready material for buyers producing cabinet, row, rack and fiber-panel identifiers. LYSHIRE supplies sheets and optional blanks; wording, numbering logic, label placement, mounting method, asset-database integration and site-specific standards remain the responsibility of the fabricator and end user.
Technical Data
LYS-7015 Product Parameters
| Color Structure | Smooth matte deep-violet face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin colored cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Shallow recessed white cabinet IDs, row and rack references, network-area wording and fiber-panel identifiers |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Supply and Options | Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review |
Processing

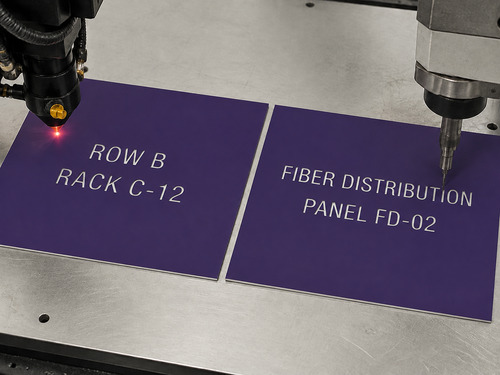

Select the Base for the Fabrication Method
LYS-7015 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The face/core appearance can be coordinated across both routes, but the correct base must be selected before production.
- Use the acrylic configuration for CO2 laser engraving and vector-cut cabinet-label blanks
- Use the ABS configuration for CNC or rotary engraving, drilling and mechanical profiling
- Test power, speed, cutter geometry, hole diameter and engraving depth before batch production
- Confirm final wording, numbering and mounting method against the buyer's infrastructure-identification plan
Application Images Are Fabrication References
The sample wording shown in the images explains possible network-cabinet and data-center applications. Cabinet IDs, rack names, fiber-panel wording, placement, fasteners, adhesive systems and site rules must be confirmed for each project. The deep-violet color is a product attribute and is not presented as a universal infrastructure color code.
Application Boundary

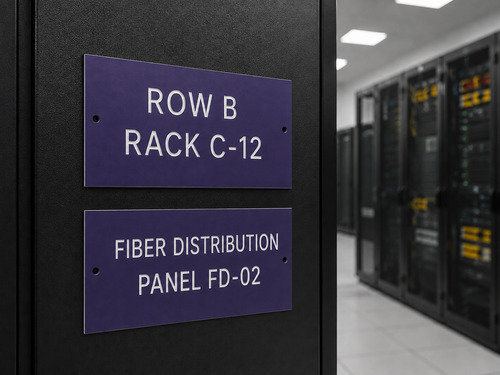

Network Cabinets, Server Racks and Fiber Areas
Network Cabinet Identification Engraving Laminate supports professional identification fabricators producing durable infrastructure references. Typical material uses include:
- Data-center row and rack identification plates
- Network and server cabinet number labels
- Fiber-distribution and equipment-area identifiers
- Telecom-room cabinet and zone references
- Repeat OEM blank programs with approved wording and dimensions
Wholesale Material Supply
Engraving Laminate for Network-Infrastructure Identification Fabricators
LYSHIRE supplies LYS-7015 to infrastructure-identification producers, data-center contractors, engraving shops, system integrators and material distributors. Qualified B2B buyers can request samples to confirm the matte surface, white reveal, sheet thickness and selected acrylic or ABS processing route before bulk purchasing.
For an accurate quotation, provide sheet size, thickness, quantity, processing method, label dimensions, hole or adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7015?
Shallow engraving removes the micro-thin matte violet face and reveals the continuous white core as recessed cabinet IDs, row and rack references, network-area wording and fiber-panel identifiers.
Is LYS-7015 supplied as finished compliant data-center labels?
This page covers raw sheet stock and optional cut blanks. Variable data, final wording, placement, mounting hardware, installation and any project-standard review remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Can drilled blanks and adhesive backing be supplied?
They can be reviewed as order options. State the label dimensions, hole pattern, mounting surface, operating environment and adhesive requirement before quotation.
Application images are AI-assisted visual references created to explain material structure, processing routes and possible fabrication uses. Final shade, thickness, dimensions, engraved detail and mounting configuration must be confirmed by physical sample and order specification.
