Plastic Identification Plate Stock for Plant Rooms
Color Structure:
Smooth matte muted olive-gray-green face / Continuous black core and backSheet Structure:
Two-ply front-engraving plastic sheet with a micro-thin olive face capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed black information with narrow olive groove walls and a black core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size identification blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Plastic Identification Plate Stock for Plant Rooms LYS-7033 has a smooth matte muted olive-gray-green face over one continuous black core and black back. Shallow front engraving removes only the micro-thin olive face and creates slightly recessed black letters and numbers with narrow olive groove walls. The material is intended for professional fabricators producing fixed plant-room and utility-area identifiers for filtration loops, air handlers, pump groups, service manifolds and mechanical equipment zones. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Olive and black are physical color attributes only; the material does not by itself define a pipeline service, operating status, safety function or compliant facility-identification system.
Model:LYS-7033
Send Inquiry
Product Description
LYSHIRE PLANT ROOM IDENTIFICATION STOCK | LYS-7033
Plastic Identification Plate Stock for Plant Rooms

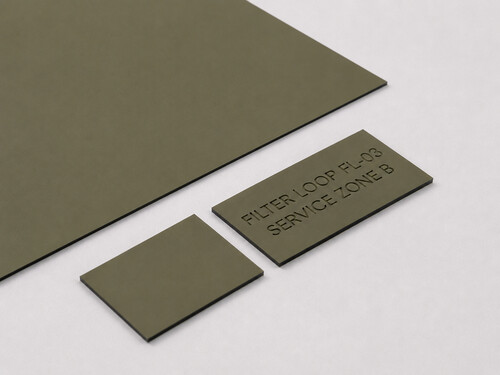

LYS-7033 is plastic identification plate stock with a smooth matte muted olive-gray-green face over one continuous black core. Shallow front engraving removes the micro-thin olive cap and forms slightly recessed black information. It is supplied as full sheets and optional repeat blanks for professional plant-room and utility-equipment identification fabrication.
Material FormatIdentification Plate Stock
Engraved ResultSlight Recess / Black Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Olive and Black Stock for Fixed Utility Identification
Visible Two-Ply Construction
A hairline olive face is removed to expose a continuous black core. Black side edges, hole walls and shallow engraved bottoms distinguish the material from metal plates and surface printing.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated plant-room plate blanks, drilled profiles or project-specific cut parts for approved equipment schedules.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Identification Stock, Not a Completed Facility System
LYS-7033 provides process-ready material for filtration loops, air handlers, pump groups, service manifolds and mechanical-equipment zones. Final wording, color coding, mounting and regulatory review remain the responsibility of the fabricator and end user.
Technical Data
LYS-7033 Product Parameters
| Color Structure | Smooth matte muted olive-gray-green face / Continuous black core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic sheet with a micro-thin olive face cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed black information with narrow olive groove walls and a black core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |
Processing
Large-Format Production with Real Plant-Room Content

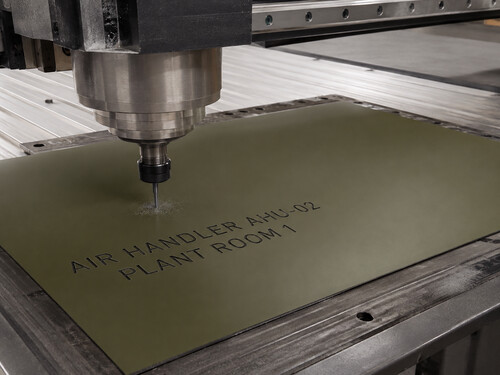

The processing view uses one physically realistic large CNC machine, matching spindle and professional worktable. The sheet and active engraving area remain the subject while meaningful air-handler and plant-room wording demonstrates a real terminal application.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test speed, cutter geometry and shallow engraving depth before batch production
- Confirm wording, character height, blank dimensions, holes and mounting environment

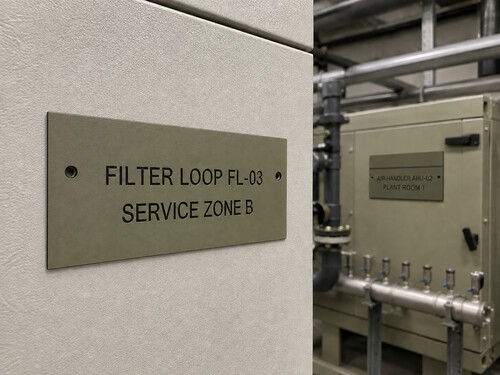

Application Images Are Fabrication References
Filter-loop, air-handler, plant-room and service-zone wording demonstrates possible fixed-identification uses only. Olive and black do not automatically define a pipe service, operating state, warning level or compliant facility color code.
Application Boundary
Plant Rooms and Fixed Utility Equipment
Typical raw-material uses include:
- Filtration-loop and service-zone identifiers
- Air-handler and ventilation-equipment plates
- Pump-group and mechanical-equipment labels
- Utility manifolds and distribution-area identification
- Repeat blanks produced to an approved plant-room schedule
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies LYS-7033 olive and black plastic identification plate stock to plant-equipment builders, industrial-identification producers, engraving shops, facility-label fabricators and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm shade, surface and engraving contrast before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, blank dimensions, hole or adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7033?
Shallow engraving removes the micro-thin matte olive face and exposes the continuous black core. The correct result has slight recess depth, narrow olive groove walls and a black bottom rather than a printed or raised appearance.
How is this different from valve tags or equipment data nameplates?
LYS-7033 is positioned as stock for fixed plant-room and utility-equipment identifiers. LYS-7013 remains the loose valve and pipeline tag route, while LYS-7031 remains the equipment-data nameplate route.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks, holes and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
