Red White Rotary Engraving Plastic Sheet
Color Structure:
Matte red face / White coreStructure:
Two-ply front-engraving plastic sheetBase Material:
ABS configuration for CNC / Rotary orders; acrylic configuration supplied separately for CO2 Laser ordersSurface Finish:
Smooth matte, low-gloss red faceProcessing Compatibility:
CNC / rotary engraving, routing, profile cutting and drilling on ABS; CO2 laser processing only on separately specified acrylicStandard Thickness:
1.5 mm; other available thicknesses subject to order confirmationSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Machine function plates, valve tags, equipment legends, asset labels and industrial identification parts

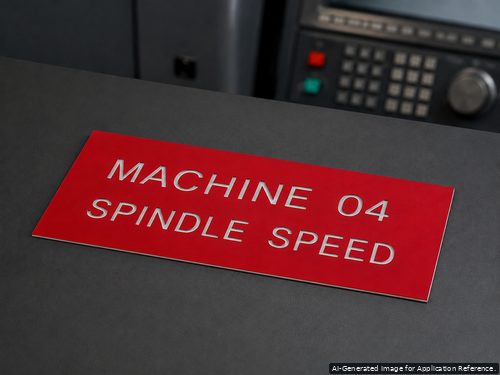

Red White Rotary Engraving Plastic Sheet LYS-7129 combines a smooth matte red face with a continuous white core in a two-ply front-engraving structure. The primary ABS configuration is supplied for CNC and rotary engraving, routing, profile cutting and drilling. A cutter removes the thin red cap and exposes permanent recessed white lettering and symbols without printed ink, applied vinyl or paint filling. The sheet supports batch production of machine function plates, valve tags, equipment legends and industrial asset labels. A red / white acrylic configuration is available separately for CO2 laser orders and should not be treated as the same physical sheet.
Model:LYS-7129
Send Inquiry
Product Description
LYSHIRE ROTARY ENGRAVING SERIES | LYS-7129
Red White Rotary Engraving Plastic Sheet
LYSHIRE LYS-7129 is a red-face / white-core two-ply engraving plastic supplied in an ABS-base configuration for CNC and rotary engraving. A cutter removes the thin matte red cap and exposes permanent recessed white information for machine plates, valve tags, asset labels and other mechanically engraved identification parts.
Primary ConfigurationABS for CNC / Rotary
Color StructureMatte Red / White Core
Sheet StructureTwo-Ply Front Engraving
Mechanical Engraving
Built Around the CNC and Rotary Purchasing Route
ABS Base for Tool Engraving
The primary construction is selected for CNC and rotary engraving, routing, profile cutting and drilling.
Recessed White Information
White wording and symbols come from the continuous core after the red cap is removed, without printing or paint filling.
Batch Identification Parts
Stable sheet stock supports repeated machine legends, valve tags, asset plates and equipment identification programs.
One Two-Ply Sheet, Not a Red Plate with Applied White Text
LYS-7129 has a thin matte red surface layer over a continuous white core. Mechanical engraving removes only the red cap at the required tool depth. The visible white result remains part of the sheet construction and does not depend on vinyl lettering, ink, an inlay or a separate white panel.
Technical Data
LYS-7129 Product Parameters
| Model | LYS-7129 |
|---|---|
| Color Structure | Matte red face / White core |
| Structure | Two-ply front-engraving plastic sheet |
| Base Material | ABS configuration for CNC / Rotary orders; acrylic configuration supplied separately for CO2 Laser orders |
| Surface Finish | Smooth matte, low-gloss red face |
| Processing Compatibility | CNC / rotary engraving, routing, profile cutting and drilling on ABS; CO2 laser processing only on the separately specified acrylic version |
| Standard Thickness | 1.5 mm; other available thicknesses subject to order confirmation |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Machine function plates, valve tags, equipment legends, asset labels and industrial identification parts |
Process Selection
Specify the Engraving Machine Before Ordering
The same red / white appearance can be produced with different base constructions. Confirm the machine and cutting method before production so the sheet is matched to the intended process.
- CNC or rotary engraving, routing and drilling: order the ABS-base configuration featured on this page
- CO2 laser engraving and vector cutting: order the separately configured acrylic-base version
- Test tool depth, cutter geometry, spindle speed and feed before batch production
The ABS and Acrylic Versions Are Separate Configurations
This page is built around the ABS sheet used for CNC and rotary engraving. For CO2 laser engraving and cutting, specify the separately supplied acrylic-base red / white version. Do not assume one physical sheet is universal for every machine.
B2B Applications

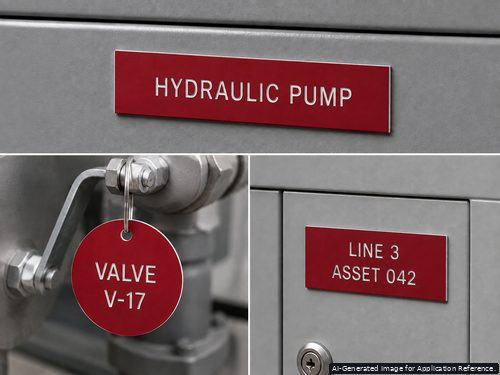

Convert ABS Sheet Stock into Repeat Identification Parts
Rotary engravers, industrial label producers and equipment OEMs can machine the sheet into coordinated parts such as:
- Machine function and operating-position plates
- Round valve, pipe and service tags with drilled holes
- Equipment asset and production-line identification plates
- Control-cabinet legends and replaceable maintenance labels
- Custom routed shapes for OEM identification programs
Tool Depth Controls the White Reveal
Set the cutter deep enough to remove the red cap cleanly without unnecessarily cutting into the white core. Final parameters depend on cutter geometry, spindle speed, feed rate, sheet thickness, hold-down method and the required detail size.
Wholesale Supply
ABS Rotary Sheets, Custom Cutting and Qualified B2B Samples
LYSHIRE supplies rotary engraving plastic sheets to engraving-material distributors, industrial label manufacturers, equipment OEMs, sign fabricators and CNC engraving workshops. Mixed products can be arranged within the standard 500-sheet MOQ, subject to material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm color, surface finish, cutter depth and processing performance before bulk purchasing.
For an accurate quotation, provide the sheet size, thickness, quantity, machine type, cutter process, adhesive requirement and destination market.
Frequently Asked Questions
Red White Rotary Engraving Plastic Sheet FAQ
Is the white lettering printed on the red face?
No. Rotary or CNC engraving removes the thin red surface layer and exposes the continuous white core below.
Is LYS-7129 primarily an ABS or acrylic sheet?
This page is centered on the ABS-base configuration for CNC and rotary engraving. A red / white acrylic-base configuration is supplied separately for CO2 laser orders.
Can the ABS version be used as a universal CO2 laser sheet?
No. Confirm the process before ordering. Use the separately specified acrylic version for CO2 laser engraving and cutting.
What information is needed for a quotation?
Provide the required size, thickness, quantity, processing machine, adhesive option, custom cutting needs and delivery destination.
