Selector Switch Legend Plate Material
Color Structure:
Smooth matte pale sage-gray face / Continuous mustard-gold core and backSheet Structure:
Two-ply front-engraving material with a micro-thin sage-gray capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed mustard-gold legends with visible shallow groove walls and gold core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, selector-switch blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review

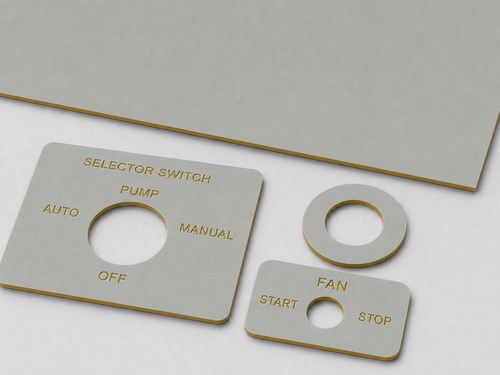

Selector Switch Legend Plate Material LYS-7022 has a smooth matte pale sage-gray face over one continuous mustard-gold core. Shallow front engraving removes the micro-thin face layer and creates slightly recessed gold legends with visible narrow groove walls and a gold core bottom. It is positioned as raw material for selector-switch plates, push-button legends, indicator-light labels and operator-panel references. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Final wording, hole pattern, switch compatibility, mounting and destination requirements remain project-specific. No non-conductive, electrical-insulation, fire, safety-compliance or certified panel-performance claim is made.
Model:LYS-7022
Send Inquiry
Product Description
LYSHIRE LEGEND PLATE FABRICATION MATERIAL | LYS-7022
Selector Switch Legend Plate Material
LYS-7022 is a two-ply fabrication material with a smooth matte pale sage-gray face over one continuous mustard-gold core. Shallow front engraving removes the micro-thin face and forms slightly recessed gold legends with visible groove depth. It is supplied as raw sheets and optional repeated blanks for selector switches, push buttons and indicator-light plates.
Material FormatTwo-Ply Legend Plate Stock
Engraved ResultSlight Recess / Gold Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Switch, Button and Indicator Legends
True Shallow Engraving
Mustard-gold legends are exposed from the continuous core. Narrow groove walls and a shallow gold bottom distinguish engraving from printing without creating an excessively deep routed appearance.
Full Sheets or Profiled Blanks
Fabricators can order standard sheets, rectangular or circular blanks, drilled profiles and project-specific cut parts for approved operator-panel schedules.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Plate Material, Not a Complete Electrical Component
LYS-7022 provides process-ready stock for legend-plate fabricators. Final wording, hole geometry, selector-switch compatibility, viewing arrangement, mounting and project review remain the responsibility of the fabricator and end user.
Technical Data
LYS-7022 Product Parameters
| Color Structure | Smooth matte pale sage-gray face / Continuous mustard-gold core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin gray-green cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed gold legends with shallow groove walls and a mustard-gold core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |
Processing

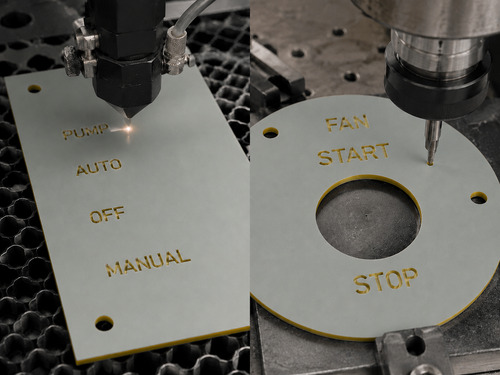

Select the Base for the Fabrication Method
The sage-gray-and-gold appearance can be coordinated across two separately supplied bases. Test engraving depth so the face is fully removed while the recess remains shallow, crisp and legible.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm plate dimensions, opening diameter, wording and mounting before production

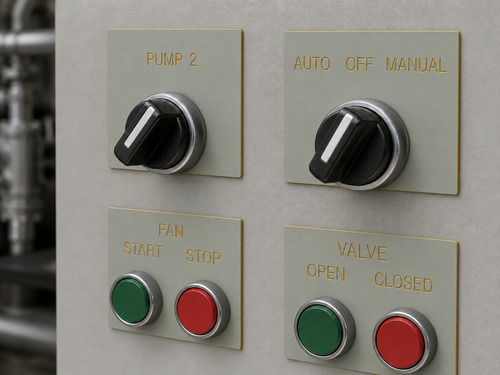

Application Images Are Fabrication References
Auto-off-manual, fan start-stop and valve open-closed wording demonstrates possible operator-panel uses only. Final control logic, symbols, equipment compatibility and compliance review must be confirmed by the buyer and end user.
Application Boundary
Selector Switches, Push Buttons and Indicator Lights
Typical raw-material uses include:
- Auto-off-manual selector-switch plates
- Start-stop push-button legend plates
- Indicator-light and machine-state references
- Pump, fan and valve operator-panel legends
- Repeated drilled blanks produced to an approved panel schedule
Wholesale Material Supply
Legend Plate Stock for Panel and Equipment Fabricators
LYSHIRE supplies LYS-7022 to panel builders, industrial-identification producers, engraving shops, equipment manufacturers and material distributors. Qualified buyers can request samples to confirm shade, gold reveal, thickness and selected processing base.
For quotation, provide sheet size, thickness, quantity, processing method, plate dimensions, opening diameter, hole pattern, adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7022?
Shallow engraving removes the micro-thin matte sage-gray face and exposes the continuous mustard-gold core. The correct result has slight recess depth, a narrow groove wall and a gold bottom rather than a printed or raised appearance.
Is LYS-7022 a complete or certified electrical component?
No. It is raw fabrication material. Final plate geometry, switch compatibility, legend meaning, mounting and compliance review remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can drilled blanks and adhesive backing be supplied?
They can be reviewed after plate dimensions, opening diameter, hole pattern, mounting surface and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
