Three Ply Engraving Sheet

Three Ply Engraving Sheet

LYSHIRE Three Ply Engraving Sheet, model LYS-WRB081, is a multi-color engraving material developed for architectural signage, industrial identification, wayfinding systems, control panels, nameplates and custom sign manufacturing. Its three-layer construction provides additional color and design possibilities compared with a conventional two-ply engraving sheet.

The material is intended for international B2B buyers including signage manufacturers, engraving workshops, architectural sign companies, industrial label suppliers, equipment manufacturers, distributors and OEM customers. It can be supplied as full sheets for customer fabrication or processed into custom signs, panels and identification components according to drawings.

Three-Layer Color Construction

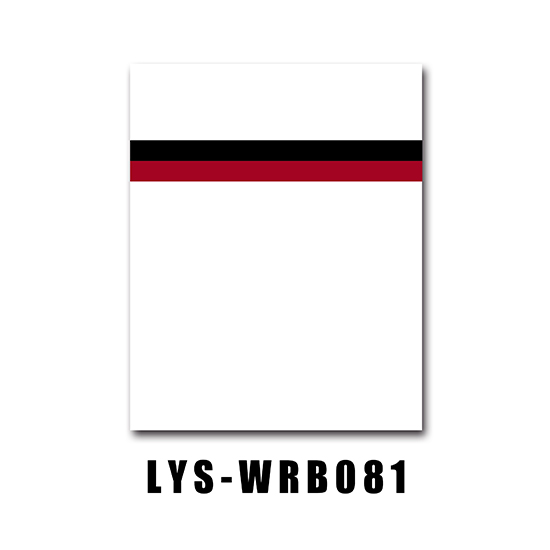

The Three Ply Engraving Sheet uses a configurable three-layer color structure. The LYS-WRB081 application example combines a white surface, a black intermediate color layer and a red base color layer. Controlled engraving can expose black primary information and red secondary graphics from the same sheet.

This construction allows sign manufacturers to create primary text, secondary information, borders, symbols, directional arrows and warning accents without relying entirely on paint filling, printed overlays or separately laminated colored components.

The exact layer order can be customized for B2B projects. Customers may specify the required top, middle and base colors according to their intended engraving result. Color combinations should be confirmed before sample or mass production because the visible graphic color depends on both the layer construction and engraving depth.

A three-layer sheet is particularly useful when a project requires two contrasting graphic colors on one surface. For example, black can be used for primary operating information while red can identify warnings, emergency functions, service points or directional accents.

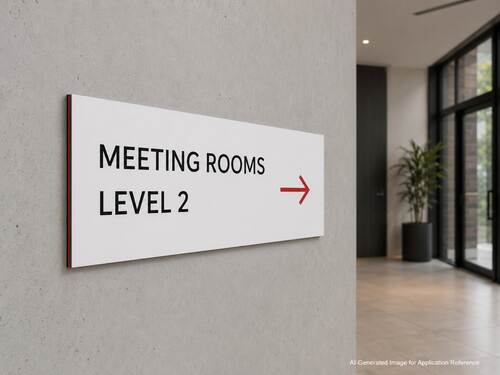

Architectural wayfinding application. AI-generated image for application reference.

Architectural and Wayfinding Signage

Three-layer engraving material provides additional design flexibility for architectural sign systems. It can be fabricated into room identification signs, directional signs, building directories, floor identification, door signs and complete wayfinding programs.

Different exposed colors can help separate primary information from secondary information. Main destination names can be engraved in one color, while arrows, floor numbers, warning messages or service information can be produced in another color.

This color separation improves visual organization and helps sign manufacturers produce coordinated identification systems. Custom colors, dimensions, mounting holes, rounded corners and adhesive backing can be specified according to the architectural project.

Laser, Rotary and CNC Processing

Three Ply Engraving Sheet is compatible with CO2 laser engraving, rotary engraving and CNC machining, subject to the confirmed material and thickness. Laser engraving can produce detailed text, logos, symbols and graphic patterns, while rotary engraving provides controlled depth for signs, nameplates and industrial identification.

Accurate depth control is important when processing three-layer material. The first engraving depth may expose the intermediate color, while a deeper controlled pass may reach the third color layer. Processing parameters should be tested before bulk production to achieve the required contrast without cutting unnecessarily through the sheet.

CNC fabrication can be used to produce custom outside profiles, mounting holes, switch openings and other panel details. Depending on the confirmed material option, the sheet can also be saw cut, drilled, heat bent, UV printed and screen printed.

Engraving depth, laser power, processing speed and tool selection may vary according to the substrate, sheet thickness, layer construction and required graphic color. Customers should provide their intended equipment and processing method when requesting samples.

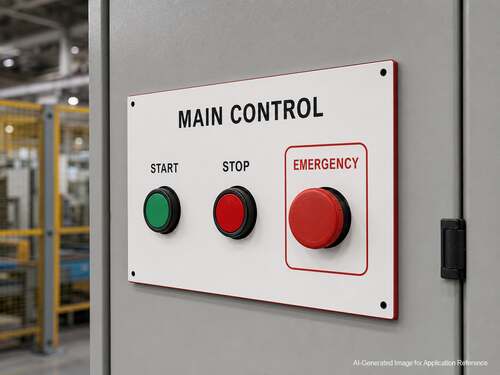

Industrial control panel application. AI-generated image for application reference.

Control Panels and Industrial Identification

Three Ply Engraving Sheet can be used for machine control panels, electrical cabinets, motor control centers, operator stations and equipment identification. Primary operating information can be shown in black, while emergency functions, service points or warning graphics can be highlighted in red.

Typical engraved content includes equipment names, switch functions, operating positions, serial references, maintenance instructions and safety information. Custom openings can be produced for push buttons, indicator lights, switches, control knobs and other panel-mounted components.

Industrial identification applications also include machine labels, equipment nameplates, asset tags, service markers and operating instruction plates. Finished parts can be supplied with custom text, symbols, mounting holes, rounded corners, CNC cutouts or adhesive backing.

Thickness and Sheet Customization

LYSHIRE offers an extensive thickness capability for engraving sheet projects. Regular thickness options include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm. Thicknesses above 3.0 mm can be custom manufactured according to the required structure, application and order quantity.

Availability should be confirmed for the selected three-ply construction. The number and thickness of the individual color layers must be coordinated with the required total sheet thickness and engraving result.

Ultra-thin options can support lightweight overlays, inserts and specialized fabrication projects. Medium thicknesses such as 1.3 and 1.5 mm are suitable for many signage and industrial identification applications. Thicker constructions can provide additional rigidity for larger signs and panels.

Standard and custom sheet sizes are available. Buyers can also request custom colors, layer combinations, surface finishes, color matching, adhesive backing and cut-to-size production.

Material and Surface Options

Material options may include ABS, PMMA and modified acrylic according to the required processing method, surface finish and application environment. Final material selection should be confirmed before ordering.

Available surface options include matte, satin, gloss, non-glare, brushed, mirror, metallic, textured, wood grain, transparent, translucent, opaque and selected special-effect finishes.

For products with a metallic visual appearance, the material remains an engraving plastic unless a different substrate is specifically confirmed. Expressions such as brushed metal effect, metallic finish or mirror finish describe the visual surface and do not mean that the sheet is made from solid metal.

Indoor and Outdoor Performance

Material options are available for indoor and outdoor applications requiring UV and weather resistance. LYSHIRE engraving materials can also provide scratch, abrasion, moisture, chemical and impact resistance according to the selected construction.

Outdoor performance depends on the material option, color construction, installation method, climate, exposure level and cleaning conditions. Buyers should provide the expected application environment so that LYSHIRE can evaluate an appropriate material and surface construction.

RoHS and REACH compliance documentation and raw material test reports are available upon request. This standard product should not be described as flame retardant or assigned a UL 94 rating unless a separately developed and tested construction is confirmed.

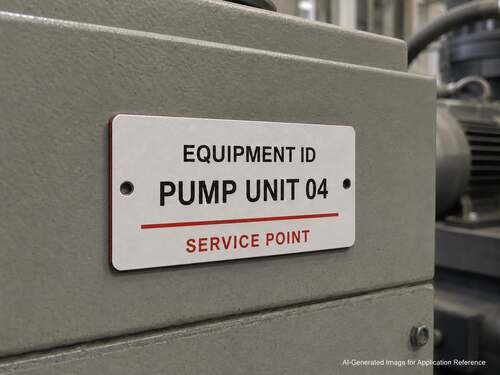

Industrial equipment identification application. AI-generated image for application reference.

OEM and B2B Supply

LYSHIRE supports OEM manufacturing, private labeling, distributor supply and bulk production. Custom services include color matching, custom three-layer combinations, custom thickness, custom sheet size, cut-to-size production, engraving, CNC fabrication, adhesive lamination and custom packaging.

Buyers may submit CAD files, drawings, artwork or sample components for evaluation. Finished parts can be produced with custom text, logos, symbols, holes, cutouts, rounded corners and mounting features.

To receive an accurate quotation, please provide the required three-layer color order, material type, thickness, sheet dimensions, surface finish, quantity and intended processing method. For finished components, please also provide the artwork, finished dimensions, engraving depths, hole positions, cutout details and mounting requirements.

Frequently Asked Questions

What is a Three Ply Engraving Sheet?

A Three Ply Engraving Sheet is a layered engraving material with three configurable color layers. Controlled engraving can expose different layers to create multi-color text, symbols, borders and graphic accents.

How is it different from a two-ply engraving sheet?

A conventional two-ply sheet normally provides one surface color and one contrasting core color. A three-ply sheet adds another color layer, creating more options for multi-color engraving and visual differentiation.

Can the three-layer colors be customized?

Yes. The top, middle and base colors can be discussed according to the required engraving result, material availability, order quantity and production feasibility.

Which thicknesses are available?

Regular thickness options include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm. Thicknesses above 3.0 mm can be custom produced. Availability should be confirmed for the selected three-ply structure.

Which engraving methods are supported?

Available processing options include CO2 laser engraving, rotary engraving, CNC machining, laser cutting, drilling and saw cutting, subject to the confirmed material and thickness.

Is the material suitable for outdoor signage?

Outdoor-grade, UV-resistant and weather-resistant material options are available. Final material selection should be based on the actual installation environment and service requirements.

Can LYSHIRE supply finished signs and panels?

Yes. LYSHIRE can evaluate cut-to-size sheets, engraved signs, control panels, equipment labels, mounting holes, CNC cutouts, adhesive backing and other fabrication requirements based on customer drawings.

Are samples and test reports available?

Samples, RoHS and REACH compliance documentation and raw material test reports are available upon request. Sample specifications and shipping arrangements should be confirmed before ordering.
