ABS Engraving Sheet for Control Panels
Color Structure:
Smooth matte dark-green face / Continuous black core and backSheet Structure:
Two-ply front-engraving plastic sheet with a micro-thin dark-green capSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed black information with visible shallow green groove walls and a black core bottomSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableBase Material:
ABSProcessing Compatibility:
CNC Engraving / Rotary Engraving / Routing / DrillingAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; custom 2.0 and 2.5 mm availableSupply and Options:
Full sheets, cut-to-size legend blanks, drilled profiles, optional 3M 468MP adhesive backing and custom color matching
LYSHIRE ABS Engraving Sheet for Control Panels LYS-7027 is a two-ply ABS material with a smooth matte dark-green face and continuous black core, developed for CNC and rotary engraving. It provides clear, durable contrast for control-panel legend plates, electrical identification, switchgear labels and industrial equipment marking, with routing, drilling, custom sizes and optional 3M 468MP adhesive backing available.
Model:LYS-7027
Send Inquiry
Product Description
LYSHIRE ABS CONTROL PANEL ENGRAVING SHEET | LYS-7027
ABS Engraving Sheet for Control Panels

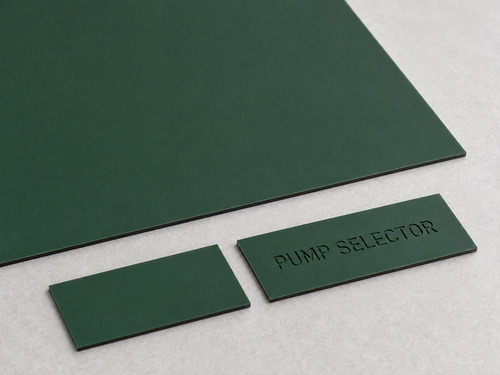

LYS-7027 is a two-ply ABS engraving sheet with a smooth matte dark-green face over a continuous black core. Shallow CNC or rotary engraving removes the micro-thin green surface and exposes the contrasting black core, producing clear and durable legends for control panels, electrical equipment and industrial identification.
Material Two-Ply ABS
Engraved Result Slight Recess / Black Reveal
Processing CNC / Rotary Engraving
B2B Material Positioning
ABS Legend Plate Material for Control-Panel Fabricators
Clear Shallow Engraving
Black information is exposed from the continuous core. Shallow engraving provides strong visual contrast while retaining the clean, professional appearance required for industrial legend plates and equipment identification.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated selector-switch legend blanks, drilled profiles or project-specific cut parts for approved panel schedules and production runs.
CNC and Rotary Processing
The ABS construction is intended for CNC and rotary engraving, routing and drilling where stable machining, repeatable dimensions and durable engraved identification are required.
Raw Legend Material, Not a Completed Control System
LYS-7027 provides process-ready material for selector-switch legends, pushbutton labels, operator-panel identifiers and control-station marking plates. Final wording, symbol meaning, electrical design, mounting and regulatory review remain the responsibility of the fabricator and end user.
Technical Data
LYS-7027 Product Parameters
| Color Structure | Smooth matte dark-green face / Continuous black core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic sheet with a micro-thin dark-green cap |
| Base Material | ABS |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed black information with shallow green groove walls and a black core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; custom 2.0 and 2.5 mm available |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CNC Engraving / Rotary Engraving / Routing / Drilling |
| Supply and Options | Full sheets, cut-to-size legend blanks, drilled profiles, optional 3M 468MP adhesive backing and custom color matching |
Processing
CNC and Rotary Fabrication for Control-Panel Legends
LYS-7027 is designed for CNC and rotary fabrication of selector-switch legends, pushbutton labels, operator-panel identifiers and related industrial marking components. The ABS sheet can be engraved, routed, drilled and shaped according to the required panel layout.
- ABS construction for CNC and rotary engraving
- Routing and drilling for custom legend profiles and mounting holes
- Test cutter geometry, spindle settings and engraving depth before batch production
- Confirm legend wording, mounting surface, cleaning exposure and operating environment

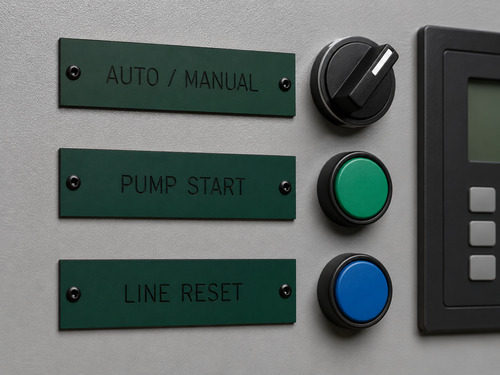

Application Images Are Fabrication References
Selector-switch, pushbutton and operator-panel wording demonstrates possible identification uses only. Dark green and black do not automatically define a safe, active, stopped, energized or hazardous condition. Final content and compliance review must be confirmed by the buyer and end user.
Application Boundary
Selector Switches, Pushbuttons and Operator Panels
Typical raw-material uses include:
- Selector-switch position legends
- Pushbutton and pilot-light identification plates
- Operator-panel function labels
- Control-station and machine-interface identifiers
- Electrical cabinet and switchgear legend plates
- Repeat blanks produced to an approved panel schedule
Wholesale Material Supply
ABS Legend Plate Material for Panel and Nameplate Fabricators
LYSHIRE supplies LYS-7027 ABS engraving sheets to panel builders, industrial-identification producers, machine builders, control-label fabricators, engraving shops and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to thickness, size, color and packing requirements. Qualified B2B buyers can request samples to confirm shade, black reveal, surface and machining performance before bulk purchasing.
For quotation, provide sheet size, thickness, quantity, processing method, blank dimensions, hole pattern, adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7027?
Shallow engraving removes the micro-thin matte dark-green face and exposes the continuous black core, producing recessed black text and graphics with clear contrast.
What is LYS-7027 mainly used for?
LYS-7027 is positioned for control-panel legends, selector-switch plates, pushbutton labels, operator-panel identification, electrical cabinets and other industrial marking applications.
What processing methods are suitable for LYS-7027?
LYS-7027 is an ABS engraving sheet intended for CNC and rotary engraving, routing and drilling. Processing settings should be tested according to sheet thickness, cutter geometry and required engraving depth.
Can cut blanks, holes and adhesive backing be supplied?
Yes. Cut-to-size legend blanks, drilled profiles and optional 3M 468MP adhesive backing can be supplied according to the required dimensions, hole pattern and mounting method.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
