Home > Products > Structure System > Two Ply Engraving Plastic > Two-Ply Nameplate Material for Equipment Data
Two-Ply Nameplate Material for Equipment Data
Color Structure:
Smooth matte neutral-gray face / Continuous dark-navy core and backSheet Structure:
Two-ply front-engraving plastic sheet with a micro-thin neutral-gray capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed dark-navy information with shallow gray groove walls and a navy core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size nameplate blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Two-Ply Nameplate Material for Equipment Data LYS-7031 has a smooth matte neutral-gray face over one continuous dark-navy core and navy back. Shallow front engraving removes only the micro-thin gray cap and creates slightly recessed navy letters and numbers with visible narrow gray groove walls. The material is intended for professional fabricators producing pump identifiers, motor data plates, serial and model references, equipment IDs and service-point nameplates. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Gray and navy are physical color attributes only; the raw material does not by itself establish a rating, approval, safety status or compliant data-plate system.
Model:LYS-7031
Send Inquiry
Product Description
LYSHIRE EQUIPMENT NAMEPLATE MATERIAL | LYS-7031
Two-Ply Nameplate Material for Equipment Data

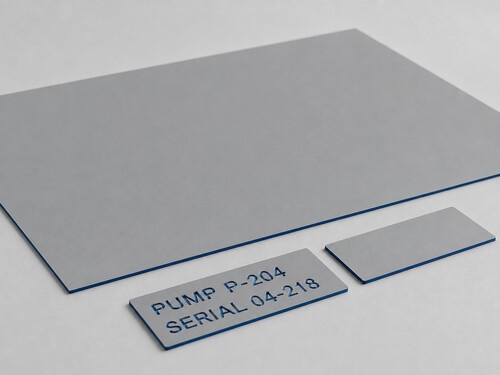

LYS-7031 is a two-ply nameplate material with a smooth matte neutral-gray face over one continuous dark-navy core. Shallow front engraving removes the micro-thin gray cap and forms slightly recessed navy information. It is supplied as raw sheets and optional repeat blanks for professional equipment-data and identification plate fabrication.
Material FormatTwo-Ply Nameplate Stock
Engraved ResultSlight Recess / Navy Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Gray and Navy Stock for Equipment-Data Fabricators
Readable Shallow Engraving
Dark-navy information is exposed from the continuous core. Narrow gray groove walls and a shallow navy bottom distinguish the result from printing while retaining a precise nameplate appearance.
Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated pump and motor data-plate blanks, drilled profiles or project-specific cut parts.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Nameplate Material, Not a Completed Rating Plate
LYS-7031 provides process-ready material for pump identifiers, motor plates, serial and model references, equipment IDs and service-point nameplates. Final wording, stated ratings, mounting and regulatory review remain the responsibility of the fabricator and end user.
Technical Data
LYS-7031 Product Parameters
| Color Structure | Smooth matte neutral-gray face / Continuous dark-navy core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving plastic sheet with a micro-thin neutral-gray cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed dark-navy information with shallow gray groove walls and a navy core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |

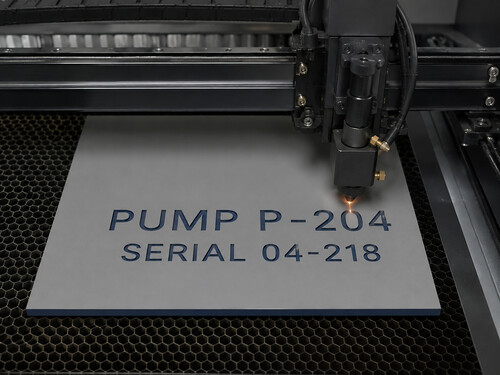

Processing
Fabricate Real Equipment Identification Content
The processing view keeps the sheet and active engraving area as the subject. It demonstrates practical pump, motor, serial and line information at real customer working angles rather than engraving process words or decorative lines.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm data fields, character height, mounting and operating environment

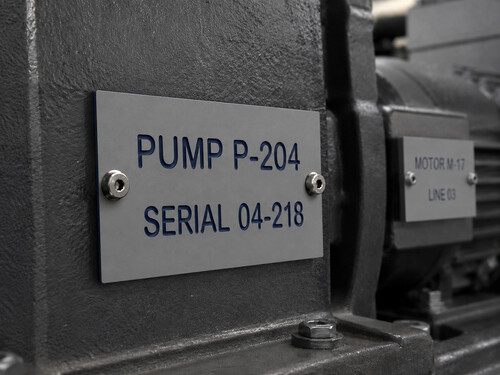

Application Images Are Fabrication References
Pump, motor, serial and line references demonstrate possible identification uses only. The displayed information does not establish a tested equipment rating, certification, safety function or regulatory approval.
Application Boundary
Pumps, Motors and Equipment Data Points
Typical raw-material uses include:
- Pump and motor identification plates
- Model and serial reference nameplates
- Line, unit and service-point identifiers
- Machine builder and OEM equipment labels
- Repeat blanks produced to an approved data schedule
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies LYS-7031 gray and navy two-ply nameplate material to equipment builders, industrial-identification producers, engraving shops, nameplate fabricators and material distributors. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm shade, surface and engraving contrast before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, blank dimensions, hole or adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7031?
Shallow engraving removes the micro-thin matte gray face and exposes the continuous dark-navy core. The correct result has slight recess depth, a narrow gray groove wall and a navy bottom rather than a printed or raised appearance.
How is this page different from machine-status or panel-legend material?
LYS-7031 is positioned for general equipment data such as pump, motor, model, serial and line references. LYS-7025 remains the machine-status plate route, while LYS-7027 remains the control-panel legend route.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks, holes and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
