UV-Resistant Smooth Green Engraving Plastic
Color Structure:
Smooth green face / Continuous white core and backStructure:
Front-engravable two-ply plastic with a thin permanently bonded green capBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth uniform green surface without mirror reflection, brush lines or granular textureProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderThickness Options:
1.3 / 1.5 / 3.0 mm regular; other thicknesses subject to technical review and MOQSheet Size:
600 × 1200 mm standard; 600 × 600 mm, 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availablePerformance and Applications:
UV-resistant and weather-resistant options for exterior utility IDs, equipment labels, water-treatment signs, facility service-area plates and industrial identification

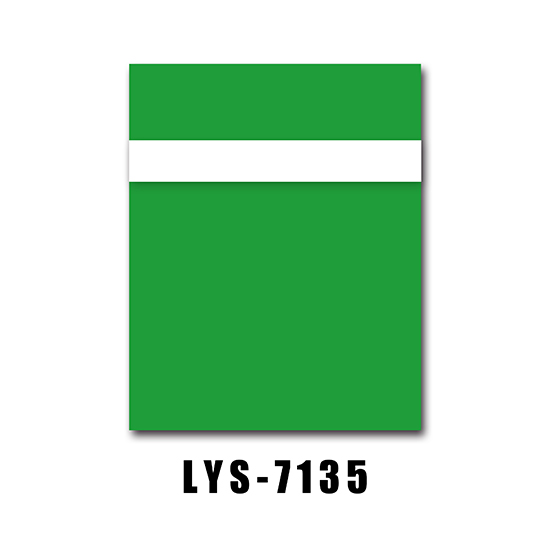

UV-Resistant Smooth Green Engraving Plastic LYS-7135 combines a thin, permanently bonded smooth green face with a continuous white core and back. Controlled engraving removes the green cap and exposes recessed white wording, symbols and borders without printing, vinyl or paint filling. UV-resistant grades are available for exterior utility IDs, water-treatment signs, equipment reference plates and facility service-area identification. CO2 laser orders use an acrylic-base configuration, while CNC and rotary orders use an ABS-base configuration. Final outdoor suitability depends on the confirmed grade, climate, exposure and installation conditions; no fixed service life is claimed without application review.
Model:LYS-7135
Send Inquiry
Product Description
LYSHIRE UV-RESISTANT SERIES | LYS-7135
UV-Resistant Smooth Green Engraving Plastic
LYSHIRE LYS-7135 is a smooth green-over-white two-ply engraving plastic developed for outdoor and light-exposed identification. Engraving removes the thin green face and exposes the continuous white core, creating permanent white legends, symbols and borders without printed ink, vinyl lettering or paint filling. UV-resistant grades are available for equipment identification, utility signs and exterior facility marking, with the base material configured for the buyer's processing route.
Color StructureSmooth Green Face / White Core
Primary FunctionUV-Resistant Identification Material
Typical Thickness1.5 mm Low-Profile Sheet
Material Function
Smooth Green Surface with Integral White Engraving Contrast
Thin Green Face
The smooth green cap is a permanently bonded surface layer. It is not a peelable color film or a printed coating applied after fabrication.
Continuous White Core
Controlled engraving exposes the same white base layer throughout the plate for crisp letters, symbols, borders and technical linework.
UV-Resistant Grade
Confirmed UV-resistant options support outdoor and light-exposed identification. Final suitability depends on the selected grade and installation environment.
A Functional UV-Resistant Entry—not Another Generic Green-White Page
LYS-7135 is positioned around smooth surface and UV-resistant material performance. It is separate from LYS-7004 laser-process green-white sheet, LYS-8802 matte two-ply acrylic, LYS-8014 outdoor emergency-sign material, LYS-8311 gloss green, LYS-7087 fine-textured green and LYS-8828 coarse-textured dark green. This boundary prevents color-only pages from competing for the same search intent.
Technical Data
Product Specifications
| Model | LYS-7135 |
|---|---|
| Color Structure | Smooth green face / Continuous white core and back |
| Sheet Structure | Front-engravable two-ply plastic with a thin permanently bonded green cap |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth uniform green surface without mirror reflection, brush lines or granular texture |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Thickness Options | 1.3 / 1.5 / 3.0 mm regular; other thicknesses subject to technical review and MOQ |
| Sheet Size | 600 × 1200 mm standard; 600 × 600 mm, 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Performance and Applications | UV-resistant and weather-resistant options for exterior utility IDs, equipment labels, water-treatment signs, facility service-area plates and industrial identification |
Process Configuration
Laser and CNC / Rotary Versions Use Different Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base configuration. For CNC or rotary engraving, routing and drilling, specify the ABS-base configuration. Engraving depth should remove the green cap cleanly without unnecessarily cutting into the white body.
- CO2 laser engraving and cutting on the acrylic-base version
- CNC / rotary engraving and routing on the ABS-base version
- Custom profiles, holes and optional adhesive backing available
UV Resistance Must Match the Final Installation
UV-resistant material improves suitability for outdoor and light-exposed identification, but no fixed service life should be assumed without reviewing the selected grade, climate, direct sunlight, mounting method, cleaning chemicals and maintenance conditions. Samples and available test documentation can be reviewed before bulk production.
B2B Applications
Exterior Utility and Facility Identification
The smooth green face and exposed white core provide direct contrast for durable identification programs. Typical fabrication includes:
- Exterior electrical and utility cabinet identification
- Water-treatment and pipeline service-area signs
- Outdoor machinery and equipment reference plates
- Facility zone, maintenance and access identification
- Industrial labels requiring green-white integral color
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies UV-resistant engraving plastic to material distributors, engraving companies, sign manufacturers, equipment builders and industrial label fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples and available material documentation before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, expected installation environment, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
What color appears after engraving LYS-7135?
Engraving removes the thin smooth green face and exposes the continuous white core, producing recessed white wording, symbols and line graphics.
Is the green surface a peelable film or printed coating?
No. The green cap is a permanently bonded material layer. The white result comes from the core below it, not from ink, vinyl or paint filling.
Can LYS-7135 be supplied for both laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does UV-resistant mean the sheet has a guaranteed fixed outdoor life?
No fixed service life should be assumed without evaluating the selected grade and installation environment. Exposure, climate, mounting, chemicals and maintenance all affect performance.
Can samples and supporting documents be requested?
Qualified B2B buyers can request samples, and available UV, compliance and raw-material documentation can be reviewed according to the selected product specification.
