Valve Tag Engraving Laminate
Color Structure:
Smooth matte deep-burgundy face / Continuous white core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin colored capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Shallow recessed white valve IDs, pipe-service text, pump references and maintenance wordingAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Valve Tag Engraving Laminate LYS-7013 has a smooth matte deep-burgundy face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals permanent recessed white valve numbers, pipe-service references, pump identifiers and maintenance text without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. The page serves industrial-identification producers, mechanical-services contractors, engraving shops and distributors purchasing raw material for valve, pump and pipeline identification. Final wording, color coding, mounting and site-standard compliance remain project-specific.
Model:LYS-7013
Send Inquiry
Product Description
LYSHIRE VALVE IDENTIFICATION MATERIAL | LYS-7013
Valve Tag Engraving Laminate

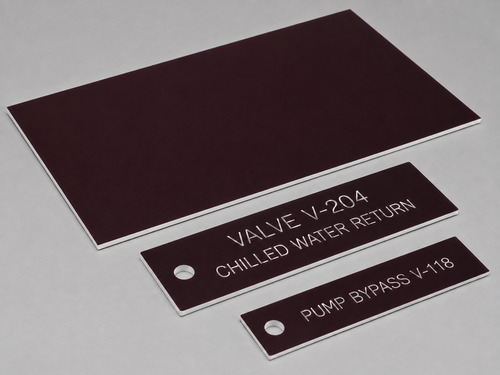

Valve Tag Engraving Laminate LYS-7013 is a two-ply fabrication material with a smooth matte deep-burgundy face over one continuous white core. Shallow front engraving removes the micro-thin colored cap and reveals recessed white valve numbers, pipe-service references, pump identifiers and maintenance text without printed ink, vinyl lettering or paint fill. It is supplied as raw sheets and optional cut blanks for professional mechanical-services identification production.
Material FormatTwo-Ply Laminate Stock
Engraved ResultRecessed White Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Valve, Pump and Pipeline Identification
Clear Mechanical-Service References
The continuous white core produces clear recessed valve numbers, pump references, flow-service wording and maintenance identifiers without adding a printed surface layer.
Full Sheets or Repeat Blanks
Fabricators and distributors can order standard sheets, repeated rectangular blanks, drilled profiles or project-specific cut parts for scheduled plant-identification work.
Separate Processing Bases
Specify an acrylic base for CO2 laser fabrication or an ABS base for CNC and rotary production. These are separate order configurations, not one universal substrate.
Raw Identification Material, Not a Finished Compliance System
LYS-7013 provides process-ready material for buyers producing valve tags, pump identifiers, pipe-service tags and mechanical-room labels. LYSHIRE supplies sheets and optional blanks; wording, color coding, numbering logic, mounting hardware, installation and site-specific standards remain the responsibility of the fabricator and end user.
Technical Data
LYS-7013 Product Parameters
| Color Structure | Smooth matte deep-burgundy face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin colored cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Shallow recessed white valve IDs, pipe-service text, pump references and maintenance wording |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Supply and Options | Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review |
Processing
Select the Base for the Fabrication Method

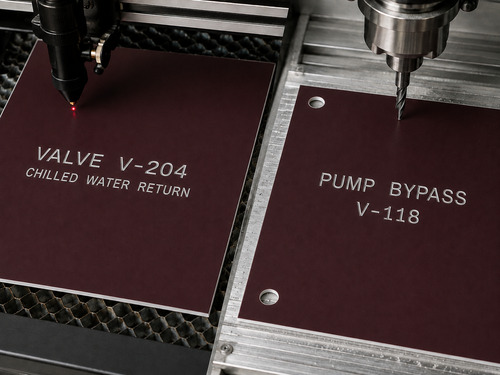

LYS-7013 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The face/core appearance can be coordinated across both routes, but the correct base must be selected before production.
- Use the acrylic configuration for CO2 laser engraving and vector-cut valve-tag blanks
- Use the ABS configuration for CNC or rotary engraving, drilling and mechanical profiling
- Test power, speed, cutter geometry, hole diameter and engraving depth before batch production
- Confirm final wording, numbering and mounting method against the buyer's own identification plan
Application Images Are Fabrication References
The sample wording shown in the images explains a possible mechanical-services application. Valve IDs, pipe-service names, color codes, hole positions, fasteners, adhesive systems and installation rules must be confirmed for each site. The dark-burgundy color is a product attribute and is not presented as a universal regulatory color code.
Application Boundary

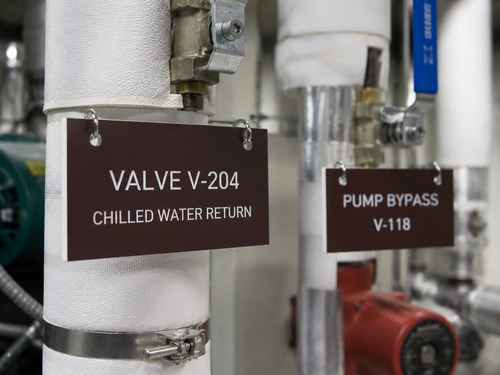

Mechanical Rooms, Process Equipment and Utility Systems
Valve Tag Engraving Laminate supports professional identification fabricators producing durable references for building services and industrial utility systems. Typical material uses include:
- Valve numbers and chilled-water service tags
- Pump, bypass and isolation-point identifiers
- Mechanical-room equipment and maintenance references
- Pipe-service and process-utility identification blanks
- Repeat OEM tag programs with approved color and dimensions
Wholesale Material Supply
Engraving Laminate for Professional Valve-Tag Fabricators
LYSHIRE supplies LYS-7013 to industrial-identification producers, mechanical-services contractors, engraving shops and material distributors. Qualified B2B buyers can request samples to confirm the matte surface, white reveal, sheet thickness and selected acrylic or ABS processing route before bulk purchasing.
For an accurate quotation, provide sheet size, thickness, quantity, processing method, tag dimensions, hole or adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7013?
Shallow engraving removes the micro-thin matte burgundy face and reveals the continuous white core as recessed valve numbers, pipe-service wording, pump references and maintenance text.
Is LYS-7013 supplied as finished valve tags?
This page covers raw sheet stock and optional cut blanks. Variable numbering, final wording, mounting hardware, installation and site-standard review remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Can drilled blanks and adhesive backing be supplied?
They can be reviewed as order options. State the tag dimensions, hole pattern, mounting surface, operating environment and adhesive requirement before quotation.
Application images are AI-assisted visual references created to explain material structure, processing routes and possible fabrication uses. Final shade, thickness, dimensions, engraved detail and mounting configuration must be confirmed by physical sample and order specification.
