Workshop Station Identification Engraving Laminate
Color Structure:
Smooth matte mustard-yellow face / Continuous dark navy core and backSheet Structure:
Two-ply front-engraving laminate with a micro-thin yellow capBase Material:
Acrylic base for CO2 laser orders; ABS base for CNC / rotary ordersSurface Finish:
Smooth matte, low-glare finishEngraved Result:
Slightly recessed navy information with visible shallow groove walls and dark navy core bottomAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderSupply and Options:
Full sheets, cut-to-size blanks, drilled profiles, optional adhesive backing and OEM color matching subject to review
Workshop Station Identification Engraving Laminate LYS-7019 has a smooth matte mustard-yellow face over one continuous dark navy core. Shallow front engraving removes the micro-thin yellow cap and creates a slight recessed navy result with visible groove depth for workshop-station references, assembly station IDs, quality-check points and production-zone information. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. This page serves industrial-sign fabricators, lean-workplace contractors, equipment suppliers, engraving shops and distributors purchasing raw material for workshop-station identification. Yellow and navy are product attributes and are not presented as a universal safety-color code.
Model:LYS-7019
Send Inquiry
Product Description
LYSHIRE CONTROLLED AREA IDENTIFICATION MATERIAL | LYS-7019
Workshop Station Identification Engraving Laminate
LYS-7019 is a two-ply fabrication laminate with a smooth matte mustard-yellow face over one continuous dark navy core. Shallow front engraving removes the micro-thin yellow cap and forms slightly recessed navy information with visible groove depth. It is supplied as raw sheets and optional repeat blanks for professional workshop-station identification.
Material FormatTwo-Ply Laminate Stock
Engraved ResultSlight Recess / Navy Reveal
Order RoutingLaser Acrylic / CNC ABS
B2B Material Positioning
Sheet Stock for Workshop and Production-Station Identification
True Shallow Engraving
The navy information is exposed from the continuous core. Narrow groove walls and a shallow navy bottom distinguish the result from printing while avoiding an excessively deep routed appearance.

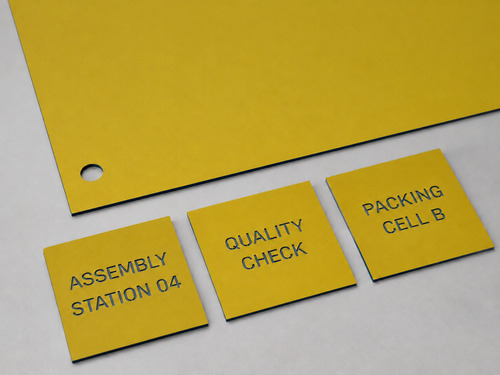

Full Sheets or Repeat Blanks
Fabricators can order standard sheets, repeated rectangular blanks, drilled profiles or project-specific cut parts for approved identification programs.
Separate Processing Bases
Specify an acrylic base for CO2 laser work or an ABS base for CNC and rotary production. These are separate order configurations.
Raw Station Material, Not a Completed Visual-Management System
LYS-7019 provides process-ready material for workshop-station signs and repeat blanks. Final station numbering, workflow meaning, placement, mounting and site procedures remain the responsibility of the fabricator and end user.
Technical Data
LYS-7019 Product Parameters
| Color Structure | Smooth matte mustard-yellow face / Continuous dark navy core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving laminate with a micro-thin yellow cap |
| Base Material | Acrylic base for CO2 laser orders; ABS base for CNC / rotary orders |
| Surface Finish | Smooth matte, low-glare finish |
| Engraved Result | Slightly recessed navy information with shallow groove walls and a dark navy core bottom |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; subject to configuration review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling |
| Supply and Options | Full sheets, cut blanks, drilled profiles, optional adhesive backing and OEM color matching |

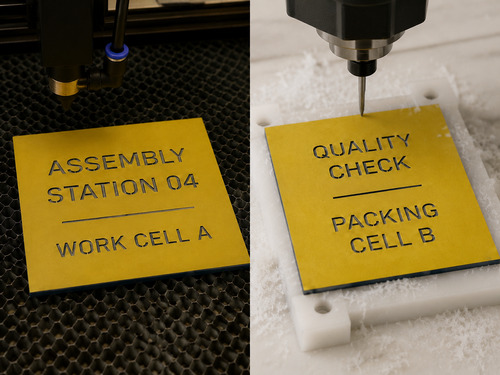

Processing
Select the Base for the Fabrication Method
The yellow-and-navy appearance can be coordinated across two separately supplied bases. Test the engraving depth so the yellow surface is fully removed while the recess remains shallow and legible.
- Acrylic configuration for CO2 laser engraving and vector cutting
- ABS configuration for CNC / rotary engraving and drilling
- Test power, speed, cutter geometry and shallow engraving depth before batch production
- Confirm wording, mounting and cleaning exposure for the destination project

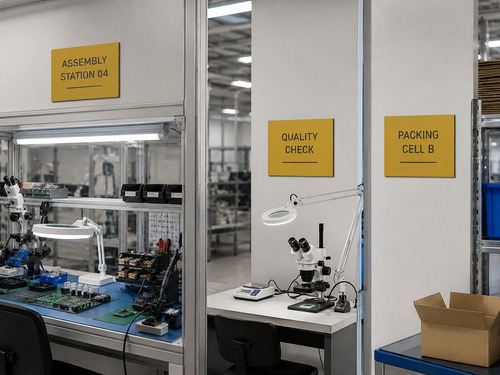

Application Images Are Fabrication References
Assembly-station, quality-check, packing-cell and work-cell wording demonstrate possible identification uses only. Station numbering, workflow meaning, location and mounting must be confirmed by the buyer and end user.
Application Boundary
Assembly Stations, Quality Check and Packing Cells
Typical raw-material uses include:
- Assembly-station and work-cell identifiers
- Quality-check and inspection-desk signs
- Packing-cell and dispatch-workstation references
- Production-line and process-station identifiers
- Repeat blanks produced to an approved sign schedule
Wholesale Material Supply
Engraving Laminate for Workshop-Station Sign Fabricators
LYSHIRE supplies LYS-7019 to industrial-identification producers, workshop-station contractors, engraving shops, equipment suppliers and material distributors. Qualified buyers can request samples to confirm shade, navy reveal, thickness and selected processing base.
For quotation, provide sheet size, thickness, quantity, processing method, blank dimensions, hole or adhesive requirement, cleaning exposure, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What appears after engraving LYS-7019?
Shallow engraving removes the micro-thin matte-yellow face and exposes the continuous dark navy core. The correct visual result has slight recess depth, a narrow groove wall and a navy bottom rather than a printed or raised appearance.
Does the yellow-and-navy combination represent a universal safety code?
No. Yellow and navy are physical product colors. Final sign meaning, wording, symbols and compliance review remain project-specific.
Can it be ordered for laser and rotary processing?
Yes, as separate configurations: acrylic for CO2 laser orders and ABS for CNC / rotary orders.
Can cut blanks and adhesive backing be supplied?
They can be reviewed as order options after dimensions, hole pattern, mounting surface, cleaning exposure and adhesive requirements are provided.
AI-Generated Image for Application Reference. Final shade, thickness, dimensions, engraved depth and mounting configuration must be confirmed by physical sample and order specification.
