600 × 1200 mm Double Color Engraving Sheet
Color Structure:
Matte blue face / White coreStructure:
Two-ply front-engraving plastic sheetBase Material:
Acrylic configuration for CO2 Laser orders; ABS configuration for CNC / Rotary ordersSurface Finish:
Smooth matte, low-gloss blue faceProcessing Compatibility:
CO2 laser engraving and cutting on acrylic; CNC / rotary engraving and routing on separately configured ABSStandard Thickness:
1.5 mm; other available thicknesses subject to order confirmationSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Facility wayfinding, production-area signs, room identification, equipment plates and industrial information labels
600 × 1200 mm Double Color Engraving Sheet LYS-7127 combines a smooth matte blue face with a continuous white core in a two-ply front-engraving structure. Engraving removes the thin blue cap and reveals permanent white lettering, arrows and symbols without printed ink, vinyl lettering or paint filling. The nominal 600 × 1200 mm full-sheet format supports efficient nesting and batch conversion for facility wayfinding, production-zone signs, room identification, equipment plates and industrial information labels. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied separately for CNC and rotary production.
Model:LYS-7127
Send Inquiry
Product Description
LYSHIRE STANDARD SHEET SERIES | LYS-7127
600 × 1200 mm Double Color Engraving Sheet

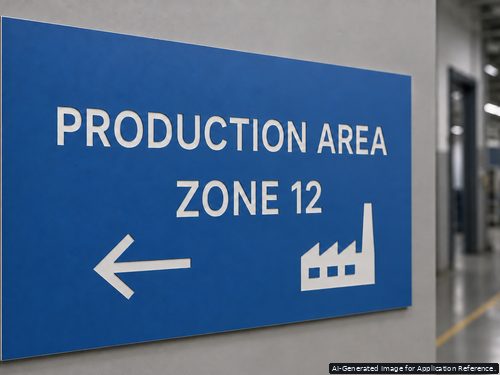

LYSHIRE LYS-7127 is a matte blue / white two-ply engraving plastic supplied in the 600 × 1200 mm full-sheet format widely used for batch sign and identification production. Engraving removes the thin blue cap and reveals the continuous white core, creating permanent high-contrast information without printed ink, vinyl lettering or paint filling.
Standard Sheet600 × 1200 mm
Color StructureMatte Blue / White Core
Sheet StructureTwo-Ply Engraving Plastic
Full-Sheet Purchasing
A Standard Large Format for Efficient Batch Conversion
600 × 1200 mm Supply
The nominal full-sheet format supports cutting plans for facility signs, equipment plates, room identification and repeated label sets.
Permanent Blue / White Contrast
The visible white graphics come from the material core after engraving, avoiding a separate printing or color-filling stage.
Process-Specific Configurations
Choose an acrylic-base sheet for CO2 laser work or a separately configured ABS-base sheet for CNC and rotary engraving.
“Double Color” Describes One Two-Ply Sheet
LYS-7127 is one engraving laminate with a thin matte blue surface layer over a white core. It is not two solid boards bonded together, and the white result is not printed on the face. The construction is also described internationally as two-ply engraving plastic, two-color engraving laminate or surface engraving sheet.
Technical Data
LYS-7127 Product Parameters
| Model | LYS-7127 |
|---|---|
| Color Structure | Matte blue face / White core |
| Structure | Two-ply front-engraving plastic sheet |
| Base Material | Acrylic configuration for CO2 Laser orders; ABS configuration for CNC / Rotary orders |
| Surface Finish | Smooth matte, low-gloss blue face |
| Processing Compatibility | CO2 laser engraving and cutting on acrylic; CNC / rotary engraving and routing on separately configured ABS |
| Standard Thickness | 1.5 mm; other available thicknesses subject to order confirmation |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Facility wayfinding, production-area signs, room identification, equipment plates and industrial information labels |
Processing

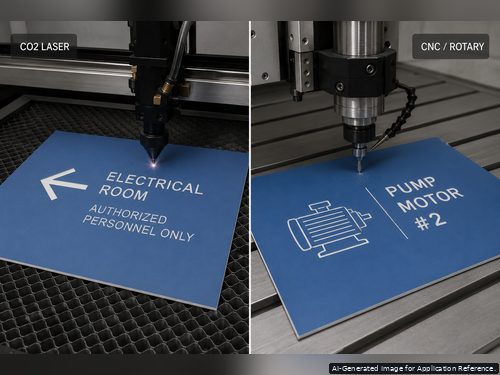

Specify the Machine Before Ordering
The blue / white appearance can be supplied in different base constructions. Confirm the engraving process before production so LYSHIRE can match the sheet to the customer's machine and cutting method.
- CO2 laser engraving and vector cutting: acrylic-base configuration
- CNC or rotary engraving, routing and drilling: ABS-base configuration
- Test a small area before batch production to establish power, speed, focus or tool depth
Laser Acrylic and CNC / Rotary ABS Are Separate Configurations
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the separately configured ABS-base version with the same matte blue / white appearance. Do not assume one physical sheet is universal for every machine.
B2B Applications
Cut One Full Sheet into Coordinated Sign and Label Sets

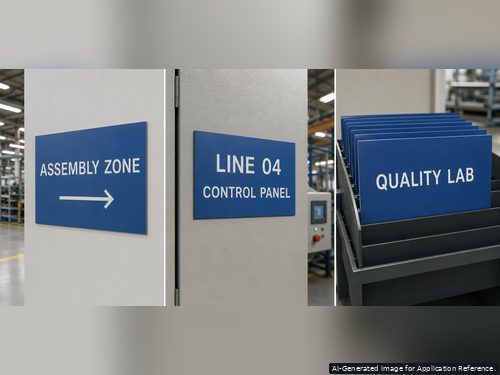

The standard full-sheet format gives distributors and fabricators a practical stock size for repeat conversion. Typical projects include:
- Production-area and warehouse wayfinding signs
- Room, department and zone identification plates
- Machine, control-panel and equipment labels
- Batch-cut industrial information and instruction plates
- OEM sign programs requiring a consistent blue / white finish
Nominal Sheet Size and Custom Cutting
600 × 1200 mm is the nominal standard sheet size for this page. Finished dimensions and cutting tolerances should be confirmed when the order requires exact nesting, edge trimming, pre-cut blanks or downstream fixture compatibility.
Wholesale Supply
Full Sheets, Mixed Products and Qualified B2B Samples
LYSHIRE supplies double color engraving sheets to engraving-material distributors, sign fabricators, equipment OEMs, industrial label producers and facility-sign specialists. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm color, surface finish and processing performance before bulk purchasing.
For an accurate quotation, provide the sheet size, thickness, quantity, processing method, adhesive requirement and destination market.
FAQ
600 × 1200 mm Double Color Sheet Questions
Is LYS-7127 a two-ply engraving plastic sheet?
Yes. It has a matte blue surface layer over a white core. Front engraving removes the thin blue cap and exposes white information.
Can the same sheet be used for both Laser and CNC?
The same blue / white appearance is available in process-specific constructions. Order the acrylic-base version for CO2 laser work and the separately configured ABS-base version for CNC or rotary work.
Are other sheet sizes available?
Yes. In addition to the nominal 600 × 1200 mm format, 305 × 610 mm, 610 × 1220 mm and custom-cut sizes can be discussed according to order quantity and packing.
What information is needed for a B2B quotation?
Please provide the required size, thickness, quantity, machine type, adhesive requirement and delivery destination.
