Laser Engraving Two-Tone Plastic Sheet
Color:
White Face / Black CoreThickness Range:
0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Above 3.0mm Available by Custom OrderSheet Size:
600 x 1200mm; Other Sizes Available by Custom OrderStructure:
Thin Matte White Face Layer over Continuous Black Acrylic CoreMaterial:
Acrylic-Based Two-Layer Laser Engraving SheetSurface Finish:
Matte, Low-Glare SurfaceProcessing:
CO2 Laser Engraving / Laser Cutting / CNC Cutting and DrillingPerformance Options:
UV-Resistant / Weather-Resistant / Optional Adhesive BackingCompliance:
RoHS / Anti-UV / Performance and Raw Material Test Reports Available
Laser Engraving Two-Tone Plastic Sheet combines a thin matte white face with a continuous black acrylic core. CO2 laser engraving removes the white cap layer and reveals permanent black letters, symbols and borders without printing, vinyl or applied lettering. LYS-8817 is developed for professional engravers, sign manufacturers and distributors producing laboratory instrument labels, data-center rack identification and industrial valve position tags. Free samples, multiple thicknesses and optional adhesive backing are available.
Model:LYS-8817
Send Inquiry
Product Description
Laser Engraving Two-Tone Plastic Sheet
Laser Engraving Two-Tone Plastic Sheet has a thin matte white face over a continuous black acrylic core. CO2 laser engraving removes the white cap and reveals permanent black wording, symbols and borders without printed ink, vinyl or applied lettering.
LYS-8817 is developed for professional engravers, sign manufacturers and distributors producing high-readability technical identification for laboratories, data centers and industrial facilities.
White Face and Engraved Black Contrast
The reverse white-black construction provides a clean low-glare background while every engraved area exposes the same continuous black layer beneath the thin face.

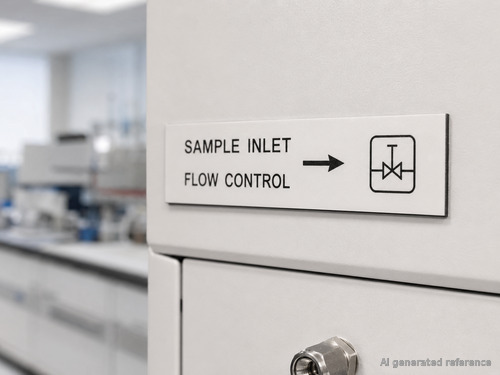

Laboratory Instrument Labels
Laboratories and equipment manufacturers can create permanent operating labels with black wording, arrows and line symbols engraved through the white face.

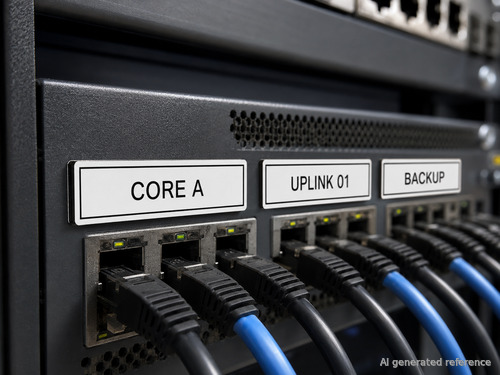

Data Center Rack Labels
Network installers can identify core links, uplinks and backup connections with durable engraved labels that remain clear around densely arranged ports and cables.

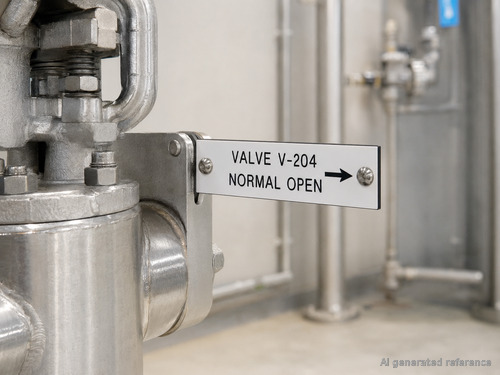

Industrial Valve Position Tags
Plant operators can fabricate high-contrast valve identification and normal-position tags for utility rooms and process equipment.
Laser Engraving and Fabrication
The acrylic-based sheet is designed for CO2 laser engraving and laser cutting. CNC cutting and drilling can also be used during fabrication. Test the selected thickness and adjust power, speed and engraving depth before batch production.
Product Parameters
| Color | White Face / Black Core |
| Thickness Range | 0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Above 3.0mm Available by Custom Order |
| Sheet Size | 600 x 1200mm; Other Sizes Available by Custom Order |
| Structure | Thin Matte White Face Layer over Continuous Black Acrylic Core |
| Material | Acrylic-Based Two-Layer Laser Engraving Sheet |
| Surface Finish | Matte, Low-Glare Surface |
| Processing | CO2 Laser Engraving / Laser Cutting / CNC Cutting and Drilling |
| Performance Options | UV-Resistant / Weather-Resistant / Optional Adhesive Backing |
| Compliance | RoHS / Anti-UV / Performance and Raw Material Test Reports Available |
Custom Production and B2B Supply
LYSHIRE supports custom thickness, sheet size, color matching, adhesive lamination, private label and bulk distributor orders. UV-resistant and weather-resistant options are available when required.
Frequently Asked Questions
Q: What color appears after engraving?
A: Engraving removes the matte white face and reveals the continuous black acrylic core.
Q: Is the black wording printed or applied?
A: No. It is the underlying black layer exposed by engraving.
Q: What applications suit white and black engraving plastic?
A: It is suitable for laboratory instrument labels, data-center rack identification, industrial valve tags and other high-readability technical signs.
Q: Is LYS-8817 suitable for CO2 laser processing?
A: Yes. It is an acrylic-based two-layer sheet developed for CO2 laser engraving and cutting.
Q: Can adhesive backing be supplied?
A: Yes. Optional adhesive backing is available for signs, labels and identification plates.
Q: Can I request a free sample?
A: Yes. LYSHIRE provides free standard samples and covers the standard sample courier cost.
