600 × 1200 mm Industrial Engraving Plastic Sheet
Color:
Light Blue Face / White CoreThickness Range:
0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Custom Options Subject to Technical Review and MOQStandard Sheet Size:
600 × 1200mmOther Size Options:
305 × 610mm, 12 × 24 Inch, 24 × 48 Inch and Custom-Cut Sizes AvailableStructure:
Solid Light Blue Face Layer over Continuous White CoreMaterial:
Acrylic-Based Two-Ply Engraving PlasticSurface Finish:
Smooth Satin Light Blue PlasticProcessing:
CO2 Laser Engraving / Laser Cutting / Precision DrillingOptional Backing:
Adhesive Backing Available Subject to Application and Order SpecificationPerformance Options:
UV-Resistant / Weather-Resistant / Outdoor Grade Options Available
600 × 1200 mm Industrial Engraving Plastic Sheet combines a plain solid light blue face with a continuous white core for permanent two-color identification. LYS-8844 is supplied in the standard large sheet format for professional engravers, industrial identification manufacturers, sign fabricators, distributors and OEM buyers. Engraving removes the light blue surface and reveals clear white characters and graphics without printed ink or applied lettering. The standard 600 × 1200 mm format supports efficient nesting and batch processing, while 305 × 610 mm, 12 × 24 inch, 24 × 48 inch and custom-cut sizes are also available according to order requirements.
Model:LYS-8844
Send Inquiry
Product Description
600 × 1200 mm Industrial Engraving Plastic Sheet
600 × 1200 mm Industrial Engraving Plastic Sheet has a plain solid light blue face over a continuous white core. Engraving removes the surface layer and reveals permanent white letters, numbers and graphics without printed ink, vinyl or applied lettering.
LYS-8844 is supplied as process-ready sheet material for professional engravers, industrial identification manufacturers, sign fabricators, distributors and OEM buyers. The standard large format supports efficient nesting, repeated component production and bulk B2B purchasing.
Light Blue Face and White Core
The two-ply structure combines a smooth satin light blue plastic surface with a continuous white core. Engraved white graphics provide clear contrast for technical labels, equipment identification and facility information.

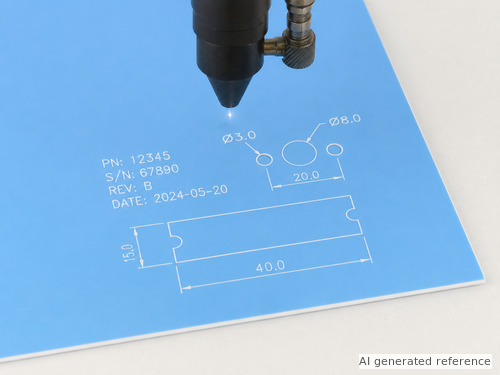

CO2 Laser Engraving
Controlled laser engraving removes the light blue face and reveals crisp white technical lines, letters and graphics. Test power, speed and focus before batch processing to establish the required depth, contrast and finish.

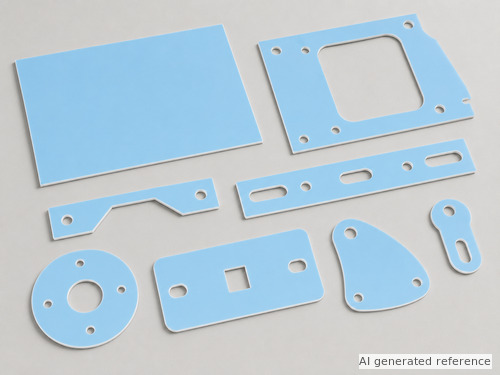

Cutting and Precision Drilling
The 600 × 1200 mm sheet can be nested for cut profiles, mounting holes and slots. Processing parameters should be tested for the selected thickness, part geometry, edge quality and installation method.

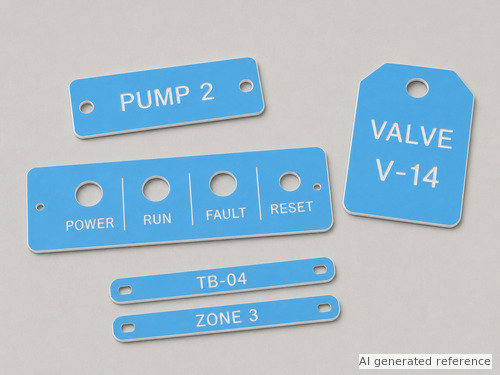

Industrial Identification Applications
The light blue-white combination can be fabricated into equipment ID plates, control-panel legend strips, valve tags and cable markers. Application visuals are illustrative references; LYSHIRE supplies the process-ready sheet material.
Product Parameters
| Color | Light Blue Face / White Core |
| Thickness Range | 0.1 / 0.3 / 0.5 / 0.8 / 1.3 / 1.5 / 3.0mm; Custom Options Subject to Technical Review and MOQ |
| Standard Sheet Size | 600 × 1200mm |
| Other Size Options | 305 × 610mm, 12 × 24 Inch, 24 × 48 Inch and Custom-Cut Sizes Available |
| Structure | Solid Light Blue Face Layer over Continuous White Core |
| Material | Acrylic-Based Two-Ply Engraving Plastic |
| Surface Finish | Smooth Satin Light Blue Plastic |
| Processing | CO2 Laser Engraving / Laser Cutting / Precision Drilling |
| Optional Backing | Adhesive Backing Available Subject to Application and Order Specification |
| Performance Options | UV-Resistant / Weather-Resistant / Outdoor Grade Options Available |
Standard Large Sheet and Custom-Cut Supply
The 600 × 1200 mm format is the standard large sheet size for this page and supports efficient production planning for distributors and industrial fabricators. It is not the only available size: 305 × 610 mm, 12 × 24 inch, 24 × 48 inch and custom-cut formats can be supplied according to order quantity, packing and processing requirements.
Frequently Asked Questions
Q: What color appears after engraving?
A: Engraving removes the light blue face and reveals the continuous white core.
Q: Is 600 × 1200 mm the only available size?
A: No. It is the standard large format featured on this page. Metric, imperial and custom-cut sizes are also available.
Q: Can the large sheet be supplied pre-cut?
A: Yes. Custom-cut formats can be discussed according to the project drawing, order quantity and packing requirements.
Q: Can the material be engraved and cut by CO2 laser?
A: Yes. Settings should be tested for the selected thickness and required engraving or cutting result.
Q: Can adhesive backing be supplied?
A: Yes. Optional adhesive backing is available according to the application and order specification.
Q: Can I request a free sample?
A: Yes. LYSHIRE provides free standard samples and covers the standard sample courier cost for qualified B2B testing.
