Double-Sided Engraving Plastic Sheet
Face / Core / Reverse Color:
Deep Blue / White / Deep BlueStructure:
Three-ply, double-sided engraving plasticBase Material:
Acrylic-based configuration for Laser orders; ABS-based configuration for CNC/Rotary ordersSurface Finish:
Smooth satin, non-metallic and non-texturedProcessing Compatibility:
CO2 Laser or CNC/Rotary engraving, configured according to orderTypical Thickness:
1.3 and 1.5 mm; other thicknesses subject to double-sided structure confirmationSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Suspended wayfinding signs, blade signs, machine and valve tags, warehouse markers, reusable hanging labels and OEM identification components

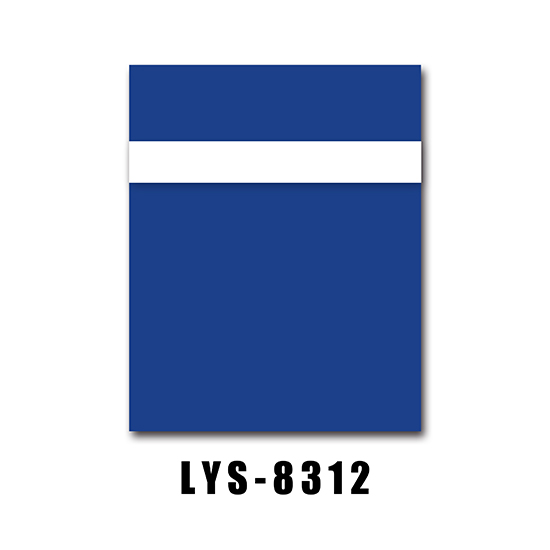

Double-Sided Engraving Plastic Sheet LYS-8312 uses the same deep-blue cap layer on both faces with a continuous white core in the middle. Either face can be engraved to reveal clean white graphics, allowing professional fabricators to produce suspended signs, perpendicular wall signs, equipment tags and other identification components viewed from two directions without laminating two separate one-sided sheets.
Model:LYS-8312
Send Inquiry
Product Description
LYSHIRE MATERIAL SERIES | LYS-8312
Double-Sided Engraving Plastic Sheet
LYSHIRE LYS-8312 is a three-ply engraving plastic sheet with the same deep-blue cap layer on both faces and a continuous white core. Either face can be engraved to reveal crisp white graphics, giving professional fabricators one material for two-sided hanging signs, wall-mounted blade signs, equipment tags and other identification components viewed from more than one direction.
Layer StructureBlue / White / Blue
Fabrication ValueEngravable on Both Faces
Process OptionsLaser or CNC / Rotary

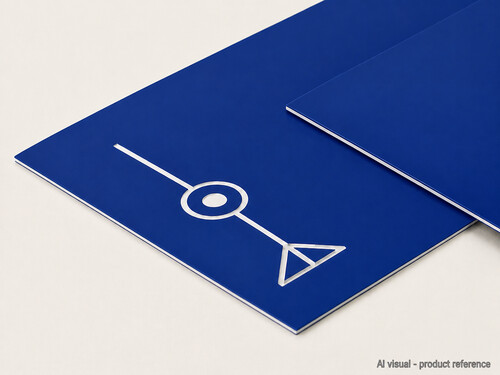

Material Structure
Two Engravable Faces, One Continuous Contrast Core
Blue Cap on Both Sides
The same smooth blue surface is applied to the front and reverse, allowing either face to become the visible engraved side in a two-direction installation.
Crisp White Reveal
Removing either micro-thin blue cap exposes the continuous white middle layer for clear lettering, numbers, arrows, icons and line graphics.
Fewer Assembly Steps
A single double-sided sheet can replace two separate one-sided pieces that would otherwise need alignment and lamination for two-face signage.
Double-Sided Is Not the Same as Three-Color Depth Engraving
LYS-8312 uses a face / core / second-face construction: blue on the front, white in the middle and blue on the reverse. It is designed for engraving from either side. A three-color depth-engraving sheet uses surface, intermediate and base colors that are exposed at different engraving depths from one face. Buyers should select the structure according to the required sign design and viewing direction.
Technical Data
Product Specifications
| Model | LYS-8312 |
|---|---|
| Color Structure | Deep Blue Face / White Core / Deep Blue Reverse Face |
| Sheet Structure | Three-ply, double-sided engraving plastic |
| Base Material | Acrylic-based configuration for Laser orders; ABS-based configuration for CNC / Rotary orders |
| Surface Finish | Smooth satin, non-metallic and non-textured |
| Standard Sheet Size | 600 × 1200 mm |
| Other Sizes | 305 × 610 / 610 × 1220 mm and custom-cut sizes available |
| Typical Thickness | 1.3 and 1.5 mm; other thicknesses subject to double-sided structure confirmation |
| Compatible Processing | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Optional Backing | Pressure-sensitive adhesive is available for single-face mounting applications; not recommended when both faces must remain visible |
| Supply Type | Wholesale full sheets, custom cutting and OEM fabrication supply |

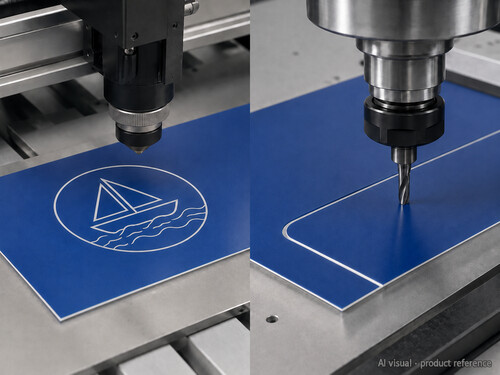

Processing
Laser and CNC / Rotary Fabrication
Laser processing supports fine white-reveal text, icons and detailed graphics. CNC or rotary processing supports controlled engraving depth, routed profiles, fixing holes and hanging slots. When both faces require engraving, artwork registration and remaining wall thickness should be checked before batch production.
- Engraving on one face or both faces
- Vector cutting, routing, drilling and custom profiles
- Repeatable white contrast for matched front-and-reverse graphics
Plan Front-and-Reverse Artwork before Fabrication
For hanging signs and tags, define the viewing direction, hole position and front/reverse artwork orientation before cutting. A small material test is recommended to confirm engraving depth on each face and to avoid weakening thin areas where graphics overlap.

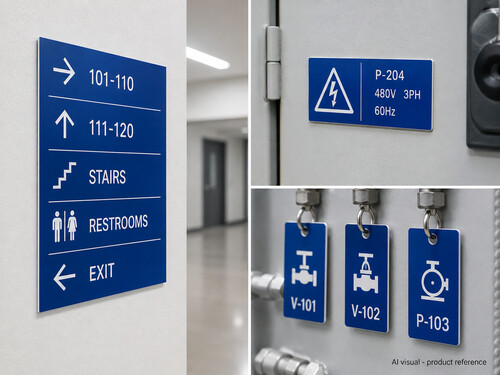

B2B Applications
Made for Identification Viewed from Two Directions
The blue-and-white contrast and same-color faces support professional components that must remain readable from the front and reverse:
- Suspended directional and wayfinding signs
- Perpendicular wall-mounted blade signs
- Machine, valve and equipment identification tags
- Locker, rack and warehouse location markers
- Reusable hanging labels and OEM identification components
Wholesale Supply
Full Sheets, Mixed Colors and Custom-Cut Orders
LYSHIRE supplies engraving plastic to material distributors, sign manufacturers, engraving companies and OEM customers. Mixed colors can be arranged within the standard 500-sheet MOQ, subject to selected thickness, base configuration and packing requirements. Qualified B2B buyers can request samples to evaluate both-face engraving contrast and machine compatibility before bulk purchasing.
For an accurate quotation, provide the required color sequence, sheet size, thickness, quantity, processing method, whether one or both faces will be engraved, and destination market.
Buyer Questions
Frequently Asked Questions
Can both faces of LYS-8312 be engraved?
Yes. Both outer faces are blue engravable cap layers over the same continuous white core, so either side can reveal white graphics.
Is this a three-color engraving sheet?
No. LYS-8312 has three physical layers but two visible colors: blue / white / blue. Its purpose is double-sided engraving, not exposing two different contrast colors at different depths from one face.
Can it be supplied for both Laser and CNC processing?
Yes. The double-sided appearance can be configured with an acrylic-based sheet for CO2 laser orders or an ABS-based sheet for CNC / rotary orders.
What should be checked before engraving both sides?
Confirm artwork orientation, hole positions, engraving depth and whether front-and-reverse graphics overlap. Test one sample before batch fabrication.
Are custom-cut sizes and mixed colors available?
Yes. Custom cutting and mixed-color wholesale orders can be arranged according to the selected structure, thickness, quantity and packing requirement.
