Coarse Textured Dark Green Engraving Sheet

Coarse Textured Dark Green Engraving Sheet

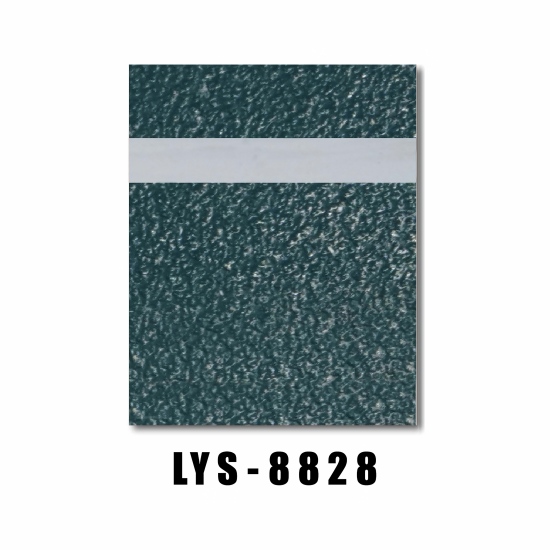

LYS-8828 is a professional two-ply engraving sheet with a deep blue-green face, a continuous white core and a pronounced coarse-granular texture. Engraving removes the dark green surface to reveal permanent white text, symbols and graphics with strong contrast.

The low-reflection textured face gives directories, directional signs and identification systems a substantial visual character while helping reduce visible fingerprints and minor handling marks. It is supplied as process-ready sheet material for professional engravers, sign manufacturers, distributors and OEM buyers.

1. Deep Blue-Green Color with Pronounced Texture

The face is a deep ink-green with a restrained blue-green undertone. It is darker and cooler than standard green, but it remains visibly green rather than blue or turquoise. The evenly distributed coarse texture is more apparent than the fine-granular finish used on LYS-7087.

Once engraved, the white core appears only in the processed areas. The contrast comes from the two-ply material structure itself, without printed ink, applied vinyl lettering or paint filling.

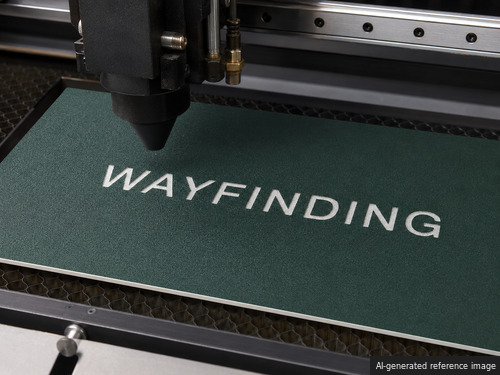

2. CO2 Laser Engraving and Cutting

The surface layer supports clear letters, arrows, icons, maps and line graphics. Begin with lower power and higher speed, then adjust gradually until the white core is cleanly exposed while the surrounding coarse texture remains neat.

Processing note: Use only the depth required to expose the white layer. Excessive heat or repeated passes may widen small characters, soften fine map lines or leave residue inside the deeper surface texture. Test the selected thickness before bulk production.

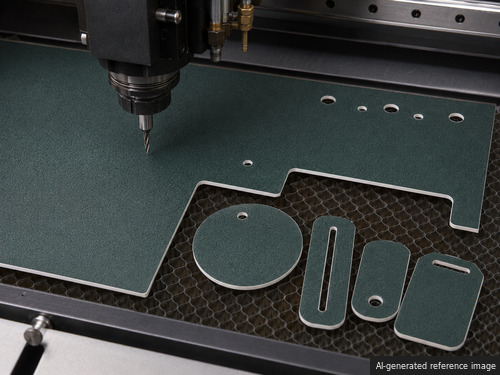

3. Rotary Engraving, CNC Cutting and Drilling

LYS-8828 can be rotary engraved, CNC routed, drilled and cut into custom profiles. The white core appears as a fine line along engraved grooves, mounting holes, slots and cut edges. Sharp tools, stable workholding and suitable feeds and speeds help preserve clean edges and a consistent textured face.

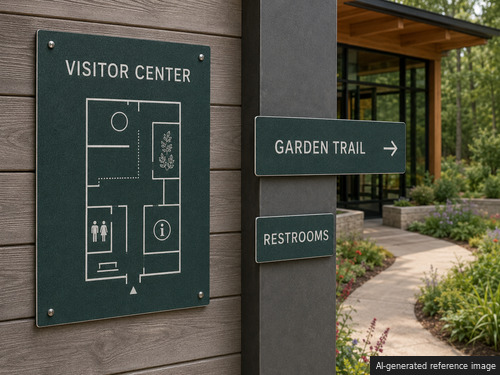

4. Visitor Centers, Public Spaces and Wayfinding

The deep green-and-white combination suits visitor-center directories, park and garden directions, public-building signs, room identification, office door plates, campus wayfinding, safety information, maps and coordinated architectural sign systems.

The application image demonstrates a public-space wayfinding system rather than another machine nameplate. For exterior installation, specify the required exposure, service environment and expected life so the appropriate UV-resistant or weather-resistant grade can be selected and tested.

5. Coarse Dark Green Texture Compared with Similar Finishes

6. Product Advantages

• Distinctive dark blue-green color with a pronounced coarse texture
• Clear permanent white contrast after engraving
• Low-reflection face suited to directories and wayfinding systems
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the white core is cleanly exposed. Air assist may be used for cutting and adjusted or switched off for engraving according to the required surface result.

Rotary/CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed before production, particularly around small characters, fine maps and closely spaced mounting holes.

Textured-surface cleaning: Remove dust with clean compressed air or a soft brush before wiping. Test any cleaner on a sample because residue can remain more visibly inside a coarse texture than on a smooth face.

Installation: Choose mechanical fixing or an adhesive suited to the wall, post, panel or other substrate, as well as the temperature range, exposure and required service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, expected outdoor exposure, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, wayfinding-system manufacturers, architectural-sign specialists and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the dark blue-green color, coarse texture, white contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The coarse dark blue-green face is removed and the continuous white core appears as the engraved text, symbol or graphic.

Q2: Is this ordinary dark green or blue?
LYS-8828 is a deep ink-green with a restrained blue-green undertone. It remains visually green and should not be represented as blue or bright turquoise.

Q3: How is it different from LYS-7087?
LYS-7087 uses a finer green granular finish. LYS-8828 is darker, more blue-toned and has a noticeably coarser, more pronounced texture.

Q4: Is the surface smooth, glossy or metallic?
No. It has a low-reflection coarse-sand texture without mirror reflection, brush lines, metallic particles or glitter.

Q5: Can it be used outdoors?
Outdoor use requires selection of the suitable UV-resistant or weather-resistant grade and validation against the actual exposure, installation and required service life.

Q6: Which processing methods are supported?
CO2 laser engraving and cutting, rotary engraving, CNC routing and drilling are supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
