Fine Textured Purple Engraving Plastic Sheet

Fine Textured Purple Engraving Plastic Sheet

LYS-7089 is a professional two-ply engraving plastic with a true standard-purple face, a continuous white core and a uniform fine-granular texture. Engraving removes the colored cap to reveal permanent white text, symbols and graphics.

The low-reflection textured surface gives school signs, creative-learning spaces and coordinated interior wayfinding a distinctive but professional appearance. The material is supplied for engravers, sign manufacturers, distributors and OEM fabricators.

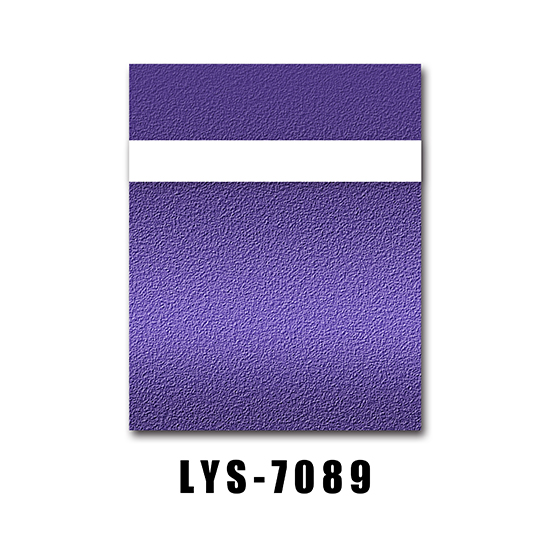

1. True Purple Color with Fine Uniform Texture

The face is a balanced purple without a pronounced red or blue bias. It is visibly less red than LYS-7088, less pink than magenta and less blue than violet or blue-purple materials. The granular pattern is fine and evenly distributed, producing a restrained tactile surface rather than a pronounced coarse-sand effect.

Once processed, the continuous white core appears only in the engraved or cut areas. The contrast comes from the two-ply material structure itself, without printed ink, vinyl lettering or paint filling.

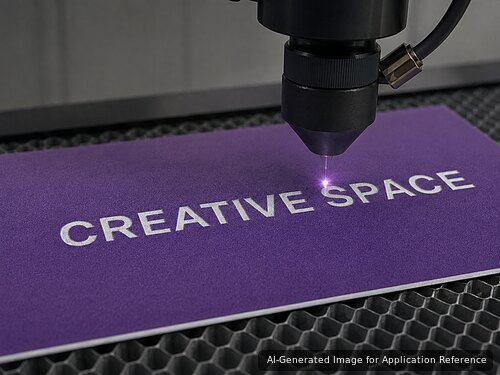

2. CO2 Laser Engraving

The fine textured face supports clear letters, arrows, icons, room numbers and line graphics. Begin with lower power and higher speed, then adjust gradually until the white core is exposed cleanly while the surrounding purple texture remains neat.

Processing note: Use only the depth required to expose the white layer. Excessive heat or repeated passes may widen small characters, soften fine lines or leave residue inside the fine texture. Test the selected thickness before bulk production.

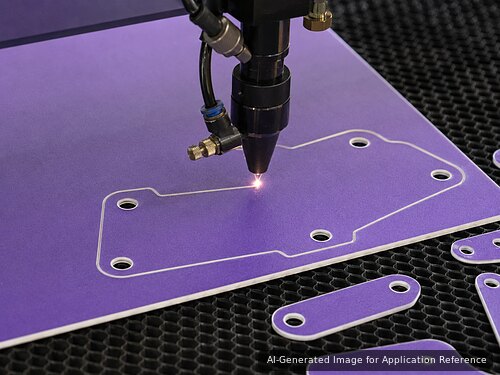

3. Laser Cutting Profiles and Mounting Holes

LYS-7089 can be CO2 laser cut into custom profiles, slots and installation holes. The white core forms a narrow visible line along cut edges and hole walls. Air assist is recommended for cutting, while engraving may require a different airflow setting according to the desired surface result.

Rotary engraving, CNC routing and drilling are also available when the part design, edge requirement or production process calls for mechanical machining.

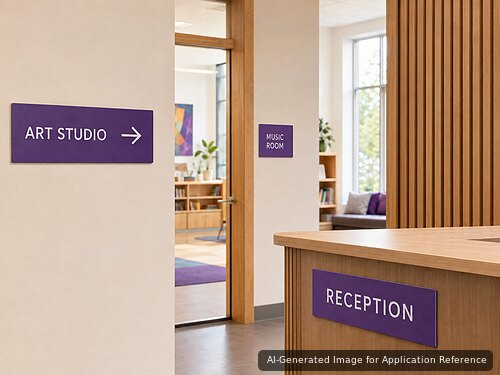

4. School Signs and Creative Learning Spaces

The purple and white combination suits art studios, music rooms, reception areas, classroom identification, learning-center directories, libraries, activity rooms, office door plates and coordinated education wayfinding systems.

The application image demonstrates a complete school and creative-space signage system rather than another machine nameplate. For exterior installation, specify exposure, service environment and expected life so the appropriate UV-resistant or weather-resistant grade can be selected and tested.

5. Standard Purple Compared with Similar Colors and Finishes

6. Product Advantages

• Balanced standard-purple color distinct from reddish purple and blue violet
• Uniform fine-granular low-reflection surface
• Clear permanent white contrast after engraving
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the white core is cleanly exposed. Air assist may be used for cutting and adjusted or switched off for engraving according to the required surface result.

Laser cutting: Use suitable air assist, focus and speed for the selected thickness. Keep protective film in place where appropriate and test close hole spacing before production.

Rotary/CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed around small characters, narrow slots and mounting holes.

Cleaning and installation: Remove dust with clean compressed air or a soft brush. Test cleaners on a sample, and select mechanical fixing or adhesive according to the substrate, temperature, exposure and required service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, expected exposure, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, education-sign manufacturers, interior-wayfinding fabricators and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the standard-purple color, fine texture, white contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The fine textured purple face is removed and the continuous white core appears as the engraved text, symbol or graphic.

Q2: How is this different from LYS-7088?
LYS-7089 is a balanced standard purple without a pronounced red or blue bias. LYS-7088 has a clear reddish-purple tone.

Q3: Is the texture coarse?
No. The face has a uniform fine-granular pattern. It is visibly textured but finer and quieter than a pronounced coarse-sand finish.

Q4: Is the surface glossy, mirror-like or metallic?
No. It is a low-reflection textured face without mirror reflection, metallic particles, brush lines or glitter.

Q5: Can it be used outdoors?
Outdoor use requires selection of the suitable UV-resistant or weather-resistant grade and validation against the actual exposure, installation and required service life.

Q6: Which processing methods are supported?
CO2 laser engraving and cutting, rotary engraving, CNC routing and drilling are supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
