Fine Textured Reddish Purple Engraving Sheet

Fine Textured Reddish Purple Engraving Sheet

LYS-7088 is a professional two-ply engraving sheet with a deep reddish-purple face, a continuous white core and a uniform fine-granular texture. Engraving removes the colored surface to reveal permanent white text, symbols and graphics with clean contrast.

The low-reflection textured finish gives interior directories, cultural-space signs and identification systems a distinctive but controlled appearance. It is supplied as process-ready sheet material for professional engravers, sign manufacturers, distributors and OEM buyers.

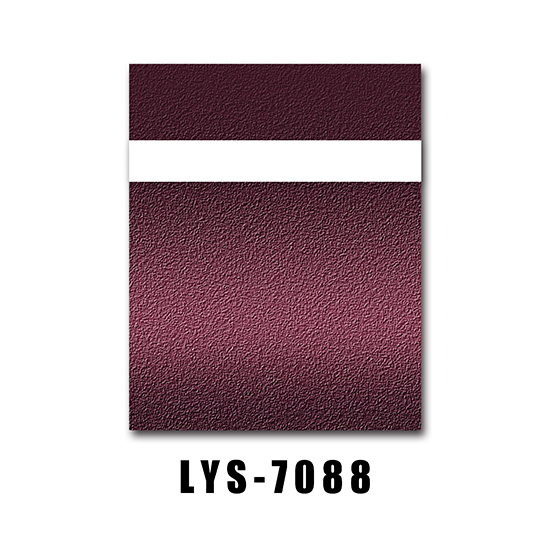

1. Reddish-Purple Color with Fine Uniform Texture

The face is a deep purple with a restrained red undertone. It is visibly more purple than dark red and less wine-toned than burgundy, while remaining darker and more controlled than bright magenta. The fine granular pattern is evenly distributed and visually quieter than the pronounced coarse texture of LYS-8828.

Once engraved, the continuous white core appears only in the processed areas. The contrast comes from the two-ply material structure itself, without printed ink, vinyl lettering or paint filling.

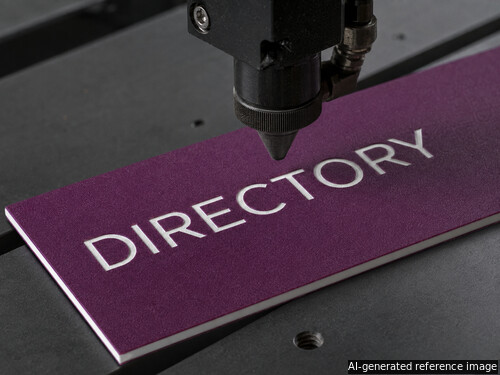

2. CO2 Laser Engraving and Cutting

The fine textured face supports clear lettering, arrows, icons, room numbers and line graphics. Begin with lower power and higher speed, then adjust gradually until the white core is cleanly exposed while the surrounding texture remains neat.

Processing note: Use only the depth required to expose the white layer. Excessive heat or repeated passes may widen small characters, soften fine lines or leave residue in the textured surface. Test the selected thickness before bulk production.

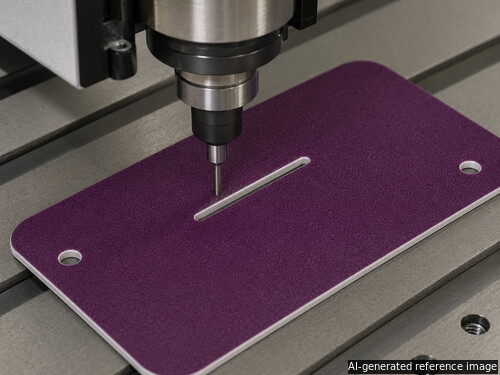

3. Rotary Engraving, CNC Cutting and Drilling

LYS-7088 can be rotary engraved, CNC routed, drilled and cut into custom profiles. The white core forms a fine visible line along engraved grooves, mounting holes, slots and cut edges. Sharp tools, stable workholding and suitable feeds and speeds help maintain clean edges and the uniform fine-granular face.

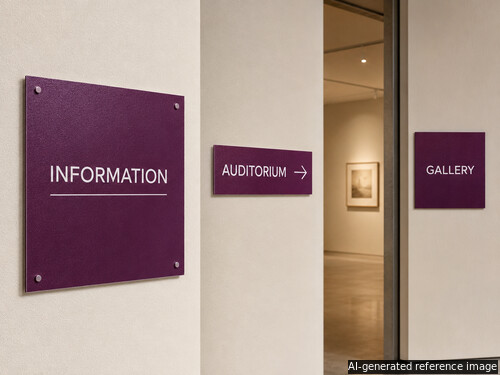

4. Cultural Centers, Galleries and Interior Wayfinding

The reddish-purple and white combination suits cultural-center directories, gallery identification, auditorium directions, exhibition spaces, room signs, reception areas, office door plates, educational facilities and coordinated interior wayfinding systems.

The application image demonstrates a complete public-interior signage system rather than another machine nameplate. For exterior installation, specify the exposure, service environment and expected life so the appropriate UV-resistant or weather-resistant grade can be selected and tested.

5. Reddish Purple Compared with Similar Colors and Finishes

6. Product Advantages

• Distinctive reddish-purple color without being misidentified as burgundy or magenta
• Uniform fine-granular low-reflection surface
• Clear permanent white contrast after engraving
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the white core is cleanly exposed. Air assist may be used for cutting and adjusted or switched off for engraving according to the required surface result.

Rotary/CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed before production, particularly around small characters, narrow slots and closely spaced mounting holes.

Textured-surface cleaning: Remove dust with clean compressed air or a soft brush before wiping. Test any cleaner on a sample to confirm that it does not leave residue inside the fine texture.

Installation: Choose mechanical fixing or an adhesive suited to the wall, door, panel or other substrate, as well as the temperature range, exposure and required service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, expected exposure, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, interior-wayfinding manufacturers, architectural-sign specialists and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the reddish-purple color, fine texture, white contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The fine textured reddish-purple face is removed and the continuous white core appears as the engraved text, symbol or graphic.

Q2: Is this burgundy or bright magenta?
No. LYS-7088 is a deep purple with a restrained red undertone. It is more purple than burgundy and deeper and less pink than bright magenta.

Q3: Is the texture coarse?
No. The face has a uniform fine-granular pattern. It is visibly textured but quieter and finer than a pronounced coarse-sand finish.

Q4: Is the surface glossy, mirror-like or metallic?
No. It is a low-reflection textured face without mirror reflection, metallic particles, brush lines or glitter.

Q5: Can it be used outdoors?
Outdoor use requires selection of the suitable UV-resistant or weather-resistant grade and validation against the actual exposure, installation and required service life.

Q6: Which processing methods are supported?
CO2 laser engraving and cutting, rotary engraving, CNC routing and drilling are supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
