Fine Textured Black Engraving Plastic Sheet

Fine Textured Black Engraving Plastic Sheet

LYS-7120 is professional two-ply engraving-plastic sheet stock with an ordinary black face, a continuous white core and a uniform fine-granular texture. Engraving removes the black cap to reveal permanent white text, symbols and graphics.

The low-reflection textured surface supports clear identification while giving finished parts a restrained tactile appearance. The material is supplied to professional engravers, sign manufacturers, distributors and OEM fabricators for laser, rotary and CNC processing.

1. Fine Black Texture with Clear White Contrast

The black face is even and non-metallic, without reflective flakes, a printed gradient or a simulated carbon-fiber pattern. Its fine granular surface is visibly textured but controlled, reducing glare compared with a gloss sheet while remaining more tactile than smooth matte plastic.

Once processed, the continuous white core appears only in engraved or cut areas. The black-white contrast comes from the two-ply material structure itself, without printed ink, applied vinyl or paint filling.

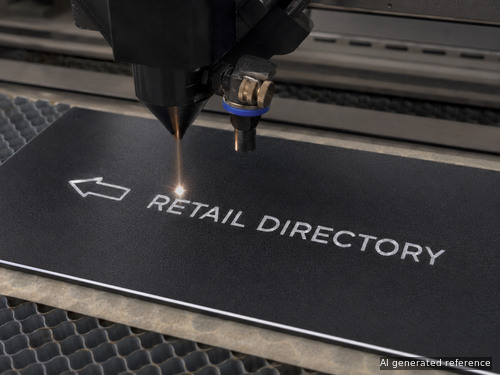

2. CO2 Laser Engraving

The fine textured face supports crisp directories, room names, arrows, pictograms and line graphics. Begin with lower power and higher speed, then adjust gradually until the white core is exposed cleanly while the surrounding black texture remains neat.

Processing note: Use only the depth required to expose the white layer. Excessive heat or repeated passes may widen small characters or leave residue within the fine texture. Test the selected thickness and grade before bulk production.

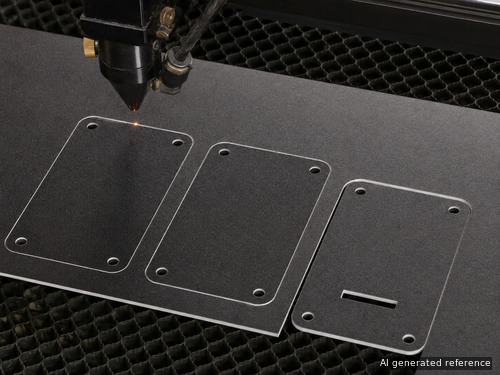

3. Laser Cutting, Profiles and Mounting Holes

LYS-7120 can be laser-cut into custom outlines, narrow slots and installation holes. The white core forms a fine visible line along cut edges and hole walls. Correct focus, suitable air assist and stable support help maintain clean edges on thin parts.

CNC routing, rotary engraving and drilling are also available when the part geometry, edge requirement or production process calls for another method.

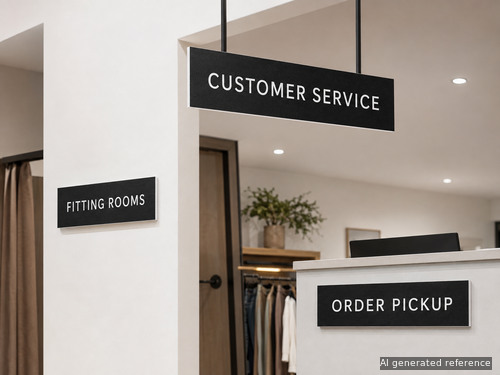

4. Retail and Showroom Sign Manufacturing

The neutral black-white combination suits customer-service directions, fitting-room identification, order-pickup points, product-area directories, checkout information and coordinated retail or showroom wayfinding.

The application image demonstrates finished signs produced from the material rather than another machine nameplate. For demanding cleaning, exterior exposure or high-traffic installations, specify the environment, mounting surface and required service life so the appropriate grade and fixing method can be selected and tested.

5. Fine Textured Black Compared with Similar Finishes

6. Product Advantages

• Uniform non-metallic black color without gradient
• Fine-granular low-reflection surface
• Clear permanent white contrast after engraving
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the white core is cleanly exposed. Air assist may be adjusted or switched off for engraving according to the required surface result.

Laser cutting: Use suitable air assist, focus and speed for the selected thickness. Keep protective film in place where appropriate and test close hole spacing before production.

CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed around small characters, narrow slots and mounting holes.

Cleaning and installation: Remove dust with clean compressed air or a soft brush. Test cleaners on a sample. Select adhesive or mechanical fixing according to the substrate, cleaning process, traffic level and expected service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, retail-sign manufacturers, architectural-wayfinding fabricators and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the black color, fine texture, white contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The fine textured black face is removed and the continuous white core appears as the engraved text, symbol or graphic.

Q2: Is the surface metallic or glossy?
No. LYS-7120 is an ordinary non-metallic black with a fine low-reflection texture, not a gloss or mirror finish.

Q3: Is this the same as smooth matte black?
No. LYS-7120 has visible fine granules. Smooth matte black has a flat face without a visible granular pattern.

Q4: Does it have a carbon-fiber pattern?
No. The surface has a uniform non-directional fine texture and no woven or printed carbon-fiber pattern.

Q5: Can the sheet be laser-cut into mounting holes and custom profiles?
Yes. CO2 laser cutting can produce outlines, slots and mounting holes when settings are matched to the selected grade and thickness.

Q6: Which other processing methods are supported?
CO2 laser engraving and cutting, rotary engraving, CNC routing and drilling are supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
