Fine Textured Blue Engraving Plastic Sheet

Fine Textured Blue Engraving Plastic Sheet

LYS-7119 is a professional two-ply engraving plastic with a saturated standard-blue face, a continuous white core and a uniform fine-granular texture. Engraving removes the blue cap to reveal permanent white text, symbols and graphics.

The low-reflection textured surface supports clear identification in sports centers, aquatic facilities and other public interiors. The material is supplied for professional engravers, sign manufacturers, distributors and OEM fabricators.

1. Standard Blue Color with Fine Uniform Texture

The blue face is saturated and even, without metallic particles, reflective flakes or a printed gradient. Its fine granular pattern is visibly textured but restrained, producing lower reflection and a more tactile surface than a smooth matte sheet.

Once processed, the continuous white core appears only in the engraved or cut areas. The blue-white contrast comes from the two-ply material structure itself, without printed ink, vinyl lettering or paint filling.

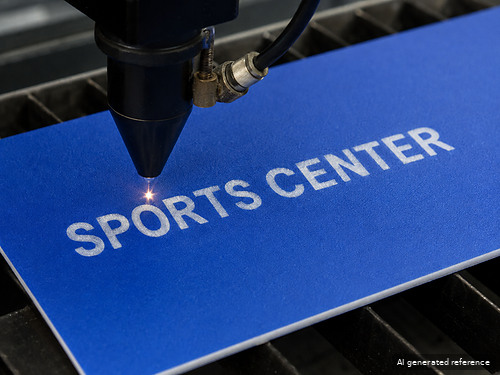

2. CO2 Laser Engraving

The fine textured face supports clear letters, arrows, pictograms, room names and line graphics. Begin with lower power and higher speed, then adjust gradually until the white core is exposed cleanly while the surrounding blue texture remains neat.

Processing note: Use only the depth required to expose the white layer. Excessive heat or repeated passes may widen small characters, soften fine lines or leave residue inside the fine texture. Test the selected thickness before bulk production.

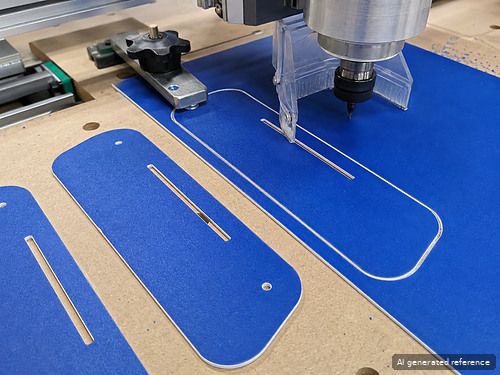

3. CNC Cutting, Routing and Drilling

LYS-7119 can be CNC routed into custom profiles, narrow slots and installation holes. The white core forms a narrow visible line along routed edges and hole walls. A sharp cutter, stable hold-down and controlled shallow depth help maintain clean edges on thin parts.

CO2 laser cutting, rotary engraving and drilling are also available when the part design, edge requirement or production process calls for another method.

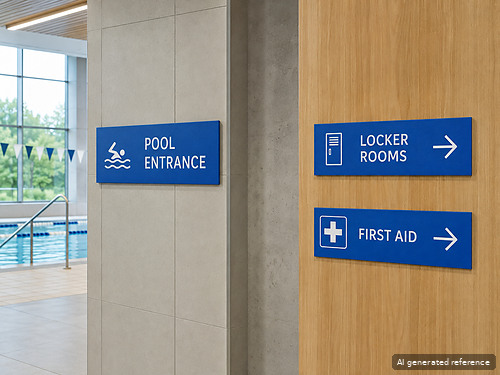

4. Sports and Aquatic Facility Signs

The blue and white combination suits pool entrances, locker-room directions, first-aid points, fitness areas, changing rooms, spectator routes, reception points and coordinated sports-facility wayfinding systems.

The application image demonstrates a coordinated sports and aquatic-facility signage system rather than another machine nameplate. For wet, high-humidity or exterior installation, specify the exposure, mounting surface and required service life so the appropriate material grade and adhesive or mechanical fixing can be selected and tested.

5. Fine Textured Blue Compared with Similar Finishes

6. Product Advantages

• Uniform non-metallic standard-blue color without gradient
• Fine-granular low-reflection surface
• Clear permanent white contrast after engraving
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the white core is cleanly exposed. Air assist may be used for cutting and adjusted or switched off for engraving according to the required surface result.

CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed around small characters, narrow slots and mounting holes.

Laser cutting: Use suitable air assist, focus and speed for the selected thickness. Keep protective film in place where appropriate and test close hole spacing before production.

Cleaning and installation: Remove dust with clean compressed air or a soft brush. Test cleaners on a sample. In wet areas, select the substrate preparation, adhesive or mechanical fixing according to humidity, temperature and expected service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, humidity or water exposure, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, sports-facility sign manufacturers, public-wayfinding fabricators and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the standard-blue color, fine texture, white contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The fine textured blue face is removed and the continuous white core appears as the engraved text, symbol or graphic.

Q2: Does the surface have a metallic effect?
No. LYS-7119 is an ordinary non-metallic blue with no reflective particles, pearlescent effect or metal-like sheen.

Q3: Is the blue color graduated from light to dark?
No. The face is one uniform blue color. Any apparent light-to-dark variation in a photograph is caused by lighting and viewing angle.

Q4: How is it different from a smooth matte blue sheet?
LYS-7119 has a visible fine-granular texture. A smooth matte blue sheet has a flat face without visible granules.

Q5: Can it be used in swimming pools or wet areas?
Yes, when the suitable material grade and mounting method are selected and validated for the actual humidity, water exposure, cleaning process and required service life.

Q6: Which processing methods are supported?
CO2 laser engraving and cutting, rotary engraving, CNC routing and drilling are supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
