Metallic Gold Red Core Engraving Sheet

Metallic Gold Red Core Engraving Sheet

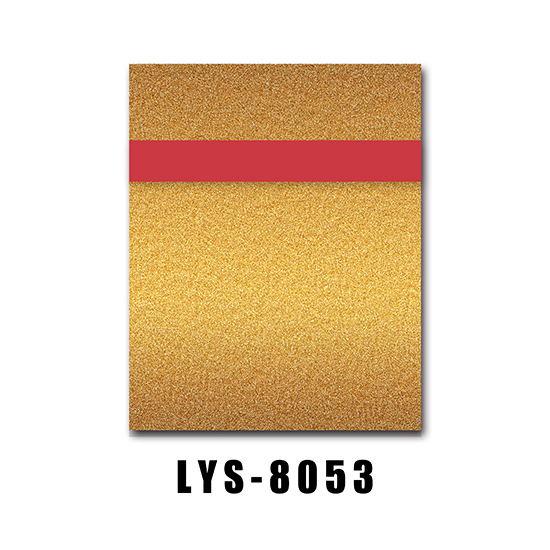

LYS-8053 is professional two-ply engraving-plastic sheet stock with a metallic-gold face, a continuous red core and a uniform fine-granular texture. Engraving removes the gold cap to reveal permanent red text, symbols and graphics.

The gold-red combination provides a distinctive presentation finish for award, recognition, hospitality and premium identification projects. The material is supplied to professional engravers, sign manufacturers, distributors and OEM fabricators for laser, rotary and CNC processing.

1. Metallic Gold Texture with Red Contrast

The face combines a warm metallic-gold appearance with an even, non-directional granular texture. It reflects light more softly than mirror gold and has no parallel brushed lines. The texture is controlled and fine rather than coarse, glittery or abrasive.

Once processed, the continuous red core appears only in engraved and cut areas. The gold-red contrast comes from the two-ply material structure itself, without printed ink, applied lettering or paint filling.

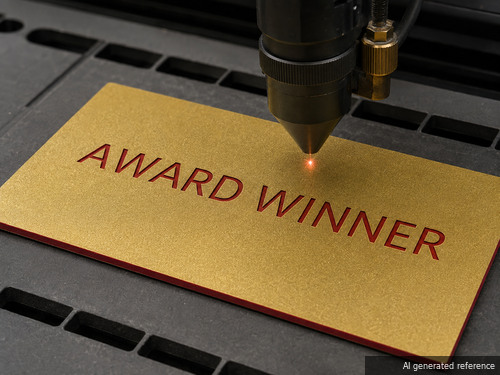

2. CO2 Laser Engraving

The fine textured face supports clear award titles, names, room identification, decorative borders, symbols and line graphics. Begin with lower power and higher speed, then adjust gradually until the red core is exposed cleanly while the surrounding metallic-gold texture remains neat.

Processing note: Use only the depth required to expose the red layer. Excessive heat or repeated passes may widen small characters or leave residue within the fine texture. Test the selected thickness and grade before bulk production.

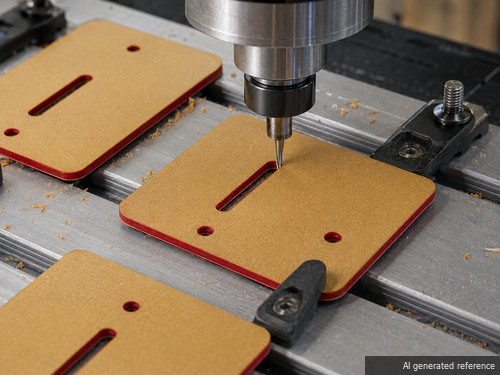

3. CNC Routing, Slots and Mounting Holes

LYS-8053 can be CNC-routed into custom outlines, narrow slots and installation holes. The red core forms a fine visible line along machined edges and hole walls. A sharp cutter, stable hold-down and controlled depth help maintain clean edges on thin parts.

CO2 laser cutting, rotary engraving and drilling are also available when the part geometry, edge requirement or production process calls for another method.

4. Award, Recognition and VIP Sign Manufacturing

The warm metallic-gold face and red engraved contrast suit award plaques, honors-gallery identification, VIP-area signs, donor and recognition displays, premium directories, commemorative panels and coordinated presentation signage.

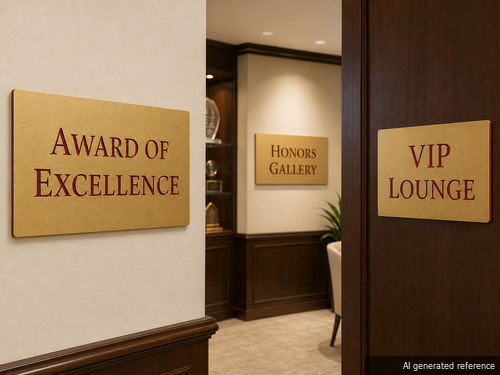

The application image demonstrates finished signs produced from the material rather than another machine nameplate. For high-traffic interiors, cleaning-sensitive installations or exterior exposure, specify the environment, mounting surface and required service life so the appropriate grade and fixing method can be selected and tested.

5. Metallic Gold Texture Compared with Similar Finishes

6. Product Advantages

• Distinct metallic-gold and red two-ply color combination
• Uniform non-directional fine-granular texture
• Clear permanent red contrast after engraving
• Compatible with laser, rotary and CNC processing
• Multiple standard thicknesses and metric or imperial sheet sizes
• Optional adhesive backing and fabricated finished signs
• UV-resistant and weather-resistant grades available

7. Technical Specifications

8. Processing and Handling Recommendations

Laser engraving: Begin with lower power and higher speed. Adjust gradually until the red core is cleanly exposed. Air assist may be adjusted or switched off for engraving according to the required surface result.

Laser cutting: Use suitable air assist, focus and speed for the selected thickness. Keep protective film in place where appropriate and test close hole spacing before production.

CNC processing: Use a sharp cutter, stable hold-down and shallow controlled depth. Test feeds and spindle speed around small characters, narrow slots and mounting holes.

Cleaning and installation: Remove dust with clean compressed air or a soft brush. Test cleaners on a sample. Select adhesive or mechanical fixing according to the substrate, cleaning process, traffic level and expected service life.

9. Performance and Custom Options

Depending on the selected grade, UV resistance, weather resistance, scratch resistance, chemical resistance and impact resistance can be supplied. Custom colors, thicknesses, dimensions, adhesive backing, pre-cut shapes, drilled parts, engraved finished signs and export packaging are available according to project requirements.

For an accurate recommendation, provide the installation environment, cleaning method, mounting surface, required service life, processing equipment and target thickness. Final suitability should be verified through engraving and application testing.

10. B2B Supply and Packaging

LYSHIRE supplies engraving-material distributors, professional engravers, award and recognition fabricators, hospitality-sign manufacturers and OEM buyers. Standard export MOQ is 500 sheets and colors may be mixed according to the applicable packing arrangement. Standard packing is 25 sheets per inner carton and 20 cartons per reinforced outer package.

Qualified B2B buyers may request free samples to evaluate the metallic-gold color, fine texture, red contrast and processing performance before placing a bulk order.

11. Frequently Asked Questions

Q1: Which color appears after engraving?
The metallic-gold face is removed and the continuous red core appears as the engraved text, symbol or graphic.

Q2: Is the surface brushed or mirror gold?
No. LYS-8053 has a uniform non-directional fine-granular texture with a restrained metallic-gold visual effect. It has neither brushed lines nor a mirror reflection.

Q3: Is this the same as the gold textured sheet with a black core?
No. LYS-8053 reveals red after engraving. Gold-black models reveal black and create a different finished contrast.

Q4: Is the sheet solid metal?
No. It is acrylic-based two-ply engraving plastic with a metallic-gold visual surface.

Q5: Can the sheet be CNC-routed into mounting holes and custom profiles?
Yes. CNC routing can produce outlines, slots and mounting holes when cutter, hold-down, speed and depth are matched to the selected grade and thickness.

Q6: Which other processing methods are supported?
CO2 laser engraving and cutting, rotary engraving and drilling are also supported. Settings depend on the machine, material grade and thickness.

Q7: Can adhesive backing and finished signs be supplied?
Yes. Adhesive selection, custom cutting, drilling, engraving and finished-sign production are available according to project requirements.

Q8: Can I request a sample?
Yes. Free samples are available for qualified B2B buyers, subject to inquiry qualification and sample availability.
