Home > Products > Structure System > Three Ply Engraving Sheets > Brushed Silver Tri-Color Engraving Plastic

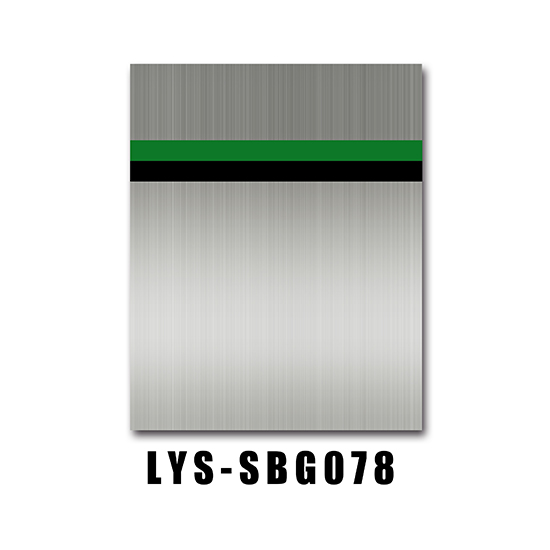

Brushed Silver Tri-Color Engraving Plastic
Color Structure:
Brushed silver face / Green middle layer / Black base layerStructure:
True three-layer tri-color engraving plastic with two depth-selective reveal colorsBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Fine directional brushed silver metallic-effect faceProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
OEM equipment identification plates, preventive-maintenance labels, electrical cabinet information plates, machinery data plates, service-status labels and industrial nameplates
Brushed Silver Tri-Color Engraving Plastic LYS-SBG078 combines a fine brushed silver face, green middle layer and black base within a total thickness of 1.5 mm. Shallow engraving reveals green for status fields, secondary legends and selected identification; a slightly deeper pass reveals black for technical data, warning symbols and primary information. The colors are integral material layers rather than printed ink or paint fill. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied for CNC and rotary production. Typical B2B uses include OEM equipment plates, preventive-maintenance labels, electrical cabinet information plates, machinery data plates, service-status labels and industrial nameplates.
Model:LYS-SBG078
Send Inquiry
Product Description
LYSHIRE MULTI-LAYER SERIES | LYS-SBG078
Brushed Silver Tri-Color Engraving Plastic
LYSHIRE LYS-SBG078 is a brushed silver / green / black tri-color engraving plastic developed for OEM equipment plates, maintenance labels and industrial identification. A controlled shallow engraving removes the brushed silver face and reveals green; a slightly deeper engraving passes through the green layer and reveals black. The two reveal depths combine a professional metallic appearance with integral three-color information, without screen printing, paint filling or secondary lamination.
Color StructureBrushed Silver / Green / Black
Depth-Controlled RevealShallow Green / Deeper Black
Total Thickness1.5 mm Three-Layer Sheet
Tri-Color Material Logic
Two Engraving Depths beneath One Brushed Silver Face
Shallow Engraving Reveals Green
Removing only the brushed silver face exposes the green middle layer for operating status, maintenance fields, selected legends and identification accents.
Deeper Engraving Reveals Black
A controlled deeper pass reaches the black base layer for technical data, warning symbols, equipment numbers and high-contrast primary information.
Integral Color, No Paint Fill
Green and black are material layers inside the sheet, reducing printing, filling and secondary assembly for repeat industrial-label production.
Three Color Layers within a Total Thickness of 1.5 mm
The brushed silver face, green middle layer and black base are contained within one finished 1.5 mm sheet. LYS-SBG078 is not three thick boards stacked together. Correct depth control produces green and black contrast inside a thin engraving sheet suitable for flush-mounted equipment plates and labels.
Technical Data
Product Specifications
| Model | LYS-SBG078 |
|---|---|
| Color Structure | Brushed silver face / Green middle layer / Black base layer |
| Sheet Structure | True three-layer tri-color engraving plastic with two depth-selective reveal colors |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Fine directional brushed silver metallic-effect face |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | OEM equipment identification plates, preventive-maintenance labels, electrical cabinet information plates, machinery data plates, service-status labels and industrial nameplates |
Processing

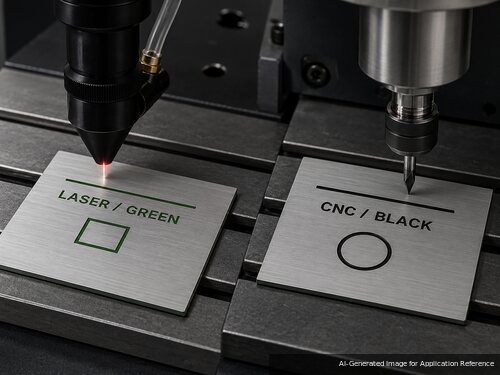

Laser or Rotary Production with Controlled Depth
LYS-SBG078 can be configured with an acrylic base for CO2 laser work or an ABS base for CNC / rotary engraving. The fabricator controls engraving depth to select the green or black reveal. Test settings should be established on the ordered configuration because power, speed, tool geometry and machine condition affect the final depth.
- Shallow pass for green status fields, secondary legends and identification accents
- Slightly deeper pass for black technical data, symbols and primary information
- Routing, drilling, shaped cutting and optional adhesive conversion
Laser and CNC / Rotary Versions Use Different Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the ABS-base version. Do not assume one physical sheet is universal for every machine; confirm the process, equipment and required reveal depths before production.
B2B Applications

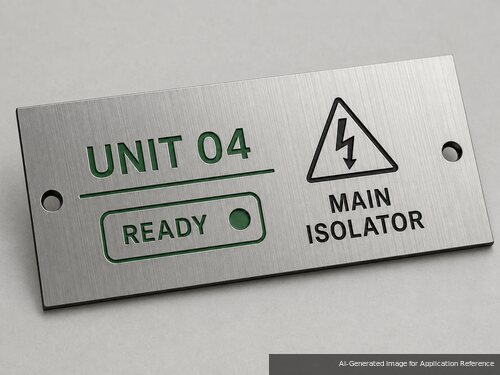

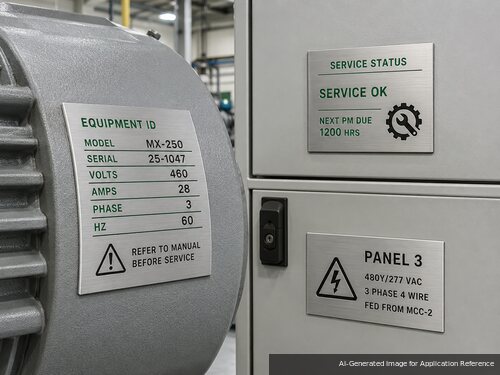

Metallic-Look OEM and Industrial Identification
The brushed silver face provides a professional equipment-grade appearance, while green and black reveal depths separate status information from technical and warning content. Typical fabrication includes:
- OEM machinery identification and data plates
- Preventive-maintenance and service-status labels
- Electrical cabinet and plant-equipment information plates
- Operating, inspection and maintenance identification
- Industrial nameplates requiring metallic appearance without solid metal
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies tri-color engraving plastic to material distributors, engraving companies, sign manufacturers, equipment builders and industrial label fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the brushed silver / green / black structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-SBG078 produce green and black from one brushed silver face?
A shallow engraving removes the brushed silver face and reveals the green middle layer. A slightly deeper engraving passes through the green layer and reveals the black base layer.
Is the three-layer sheet thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the brushed silver, green and black layers. It is one thin sheet, not three thick boards laminated together.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the three-color result require paint filling or screen printing?
No. Green and black are integral material layers. Correct engraving depth reveals the selected color without paint filling or printed ink.
Should engraving depths be tested before batch production?
Yes. Test the shallow green-reveal depth and deeper black-reveal depth on the selected machine and base-material configuration before production.
