Electrical Caution Engraving Plastic Sheet
Color Structure:
Brushed silver face / Yellow middle layer / Black base layerStructure:
True three-layer engraving plastic with two depth-selective reveal colorsBase Material:
Acrylic configuration for CO2 Laser orders; ABS configuration for CNC / Rotary ordersSurface Finish:
Fine directional brushed silver metallic-effect faceProcessing Compatibility:
CO2 laser engraving and cutting on acrylic; CNC / rotary engraving and routing on separately configured ABSTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Electrical caution labels, switchboard plates, main-disconnect identification, circuit-breaker labels, maintenance plates and OEM electrical equipment signage
Electrical Caution Engraving Plastic Sheet LYS-SBY095 combines a fine brushed silver face, yellow middle layer and black base within a total thickness of 1.5 mm. Shallow engraving reveals yellow for caution headings, isolation notices and selected status fields; a deeper pass reveals black for signal words, electrical pictograms, terminal references and circuit codes. The colors are integral material layers rather than printed ink or paint fill. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied for CNC and rotary production. Typical B2B uses include switchboard caution labels, main-disconnect plates, circuit-breaker labels, electrical cabinet identification, maintenance plates and OEM electrical equipment signage.
Model:LYS-SBY095
Send Inquiry
Product Description
LYSHIRE ELECTRICAL IDENTIFICATION SERIES | LYS-SBY095
Electrical Caution Engraving Plastic Sheet
LYSHIRE LYS-SBY095 is a brushed silver / yellow / black three-layer engraving material developed for electrical caution labels, switchboard identification and maintenance plates. A controlled shallow pass removes the brushed silver face and reveals the yellow middle layer. A deeper pass reaches the black base, allowing yellow caution fields and black signal words, symbols or circuit information to be produced within one thin sheet without screen printing, paint filling or secondary lamination.

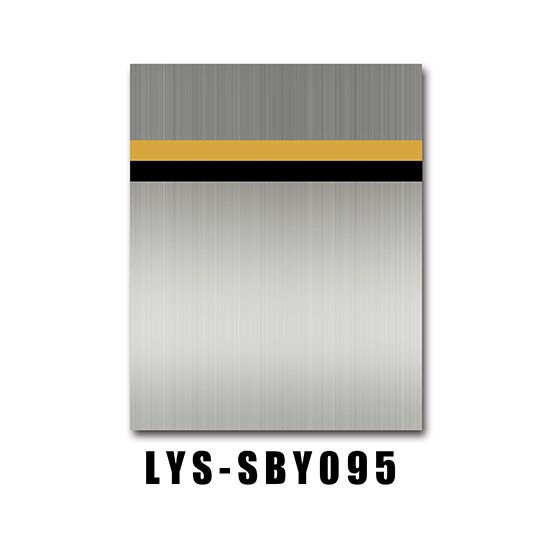

Layer StructureBrushed Silver / Yellow / Black
Color SelectionYellow Shallow / Black Deep
Finished Thickness1.5 mm Total
Material Construction
Three Integral Layers, Two Controlled Reveal Depths
Brushed Silver Face
A fine directional metallic-effect face gives electrical cabinets and OEM equipment plates a professional appearance without using solid metal.
Yellow Middle Layer
Shallow engraving reveals a high-visibility yellow field for caution headings, maintenance notices and selected status zones.
Black Base Layer
Deeper engraving reveals black for signal words, hazard pictograms, terminal references, circuit codes and instructions.
One Thin Sheet, Not Three Thick Boards
The brushed silver face, yellow middle layer and black base are contained within one finished 1.5 mm sheet. LYS-SBY095 is not a stack of three thick panels. Correct depth control produces yellow and black information inside a thin engraving plastic suitable for flush-mounted electrical labels and equipment plates.
Technical Data
LYS-SBY095 Product Parameters
| Model | LYS-SBY095 |
|---|---|
| Color Structure | Brushed silver face / Yellow middle layer / Black base layer |
| Structure | True three-layer engraving plastic with two depth-selective reveal colors |
| Base Material | Acrylic configuration for CO2 Laser orders; ABS configuration for CNC / Rotary orders |
| Surface Finish | Fine directional brushed silver metallic-effect face |
| Processing Compatibility | CO2 laser engraving and cutting on acrylic; CNC / rotary engraving and routing on separately configured ABS |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Electrical caution labels, switchboard plates, main-disconnect identification, circuit-breaker labels and OEM maintenance plates |
Processing
Establish Both Engraving Depths Before Production
LYS-SBY095 is supplied in process-specific base configurations. Fabricators should test shallow and deep passes on the ordered sheet before a production run because machine power, speed, focus, tool geometry and artwork density affect the final depth.
- Shallow pass for yellow caution fields and selected status areas
- Deeper pass for black signal words, symbols and circuit information
- Vector cutting, drilling, shaped conversion and optional adhesive backing
Laser Acrylic and CNC / Rotary ABS Are Separate Configurations
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the separately configured ABS-base version with the same brushed silver / yellow / black layer structure. Do not assume one physical sheet is universal for every machine.
B2B Applications

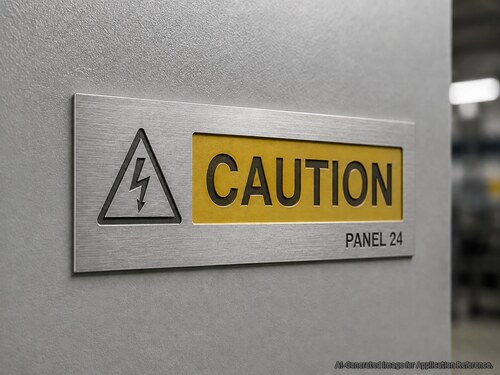

Electrical Caution, Isolation and Circuit Identification
The brushed silver face supports professional equipment identification, while yellow and black reveal depths separate caution fields from technical information. Typical fabrication includes:

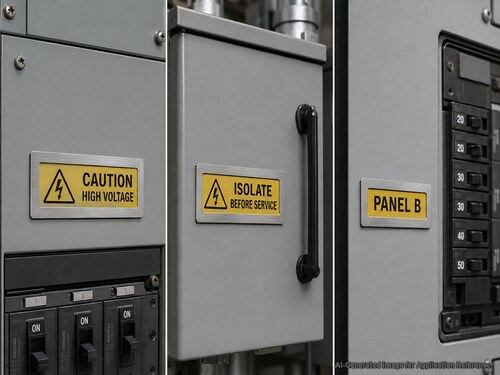

- Electrical cabinet and switchboard caution labels
- Main-disconnect and isolation-point identification plates
- Circuit-breaker, terminal and panel reference labels
- Inspection, servicing and maintenance caution plates
- OEM electrical equipment labels requiring two information levels
Finished Electrical-Sign Compliance Depends on the Final Design
The yellow and black layers support high-contrast caution-label fabrication, but the finished wording, pictograms, dimensions, placement, fastening and color requirements must be verified for the customer's equipment, application and destination market. Material color capability alone does not certify a completed electrical label to OSHA, ANSI, ISO, IEC or another standard.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies electrical caution engraving plastic sheets to engraving-plastic distributors, electrical panel builders, switchboard manufacturers, safety-sign producers, equipment OEMs and industrial label fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the brushed silver / yellow / black structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-SBY095 produce yellow and black from one brushed silver face?
A shallow engraving removes the brushed silver face and reveals the yellow middle layer. A deeper pass continues through the yellow layer and reveals the black base layer.
Can black text be engraved inside a yellow caution field?
Yes. First engrave the yellow field to the middle-layer depth, then use a deeper controlled pass for black text or symbols inside that field. Test both depths before batch production.
Is the three-layer material thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the brushed silver, yellow and black layers. It is one thin sheet, not three thick boards laminated together.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the yellow and black result require printing or paint filling?
No. Yellow and black are integral material layers. Correct engraving depth reveals the selected color without printed ink or paint fill.
