Multi-Layer Engraving Plastic for Warning Labels

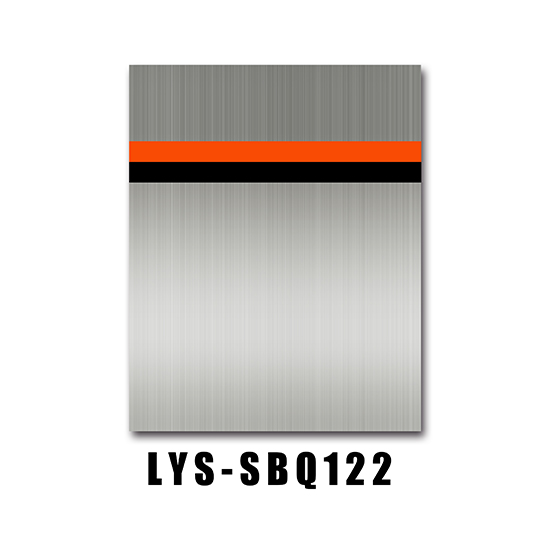

Color Structure:
Brushed silver face / Safety-orange middle layer / Black base layerStructure:
True three-layer multi-color engraving plastic with two depth-selective reveal colorsBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Fine directional brushed silver metallic-effect faceProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Machine warning labels, equipment-guard plates, electrical cabinet caution labels, lockout identification, maintenance-point labels and industrial hazard communication plates
Multi-Layer Engraving Plastic for Warning Labels LYS-SBQ122 combines a fine brushed silver face, safety-orange middle layer and black base within a total thickness of 1.5 mm. Shallow engraving reveals orange for warning headers, caution fields and status accents; a deeper pass reveals black for signal words, hazard pictograms, instructions and equipment codes. The colors are integral material layers rather than printed ink or paint fill. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied for CNC and rotary production. Typical B2B uses include machine warning labels, equipment-guard plates, electrical cabinet caution labels, lockout identification, maintenance-point labels and industrial hazard communication plates.
Model:LYS-SBQ122
Send Inquiry
Product Description
LYSHIRE MULTI-LAYER SERIES | LYS-SBQ122
Multi-Layer Engraving Plastic for Warning Labels
LYSHIRE LYS-SBQ122 is a brushed silver / safety-orange / black multi-layer engraving plastic developed for industrial warning labels, machine-guard plates and maintenance identification. A controlled shallow engraving removes the brushed silver face and reveals the orange middle layer. A deeper pass reaches the black base layer, allowing orange warning fields and black symbols or technical information to be produced within one thin sheet without screen printing, paint filling or secondary lamination.
Color StructureBrushed Silver / Safety Orange / Black
Depth-Controlled RevealShallow Orange / Deeper Black
Total Thickness1.5 mm Three-Layer Sheet

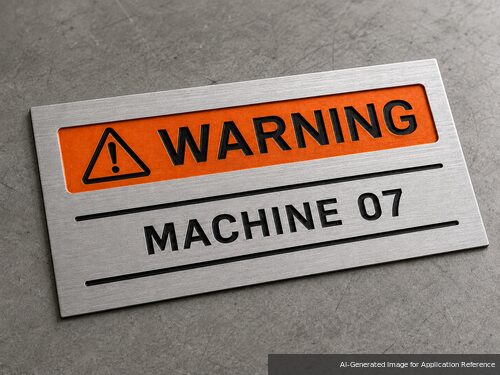

Multi-Layer Warning Logic
Orange Warning Fields and Black Information from Two Engraving Depths
Shallow Engraving Reveals Orange
Removing only the brushed silver face exposes the safety-orange middle layer for warning headers, status fields, caution borders and selected identification accents.
Deeper Engraving Reveals Black
A controlled deeper pass reaches the black base for signal words, hazard pictograms, equipment codes, instructions and high-contrast technical information.
Integral Color, No Paint Fill
Orange and black are continuous material layers inside the sheet, reducing printing, color filling and secondary assembly for repeat warning-label production.
Three Integrated Color Layers within a Total Thickness of 1.5 mm
The brushed silver face, safety-orange middle layer and black base are contained within one finished 1.5 mm sheet. LYS-SBQ122 is not three thick boards stacked together. Correct depth control produces orange and black information inside a thin engraving plastic suitable for flush-mounted industrial labels and machine warning plates.
Technical Data
Product Specifications
| Model | LYS-SBQ122 |
|---|---|
| Color Structure | Brushed silver face / Safety-orange middle layer / Black base layer |
| Sheet Structure | True three-layer multi-color engraving plastic with two depth-selective reveal colors |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Fine directional brushed silver metallic-effect face |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Machine warning labels, equipment-guard plates, electrical cabinet caution labels, lockout identification, maintenance-point labels and industrial hazard communication plates |
Processing

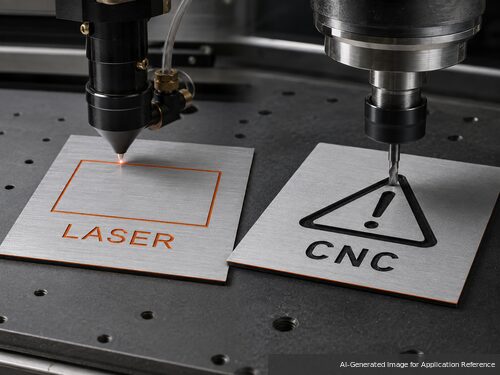

Laser or Rotary Production with Controlled Depth
LYS-SBQ122 can be configured with an acrylic base for CO2 laser work or an ABS base for CNC / rotary engraving. The fabricator controls engraving depth to select the orange or black reveal. Test settings should be established on the ordered configuration because power, speed, tool geometry and machine condition affect the final depth.
- Shallow pass for orange warning headers, caution fields and status accents
- Deeper pass for black signal words, pictograms, instructions and equipment codes
- Routing, drilling, shaped cutting and optional adhesive conversion
Laser and CNC / Rotary Versions Use Different Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the ABS-base version. Do not assume one physical sheet is universal for every machine; confirm the process, equipment and required reveal depths before production.
B2B Applications

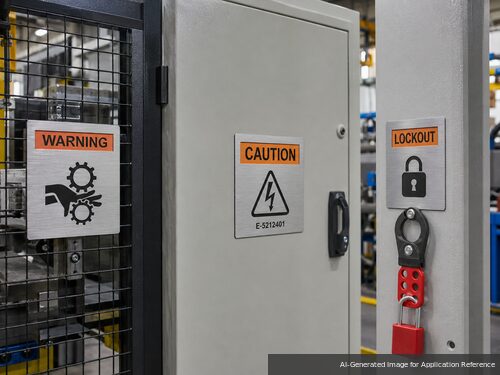

Industrial Warning, Caution and Maintenance Identification
The brushed silver face provides a professional equipment-grade appearance, while orange and black reveal depths separate warning fields from symbols and technical content. Typical fabrication includes:
- Machine-guard warning and moving-part hazard labels
- Electrical cabinet caution and service labels
- Lockout, maintenance and inspection-point identification
- OEM equipment warning plates and operating notices
- Industrial labels requiring two information levels without printing
Warning-Label Compliance Depends on the Finished Design
The orange and black layers support high-contrast warning-label fabrication, but the finished signal word, pictogram, dimensions, placement and color requirements must be verified for the customer's application and destination market. Material color capability alone does not certify a completed label to a specific safety standard.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies multi-layer engraving plastic to material distributors, engraving companies, safety-sign manufacturers, equipment builders and industrial label fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the brushed silver / orange / black structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-SBQ122 produce orange and black from one brushed silver face?
A shallow engraving removes the brushed silver face and reveals the safety-orange middle layer. A deeper engraving passes through the orange layer and reveals the black base layer.
Can black text be produced inside an orange warning field?
Yes. First engrave the orange field to the middle-layer depth, then use a deeper controlled pass for black text or symbols inside that field. Test both depths before batch production.
Is the three-layer sheet thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the brushed silver, orange and black layers. It is one thin sheet, not three thick boards laminated together.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the multi-color result require printing or paint filling?
No. Orange and black are integral material layers. Correct engraving depth reveals the selected color without printed ink or paint fill.
