Three-Ply Engraving Plastic
Color Structure:
Red face / Black middle layer / Blue base layerStructure:
True three-ply, three-color engraving plastic with depth-selective color revealBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte safety-red faceProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Electrical safety plates, control-panel legends, valve and pipeline identification, restricted-area signs, equipment operating plates and OEM warning labels
Three-Ply Engraving Plastic LYS-RBB002 combines a safety-red face, black middle layer and blue base layer within a total thickness of 1.5 mm. Shallow engraving reveals black for primary warnings and legends; a slightly deeper pass reveals blue for secondary codes, direction symbols and information fields. The three-color result is formed by material removal rather than screen printing or paint filling. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied for CNC and rotary production. Typical B2B uses include electrical safety plates, control-panel legends, valve and pipeline tags, restricted-area signs, equipment operating plates and OEM warning labels.
Model:LYS-RBB002
Send Inquiry
Product Description

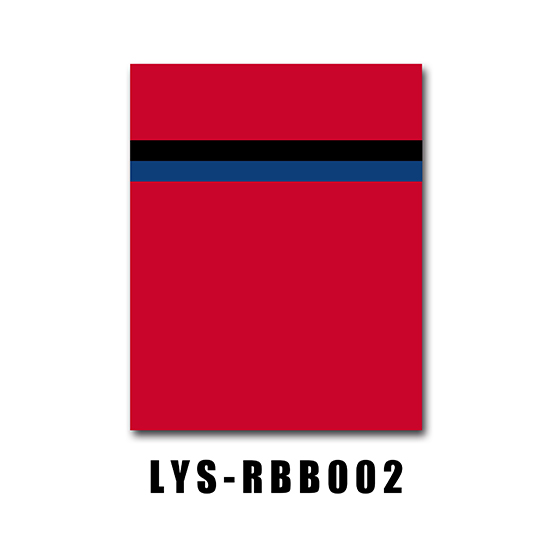

LYSHIRE MULTI-LAYER SERIES | LYS-RBB002
Three-Ply Engraving Plastic
LYSHIRE LYS-RBB002 is a true red / black / blue three-ply engraving plastic engineered to display two contrast colors from one face. A controlled shallow engraving removes the red surface and reveals black; a slightly deeper engraving reaches the blue layer. The result is a three-color industrial plate without screen printing, paint filling or secondary lamination.
Color StructureRed / Black / Blue
Depth-Controlled RevealShallow Black / Deeper Blue
Total Thickness1.5 mm Three-Ply Sheet

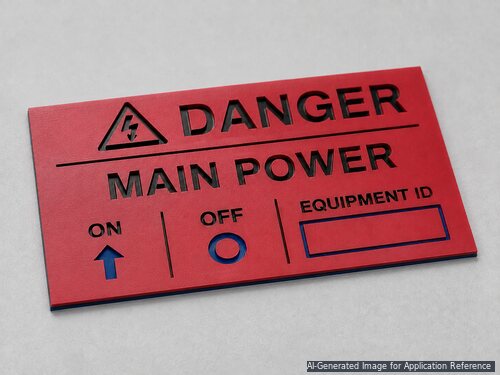

Three-Color Structure
Two Engraving Depths from One Red Surface
Shallow Engraving Reveals Black
Removing only the thin red face exposes the black middle layer for primary warnings, headings, symbols and high-contrast identification.
Deeper Engraving Reveals Blue
A controlled second depth passes through the black middle layer to reveal blue for secondary information, direction symbols or circuit and process coding.
No Paint Filling Required
Black and blue are integral layers within the sheet, reducing secondary filling, printing and lamination steps for repeat industrial fabrication.
Three Layers within a Total Thickness of 1.5 mm
The red face, black middle layer and blue base are all contained within the finished 1.5 mm sheet. LYS-RBB002 is not a stack of three thick boards and must not be represented as a 3 mm or thicker acrylic plaque. The color transition is produced by precise engraving depth inside one thin professional engraving sheet.
Technical Data
Product Specifications
| Model | LYS-RBB002 |
|---|---|
| Color Structure | Red face / Black middle layer / Blue base layer |
| Sheet Structure | True three-ply, three-color engraving plastic with depth-selective color reveal |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte safety-red face |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Electrical safety plates, control-panel legends, valve and pipeline identification, restricted-area signs, equipment operating plates and OEM warning labels |

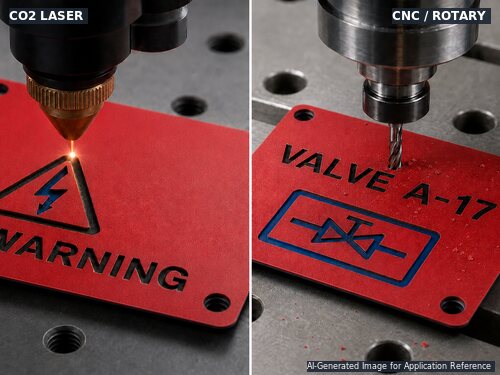

Processing
Laser or Rotary Production with Controlled Depth
LYS-RBB002 can be configured for CO2 laser processing with an acrylic base or for CNC / rotary processing with an ABS base. The fabricator controls engraving depth to select the black or blue reveal. Test settings should be established on the selected configuration before batch production because power, speed, tool geometry and machine condition affect the final depth.
- Shallow pass for black headings, warnings and primary legends
- Slightly deeper pass for blue secondary codes, symbols and instruction fields
- Routing, drilling, shaped cutting and optional adhesive conversion
Laser and CNC / Rotary Versions Use Different Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the ABS-base version. One physical sheet should not be assumed to be universal for every machine; confirm the process, equipment and required engraving depths before production.

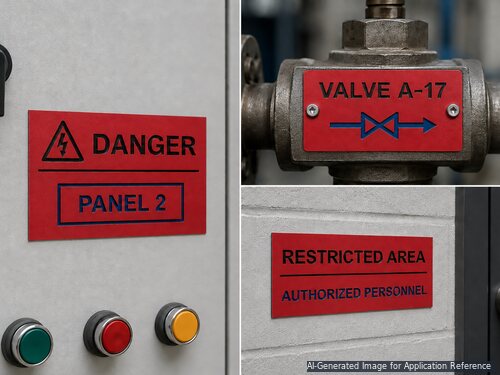

B2B Applications
Safety, Control and Industrial Identification
The red face creates immediate visual recognition, while black and blue engraving depths separate primary warnings from secondary operating or identification information. Typical fabrication includes:
- Electrical hazard and main-power identification plates
- Control-panel legends and equipment circuit identifiers
- Valve, pipeline and process-direction tags
- Restricted-area and authorized-personnel signs
- OEM operating, maintenance and safety instruction plates
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies three-ply engraving plastic to material distributors, sign manufacturers, engraving companies and OEM fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the red / black / blue structure and establish two engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-RBB002 produce black and blue engraving from one red face?
A shallow engraving removes the red face and reveals the black middle layer. A slightly deeper engraving passes through the black layer and reveals the blue base layer.
Is the three-ply sheet thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the red, black and blue layers. It is one thin sheet, not three thick boards laminated together.
Can the material be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the three-color result require paint filling or screen printing?
No. Black and blue are integral material layers. Correct engraving depth reveals the selected color without paint filling or printed ink.
Should engraving settings be tested before production?
Yes. A test sample should be used to establish the shallow black-reveal depth and the deeper blue-reveal depth for the selected machine, base material and thickness.
