Three-Layer Engraving Plastic for Control Panels
Color Structure:
Red face / Black middle layer / Green base layerStructure:
True three-layer engraving plastic with two depth-selective reveal colorsBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte red faceProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Machine control panels, operator legend plates, electrical-cabinet status plates, pump and process panels, equipment operating plates and OEM machine labels
Three-Layer Engraving Plastic for Control Panels LYS-RGB001 combines a red face, black middle layer and green base within a total thickness of 1.5 mm. Shallow engraving reveals black for machine legends, warnings and identification; a slightly deeper pass reveals green for selected ready, running or normal-status fields. The colors are integral material layers rather than printed ink or paint fill. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied for CNC and rotary production. Typical B2B uses include machine control panels, operator legend plates, electrical-cabinet status plates, pump and process panels, equipment operating plates and OEM machine labels.
Model:LYS-RGB001
Send Inquiry
Product Description
LYSHIRE MULTI-LAYER SERIES | LYS-RGB001
Three-Layer Engraving Plastic for Control Panels

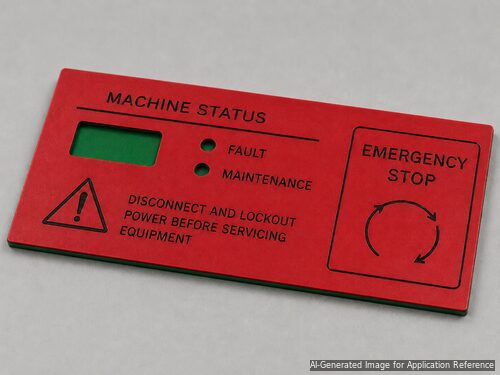

LYSHIRE LYS-RGB001 is a red / black / green three-layer engraving plastic developed for machine control panels, operating-status plates and industrial legend plates. A controlled shallow engraving removes the red face and reveals black; a slightly deeper engraving reaches the green layer. The two reveal depths separate warnings, legends and operating-status fields without screen printing, paint filling or secondary lamination.
Color StructureRed / Black / Green
Depth-Controlled RevealShallow Black / Deeper Green
Total Thickness1.5 mm Three-Layer Sheet
Control-Panel Color Logic
Two Engraving Depths from One Red Surface
Shallow Engraving Reveals Black
Removing only the red face exposes the black middle layer for warnings, switch legends, equipment numbers, borders and operating instructions.
Deeper Engraving Reveals Green
A controlled deeper pass reaches green for ready, running or normal-status fields that must remain visually distinct from black legends.
Integral Color, No Paint Fill
Black and green are material layers inside the sheet, reducing filling, printing and secondary assembly for repeat industrial-panel production.

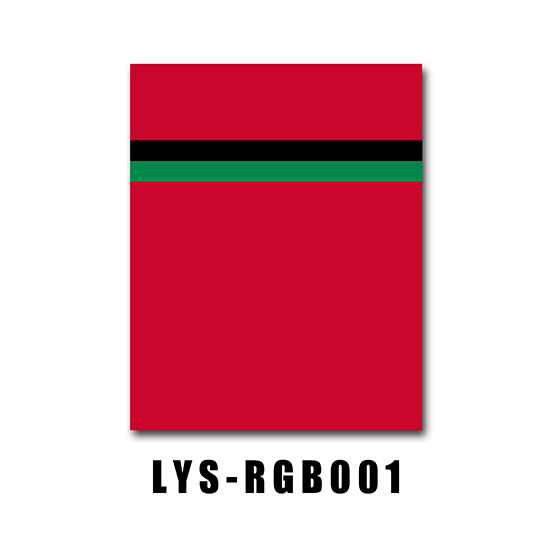

Three Color Layers within a Total Thickness of 1.5 mm
The red face, black middle layer and green base are contained within one finished 1.5 mm sheet. LYS-RGB001 is not three thick boards stacked together. Correct depth control produces the black and green contrast inside a thin professional engraving sheet suitable for flush-mounted panel plates.
Technical Data
Product Specifications
| Model | LYS-RGB001 |
|---|---|
| Color Structure | Red face / Black middle layer / Green base layer |
| Sheet Structure | True three-layer engraving plastic with two depth-selective reveal colors |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte red face |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Machine control panels, operator legend plates, electrical-cabinet status plates, pump and process panels, equipment operating plates and OEM machine labels |
Processing

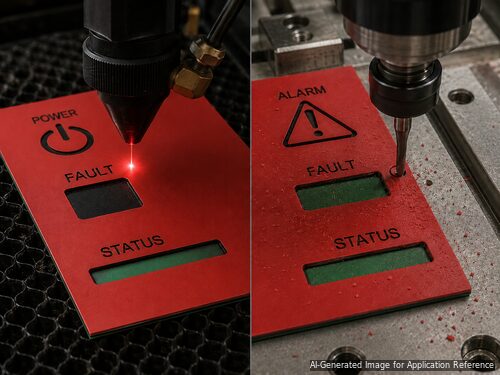

Laser or Rotary Production with Controlled Depth
LYS-RGB001 can be configured with an acrylic base for CO2 laser work or an ABS base for CNC / rotary engraving. The fabricator controls engraving depth to select the black or green reveal. Test settings should be established on the ordered configuration because power, speed, tool geometry and machine condition affect the final depth.
- Shallow pass for black legends, warnings, scales and identification
- Slightly deeper pass for solid green ready, running or normal-status fields
- Routing, drilling, shaped cutting and optional adhesive conversion
Laser and CNC / Rotary Versions Use Different Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the ABS-base version. Do not assume one physical sheet is universal for every machine; confirm the process, equipment and required reveal depths before production.
B2B Applications
Machine Control and Operating-Status Identification

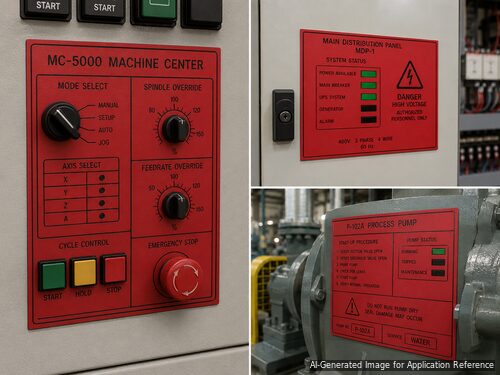

The red face provides a strong panel background, while black and green reveal depths separate operating legends from selected machine-status fields. Typical fabrication includes:
- Machine control-panel and operator-station legend plates
- Electrical-cabinet operating and power-status plates
- Pump, process-line and production-equipment panels
- Start, stop, fault, ready and maintenance identification
- OEM operating, service and machine-instruction plates
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies three-layer engraving plastic to material distributors, panel builders, engraving companies, sign manufacturers and OEM machine fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the red / black / green structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-RGB001 produce black and green from one red face?
A shallow engraving removes the red face and reveals the black middle layer. A slightly deeper engraving passes through the black layer and reveals the green base layer.
Is the three-layer sheet thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the red, black and green layers. It is one thin sheet, not three thick boards laminated together.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the three-color result require paint filling or screen printing?
No. Black and green are integral material layers. Correct engraving depth reveals the selected color without paint filling or printed ink.
Should engraving depths be tested before panel production?
Yes. Test the shallow black-reveal depth and deeper green-reveal depth on the selected machine and base-material configuration before batch production.
