Laserable Multi-Ply Acrylic for Danger Signs
Color Structure:
Brushed silver face / Red middle layer / Black base layerStructure:
True three-layer multi-ply engraving plastic with two depth-selective reveal colorsBase Material:
Laser-grade acrylic for CO2 Laser orders; ABS configuration available for CNC / Rotary ordersSurface Finish:
Fine directional brushed silver metallic-effect faceProcessing Compatibility:
CO2 laser engraving and cutting on acrylic; CNC / rotary engraving and routing on the separately configured ABS versionTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Danger signs, main-disconnect plates, machine hazard labels, high-temperature equipment plates, critical shutdown identification and OEM safety signage
Laserable Multi-Ply Acrylic for Danger Signs LYS-SBR077 combines a fine brushed silver face, red middle layer and black base within a total thickness of 1.5 mm. Shallow engraving reveals red for danger headers, shutdown fields and critical hazard accents; a deeper pass reveals black for signal words, pictograms, instructions and equipment codes. The colors are integral material layers rather than printed ink or paint fill. The primary acrylic-base version is supplied for CO2 laser orders, while an ABS-base version with the same color structure can be supplied for CNC and rotary production. Typical B2B uses include main-disconnect plates, machine hazard signs, high-temperature equipment labels, critical shutdown identification and OEM safety signage.
Model:LYS-SBR077
Send Inquiry
Product Description
LYSHIRE LASER MULTI-PLY SERIES | LYS-SBR077
Laserable Multi-Ply Acrylic for Danger Signs
LYSHIRE LYS-SBR077 is a brushed silver / red / black three-layer engraving acrylic developed for laser-engraved danger signs, main-disconnect plates and critical equipment identification. A controlled shallow pass removes the brushed silver face and reveals the red middle layer. A deeper pass reaches the black base layer, allowing red hazard fields and black signal words, pictograms or technical information to be produced within one thin sheet without screen printing, paint filling or secondary lamination.
Color StructureBrushed Silver / Red / Black
Depth-Controlled RevealShallow Red / Deeper Black
Primary Search RouteLaserable Multi-Ply Acrylic
Multi-Ply Engraving Logic
Red Hazard Fields and Black Information from Two Laser Depths
Shallow Engraving Reveals Red
Removing only the brushed silver face exposes the red middle layer for danger headers, shutdown fields, critical borders and selected hazard accents.
Deeper Engraving Reveals Black
A controlled deeper pass reaches the black base for signal words, hazard pictograms, electrical information, asset codes and operating restrictions.
Integral Color, No Paint Fill
Red and black are continuous layers inside the sheet, reducing printing, color filling and secondary assembly for repeat industrial sign production.

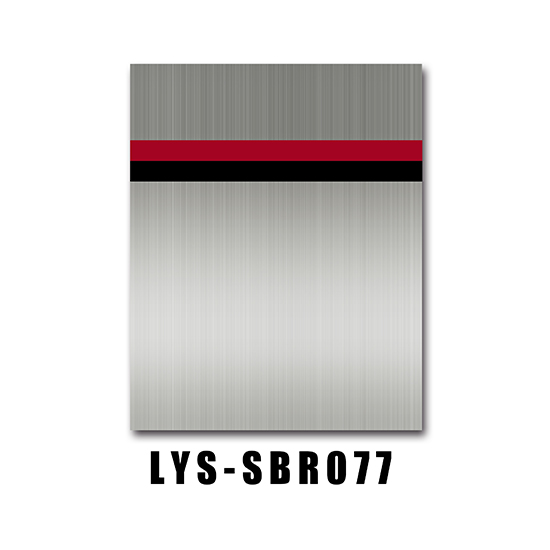

Three Integrated Color Layers within a Total Thickness of 1.5 mm
The brushed silver face, red middle layer and black base are contained within one finished 1.5 mm sheet. LYS-SBR077 is not three thick boards stacked together. Correct depth control produces red and black information inside a thin multi-ply acrylic suitable for flush-mounted danger signs and critical equipment plates.
Technical Data
Product Specifications
| Model | LYS-SBR077 |
|---|---|
| Color Structure | Brushed silver face / Red middle layer / Black base layer |
| Sheet Structure | True three-layer multi-ply engraving plastic with two depth-selective reveal colors |
| Base Material | Laser-grade acrylic for CO2 Laser orders; ABS configuration available for CNC / Rotary orders |
| Surface Finish | Fine directional brushed silver metallic-effect face |
| Processing Compatibility | CO2 laser engraving and cutting on the acrylic version; CNC / rotary engraving and routing on the separately configured ABS version |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Danger signs, main-disconnect plates, machine hazard labels, high-temperature equipment plates, critical shutdown identification and OEM safety signage |

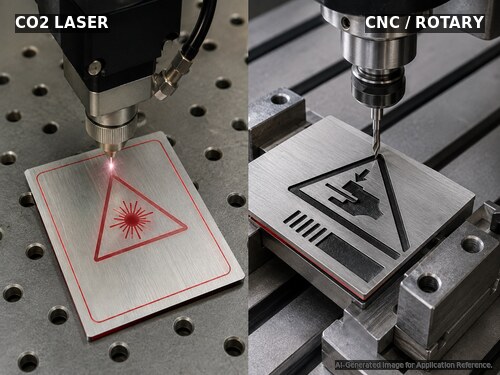

Processing
Laser-Grade Acrylic with Controlled Multi-Depth Engraving
The primary LYS-SBR077 configuration uses an acrylic base for CO2 laser engraving and cutting. The fabricator controls engraving depth to select the red or black reveal. Test settings should be established on the ordered sheet because power, speed, focus, lens condition and artwork density affect the final depth.
- Shallow pass for red danger headers, shutdown fields and critical borders
- Deeper pass for black signal words, pictograms, instructions and equipment codes
- Vector cutting, drilling, shaped conversion and optional adhesive backing
Laser Acrylic and CNC / Rotary ABS Are Separate Configurations
The product name targets the laserable acrylic purchasing route. For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the separately configured ABS-base version with the same brushed silver / red / black color structure. Do not assume one physical sheet is universal for every machine.

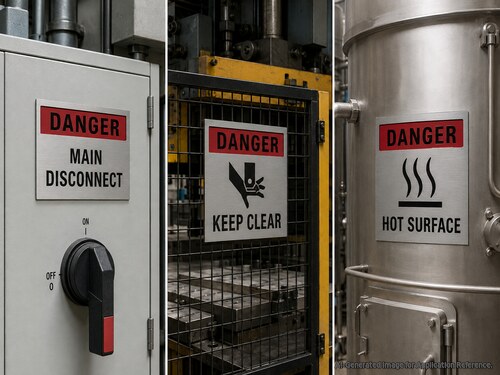

B2B Applications

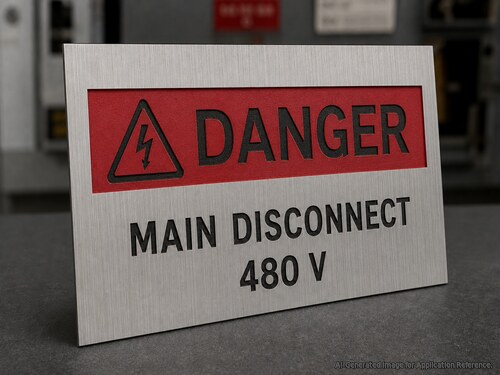

Danger, Shutdown and Critical Equipment Identification
The brushed silver face provides a professional equipment-grade appearance, while red and black reveal depths separate high-priority hazard fields from technical content. Typical fabrication includes:
- Main-disconnect and electrical isolation danger plates
- Machine access, pinch-point and guarded-area danger signs
- High-temperature equipment and restricted-access labels
- Emergency shutdown and critical operating identification
- OEM equipment plates requiring two information levels without printing
Danger-Sign Compliance Depends on the Finished Design
The red and black layers support high-contrast danger-sign fabrication, but the finished signal word, pictogram, dimensions, placement and color requirements must be verified for the customer's application and destination market. Material color capability alone does not certify a completed sign to OSHA, ANSI, ISO or another safety standard.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies laserable multi-ply acrylic to material distributors, engraving companies, safety-sign manufacturers, equipment builders and industrial label fabricators. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the brushed silver / red / black structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-SBR077 produce red and black from one brushed silver face?
A shallow engraving removes the brushed silver face and reveals the red middle layer. A deeper engraving passes through the red layer and reveals the black base layer.
Can black text be produced inside a red danger field?
Yes. First engrave the red field to the middle-layer depth, then use a deeper controlled pass for black text or symbols inside that field. Test both depths before batch production.
Is the three-layer sheet thicker than a normal engraving sheet?
No. The total finished thickness is 1.5 mm, including the brushed silver, red and black layers. It is one thin sheet, not three thick boards laminated together.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the multi-color result require printing or paint filling?
No. Red and black are integral material layers. Correct engraving depth reveals the selected color without printed ink or paint fill.
