Custom Color Tri-Layer Engraving Plastic Sheet
Color Structure:
Matte white face / Black middle layer / Dark blue base layerStructure:
True tri-layer front-engraving plastic sheetBase Material:
Acrylic for CO2 Laser orders; separately configured ABS for CNC / Rotary ordersReveal Logic:
Shallow engraving reveals black; deeper engraving reveals blueSurface Finish:
Smooth matte, low-glare white faceStandard Thickness:
1.5 mm; other constructions subject to project confirmationSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
OEM plates, facility markers, serial tags, logos, pictograms and coordinated multi-level identification
Custom Color Tri-Layer Engraving Plastic Sheet LYS-WBB020 combines a matte white face, black middle layer and dark blue base in one true three-layer front-engraving material. Shallow engraving removes the white cap and reveals recessed black information; a deeper pass reveals recessed blue graphics or secondary information. The page serves B2B buyers requiring specified layer order, multi-depth color hierarchy and repeat custom production. Acrylic is configured for CO2 Laser orders, while ABS is supplied separately for CNC and rotary engraving.
Model:LYS-WBB020
Send Inquiry
Product Description
LYSHIRE CUSTOM TRI-LAYER SERIES | LYS-WBB020
Custom Color Tri-Layer Engraving Plastic Sheet

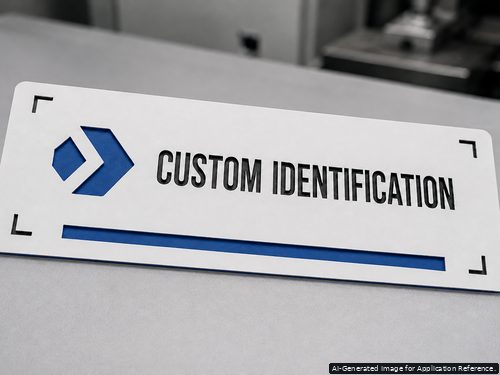

LYSHIRE LYS-WBB020 is a true white-face / black-middle / blue-base tri-layer engraving plastic sheet for buyers who require a specified layer order and two reveal colors in one front-engraved material. A shallow pass reveals recessed black information; a deeper pass reveals recessed blue graphics or secondary information.

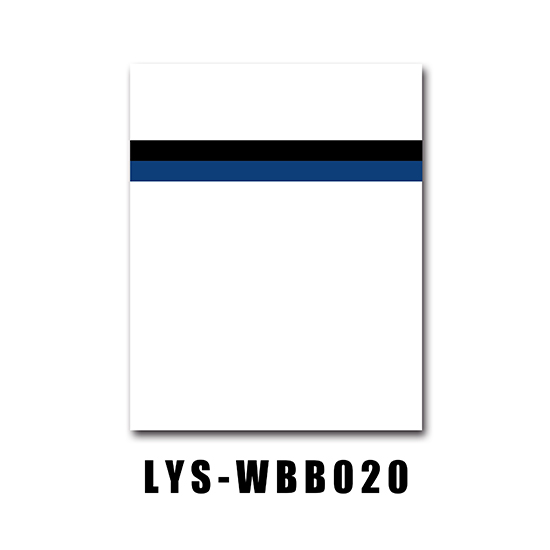

Layer OrderWhite / Black / Blue
Depth 1Shallow Black Reveal
Depth 2Deeper Blue Reveal
Custom Construction
Specify Color Order, Reveal Depth and Processing Route
True Three-Layer Sheet
The black and blue results come from separate material layers, not printed ink, paint filling or applied vinyl.
Two Reveal Levels
Controlled engraving depth separates primary black information from deeper blue logos, bars or category marks.
B2B Color Programs
The page is built for distributors, fabricators and OEM buyers requesting defined tri-layer color sequences for repeat production.
One Sheet Replaces Secondary Coloring Steps
Because both contrast colors are built into the 1.5 mm sheet, fabricators can create coordinated multi-color identification by changing engraving depth. The construction reduces reliance on paint filling or separately laminated color pieces, subject to the final artwork and production method.
Technical Data
LYS-WBB020 Product Parameters
| Model | LYS-WBB020 |
|---|---|
| Color Structure | Matte white face / Black middle layer / Dark blue base layer |
| Structure | True tri-layer, front-engraving plastic sheet |
| Base Material | Acrylic configuration for CO2 Laser orders; ABS configuration supplied separately for CNC / Rotary orders |
| Reveal Logic | Shallow engraving reveals black; deeper engraving reveals blue |
| Standard Thickness | 1.5 mm; other constructions subject to project confirmation |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | OEM identification plates, facility markers, serial tags, logos, pictograms and coordinated multi-level information |

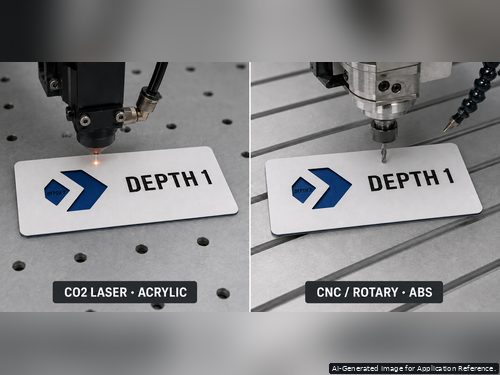

Process Selection
Laser and CNC Orders Use Separate Base Configurations
Confirm the engraving and cutting equipment before production so the sheet construction matches the intended process.
- CO2 laser engraving and cutting: specify the acrylic-base configuration
- CNC or rotary engraving, routing and drilling: specify the ABS-base configuration
- Test both shallow and deep settings before batch production
Do Not Treat One Physical Sheet as Universal
The white / black / blue appearance can be supplied with different base constructions. Acrylic and ABS versions are separate order configurations; confirm machine type, cutting method and required detail before quotation and sampling.

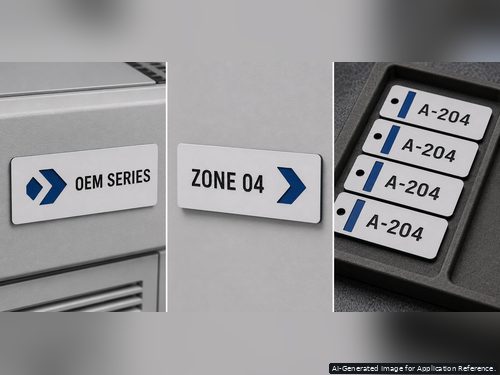

B2B Applications
Build Coordinated Identification from One Color Sequence
- OEM series and branded equipment plates
- Facility zones and directional identification
- Batch serial, category and asset tags
- Logos, pictograms and two-level information hierarchy
- Custom-cut identification parts for repeat programs
Engraving Depth Must Be Validated on the Actual Machine
Final shallow and deep settings depend on laser power, speed, focus, cutter geometry, spindle speed, feed, hold-down method and artwork detail. Approve both reveal levels on a sample before bulk conversion.
Wholesale Custom Supply
Tri-Layer Color Sequences, Custom Cutting and Qualified Samples
LYSHIRE supplies engraving-material distributors, industrial label manufacturers, sign fabricators and equipment OEMs. Mixed products can be arranged within the standard 500-sheet MOQ, subject to material, thickness, color construction and packing requirements. Qualified B2B buyers can request samples to verify the layer order and both reveal depths.
For quotation, provide the required color sequence, sheet size, thickness, quantity, machine type, artwork depth logic, adhesive option and destination market.
Frequently Asked Questions
Custom Color Tri-Layer Engraving Plastic Sheet FAQ
Are the black and blue details printed on the white face?
No. Shallow engraving exposes the black middle layer, while a deeper pass exposes the blue base layer.
Can the layer order be specified for a B2B project?
Yes. Provide the required surface, middle and base colors, processing method, thickness, quantity and sample-approval requirements for feasibility review.
Is the same sheet used for laser and rotary engraving?
No. The acrylic-base Laser version and ABS-base CNC / Rotary version are configured separately.
What information is needed for a quotation?
Provide layer colors in order, size, thickness, quantity, equipment, cutting method, artwork depth plan, adhesive requirement and delivery destination.
