Home > Products > Structure System > Three Ply Engraving Sheets > Red Green Indicator Tri-Layer Engraving Sheet
Red Green Indicator Tri-Layer Engraving Sheet
Color Structure:
Matte white face / Red middle layer / Green base layerStructure:
True tri-layer front-engraving sheet with two depth-selective reveal colorsBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte white faceProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to orderTotal Thickness:
1.5 mm including all three color layersSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableTypical Applications:
Start-stop legends, machine status plates, valve open-closed indicators, equipment ready-fault signs and multi-state operating labels
Red Green Indicator Tri-Layer Engraving Sheet LYS-WGR025 combines a matte white face, red middle layer and green base in one true 1.5 mm front-engraving material. Shallow engraving reveals recessed red status information, while a slightly deeper pass reveals recessed green information. The colors are integral layers rather than printed ink, applied film or paint fill. An acrylic-base version is supplied for CO2 laser orders, while an ABS-base version is supplied separately for CNC and rotary production. Typical B2B uses include start-stop legends, valve open-closed indicators, equipment ready-fault plates, machine status boards and repeat OEM operating labels.
Model:LYS-WGR025
Send Inquiry
Product Description
LYSHIRE STATUS-INDICATOR SERIES | LYS-WGR025
Red Green Indicator Tri-Layer Engraving Sheet
Red Green Indicator Tri-Layer Engraving Sheet LYS-WGR025 combines a matte white face, red middle layer and green base layer in one true 1.5 mm front-engraving material. A controlled shallow pass reveals recessed red status information, while a slightly deeper pass reveals recessed green information. The integral color sequence supports start-stop legends, equipment condition indicators and open-closed status plates without printed ink, vinyl lettering or paint filling.
Color StructureWhite / Red / Green
Depth-Controlled RevealShallow Red / Deeper Green
Total Thickness1.5 mm Tri-Layer Sheet
Status-Indicator Color Logic
Red and Green Information from One White Face

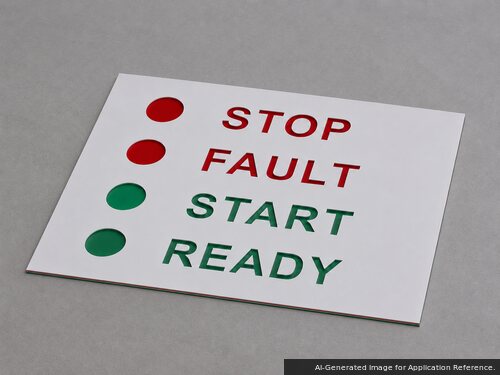

Shallow Engraving Reveals Red
Removing the white face to the first controlled depth exposes the red middle layer for stop, closed, fault, alarm or other project-defined status information.
Deeper Engraving Reveals Green
A slightly deeper pass reaches the green base layer for start, open, ready, normal or other project-defined operating states.
Two Status Colors without Paint Fill
Both reveal colors are integral material layers. Correct depth control creates recessed red and green content without printing, applied film or secondary color filling.

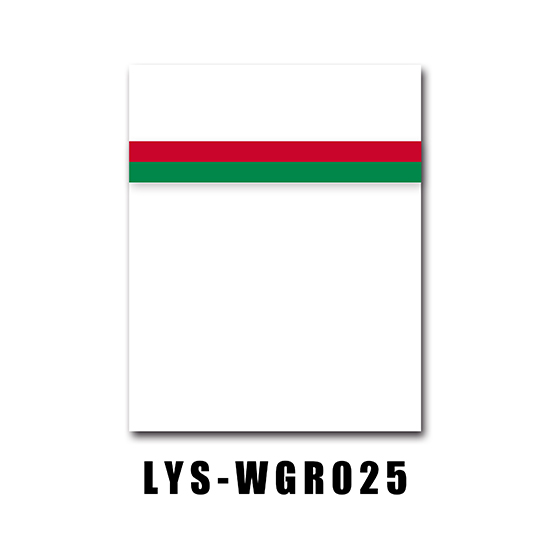

Three Integral Colors within a Total Thickness of 1.5 mm
The white face, red middle layer and green base are contained within one finished 1.5 mm sheet. LYS-WGR025 is not three thick boards stacked together. Its two reveal colors are selected by engraving depth, allowing a fabricator to build compact multi-status legends and indicator plates from one thin professional engraving material.
Technical Data
LYS-WGR025 Product Parameters
| Model | LYS-WGR025 |
|---|---|
| Color Structure | Matte white face / Red middle layer / Green base layer |
| Sheet Structure | True tri-layer front-engraving sheet with two depth-selective reveal colors |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte white face |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving and routing, configured according to order |
| Total Thickness | 1.5 mm including all three color layers |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Typical Applications | Start-stop legends, machine status plates, valve open-closed indicators, equipment ready-fault signs and multi-state operating labels |
Processing

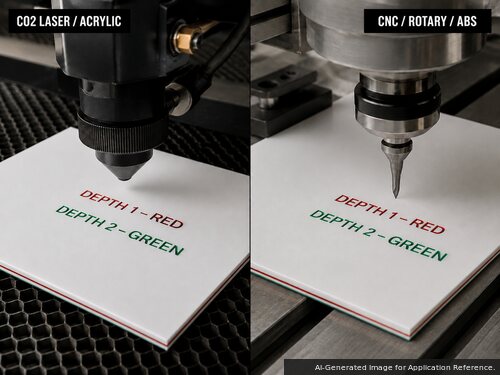

Separate Laser and CNC / Rotary Configurations
LYS-WGR025 is supplied with an acrylic base for CO2 laser work or an ABS base for CNC / rotary engraving. The fabricator controls depth to select the red middle layer or green base layer. Test settings should be established on the ordered configuration because power, speed, tool geometry and machine condition affect the final reveal depth.
- Shallow pass for recessed red words, symbols and status fields
- Slightly deeper pass for recessed green words, symbols and status fields
- Depth tests before batch production to confirm clean color separation
One Appearance, Two Process-Specific Base Materials
For CO2 laser engraving and cutting, specify the acrylic-base version. For CNC or rotary engraving, routing and drilling, specify the ABS-base version. Do not assume one physical sheet is universal for every machine; confirm the process, equipment, required reveal depths and finished-sign specification before production.
B2B Applications

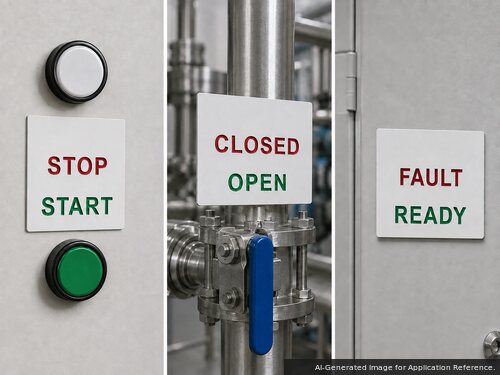

Operational Status and Equipment Indicator Plates
The white face creates a neutral information background, while the red and green reveal depths separate two operating states without secondary coloring. Typical fabrication includes:
- Start-stop legends beside push buttons and selector switches
- Valve open-closed and flow-condition indicator plates
- Equipment ready-fault, normal-alarm and run-stop identification
- Machine status boards and compact multi-state operating labels
- OEM panels requiring repeatable red and green recessed information
Red and Green Meanings Remain Project-Specific
LYS-WGR025 provides a white, red and green material structure; it does not define the legal or technical meaning of each color. The sign fabricator and end user must verify the required wording, symbols, color assignment, dimensions, placement and compliance rules for the destination machine, facility and market.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies tri-layer engraving sheet to engraving-material distributors, industrial sign manufacturers, control-panel fabricators and OEM identification suppliers. Mixed products can be arranged within the standard 500-sheet MOQ, subject to base material, thickness and packing requirements. Qualified B2B buyers can request samples to verify the white / red / green structure and establish both engraving depths before bulk purchasing.
For an accurate quotation, provide the sheet size, quantity, processing method, adhesive requirement and destination market.
Buyer Questions
Frequently Asked Questions
How does LYS-WGR025 produce red and green information from one white face?
A shallow engraving removes the white face and reveals the red middle layer. A controlled slightly deeper pass reaches the green base layer. Both colors are recessed integral layers.
Is the physical layer order white / red / green?
Yes. The matte white face is above the red middle layer, and the green layer is deeper. This is why shallow engraving reveals red and deeper engraving reveals green.
Is LYS-WGR025 three thick sheets laminated together?
No. The total finished thickness is 1.5 mm, including the white, red and green layers. It is one thin tri-layer engraving sheet.
Can it be supplied for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2 laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Does the three-color result require printed ink or paint filling?
No. Red and green are integral material layers, and white is the original face. Correct depth control creates the three-color layout without printing or paint filling.
